Radio/Stereo

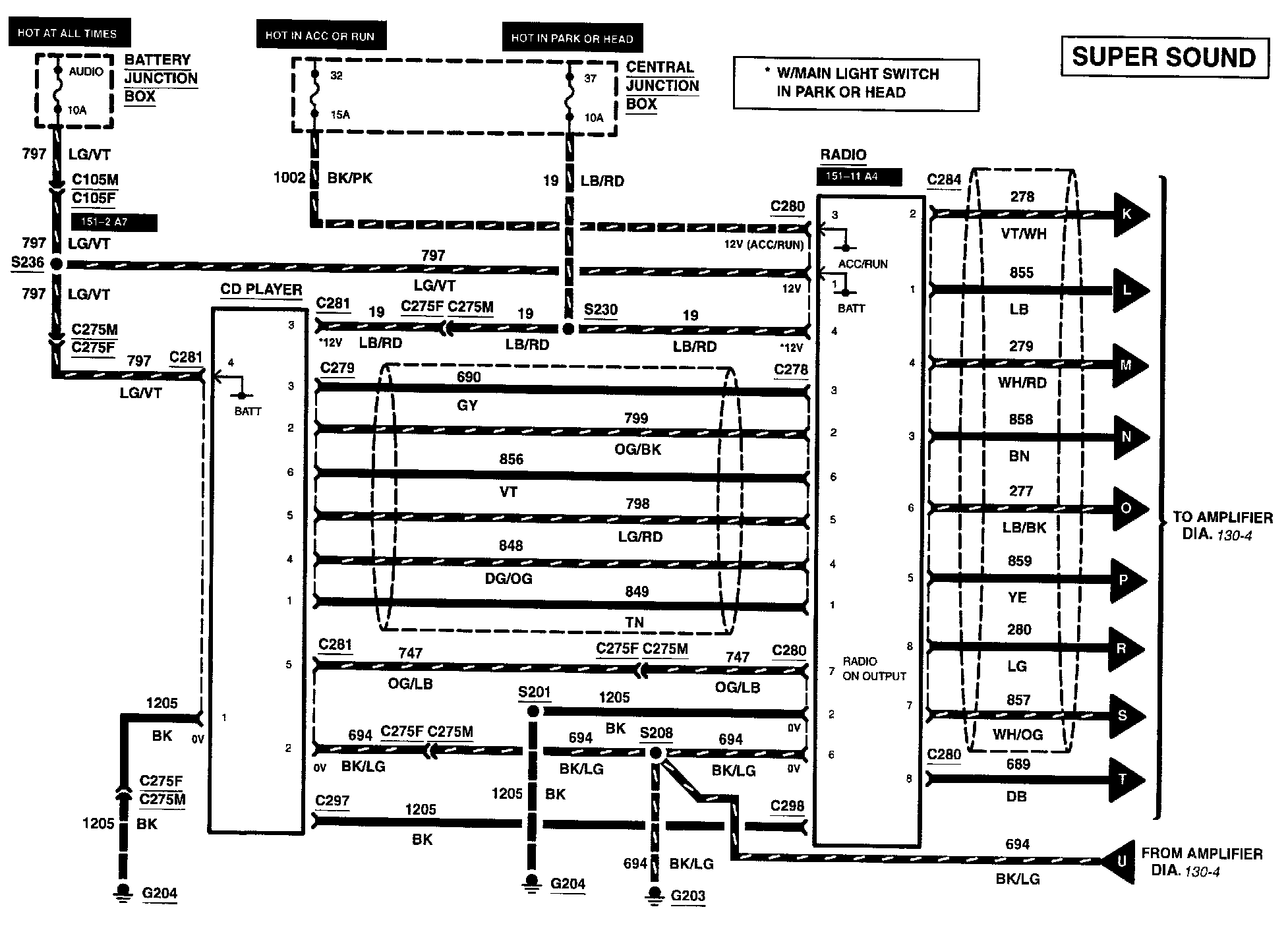

Diagram 130-1:

Battery Junction Box
Central Junction Box
Compact Disc Player
Fuse 32
Fuse 37
Fuse AUDIO
Radio

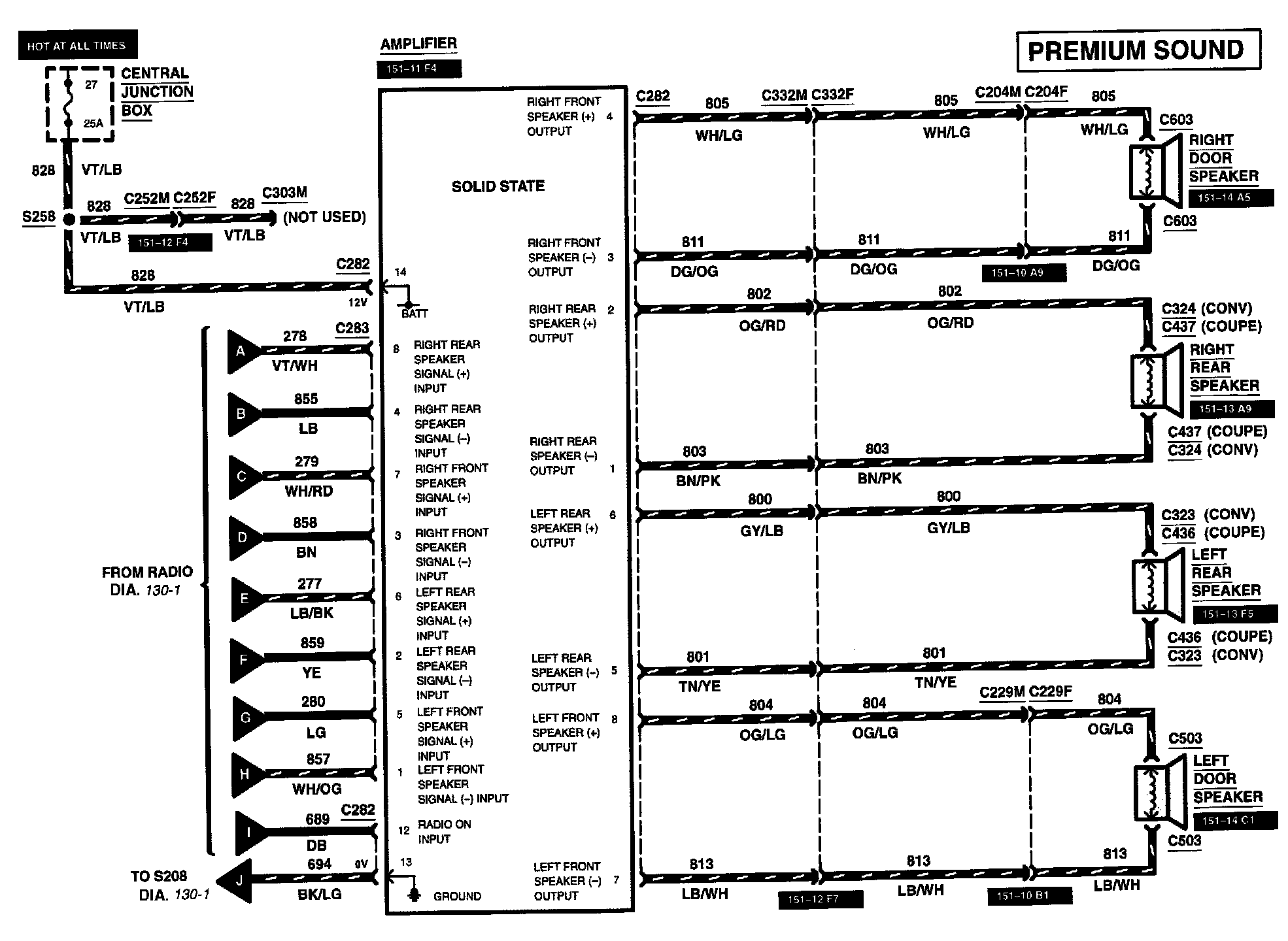

Diagram 130-2:

Amplifier
Central Junction Box
Fuse 27
Left Door Speaker
Left Rear Speaker
Right Door Speaker
Right Rear Speaker

Diagram 130-3:

Battery Junction Box
Compact Disc Player
Central Junction Box
Fuse 32
Fuse 37
Fuse AUDIO
Radio

Diagram 130-4:

Amplifier
Central Junction Box
Fuse 27
Left Door Speaker
Left Rear Speaker
Right Door Speaker
Right Rear Speaker

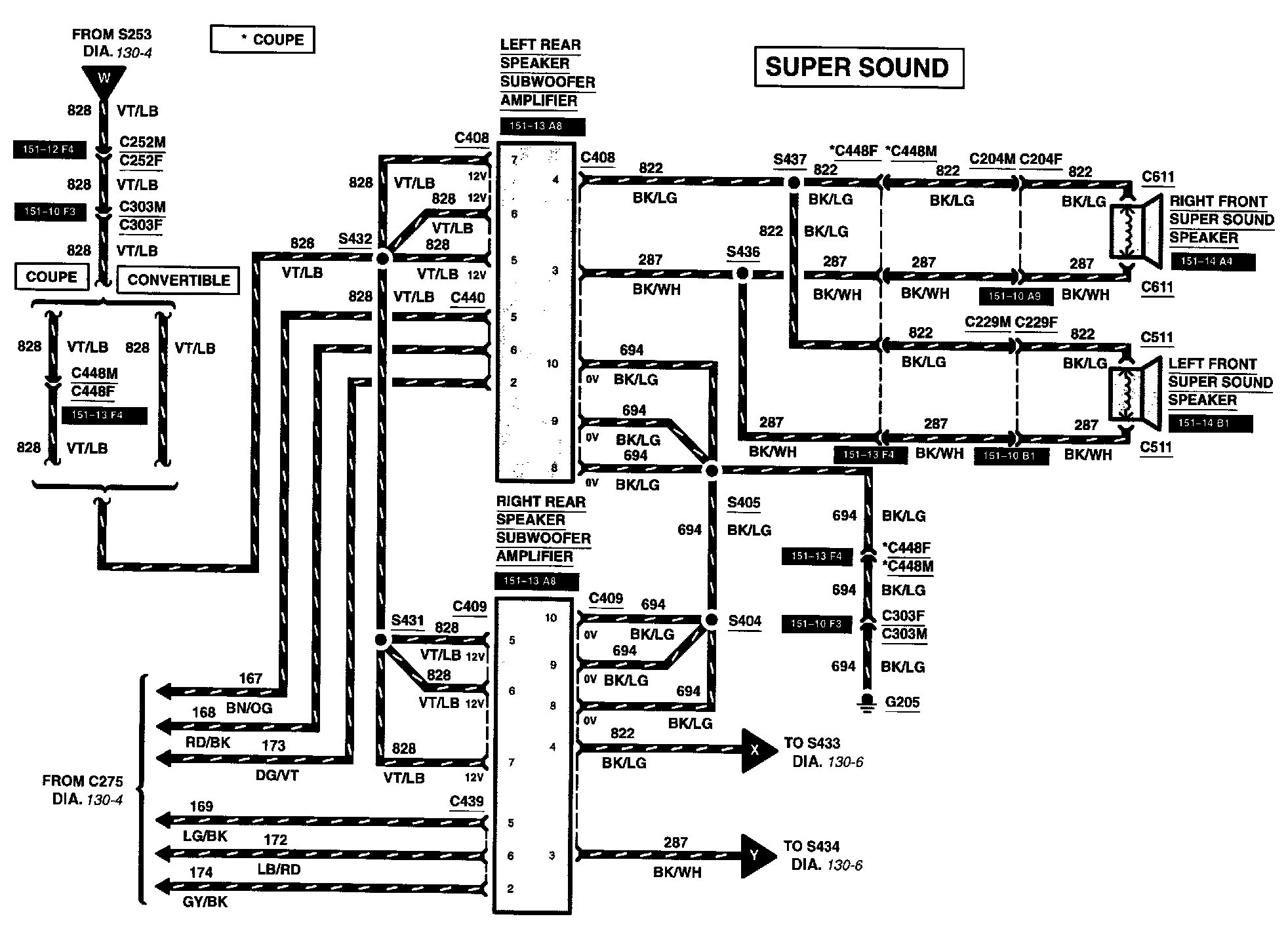

Diagram 130-5:

Left Front Super Sound Speaker
Left Rear Speaker Subwoofer Amplifier
Right Front Super Sound Speaker
Right Rear Speaker Subwoofer Amplifier

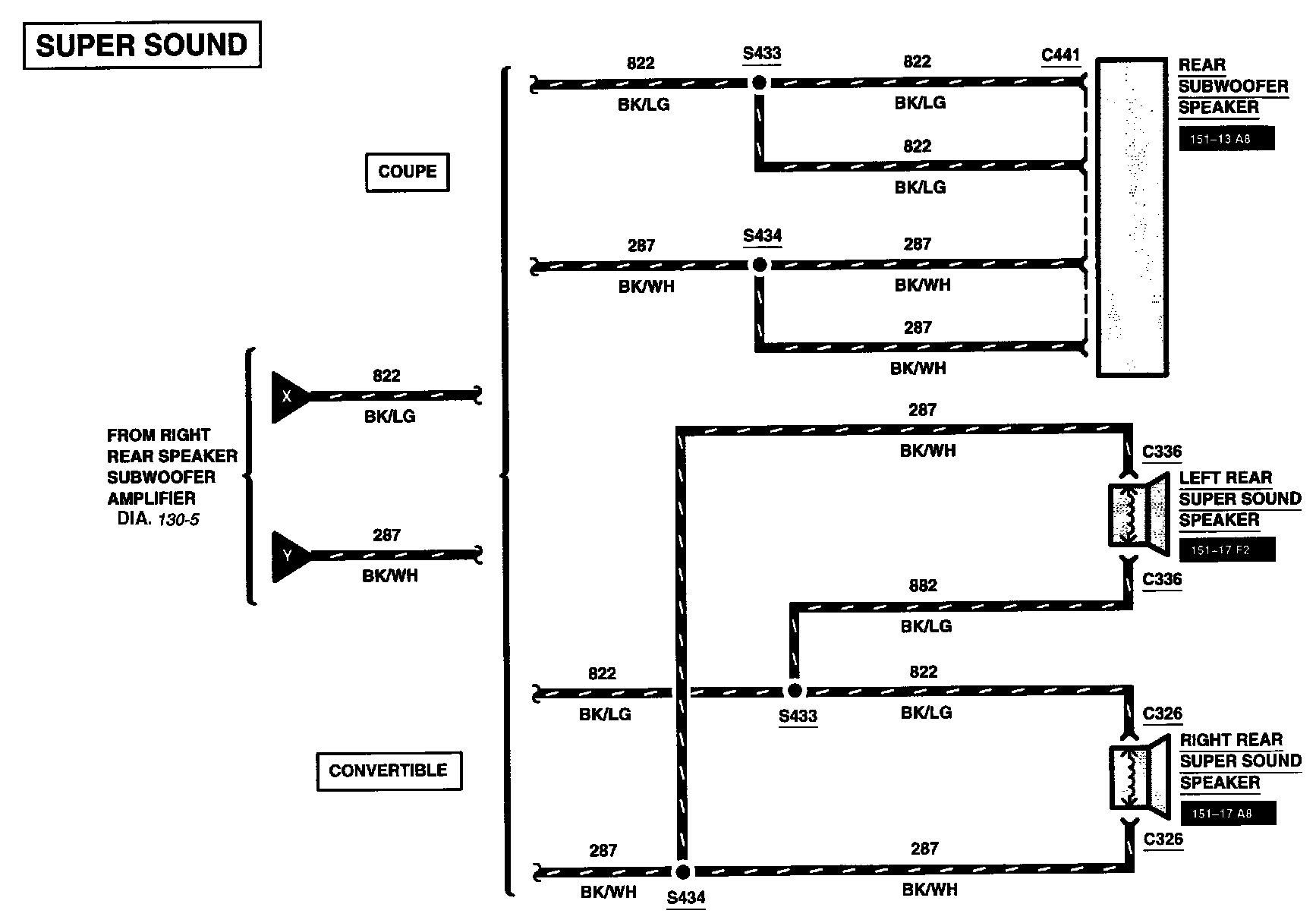

Diagram 130-6:

Left Rear Super Sound Speaker
Rear Subwoofer Speaker
Right Rear Super Sound Speaker
