System Diagram

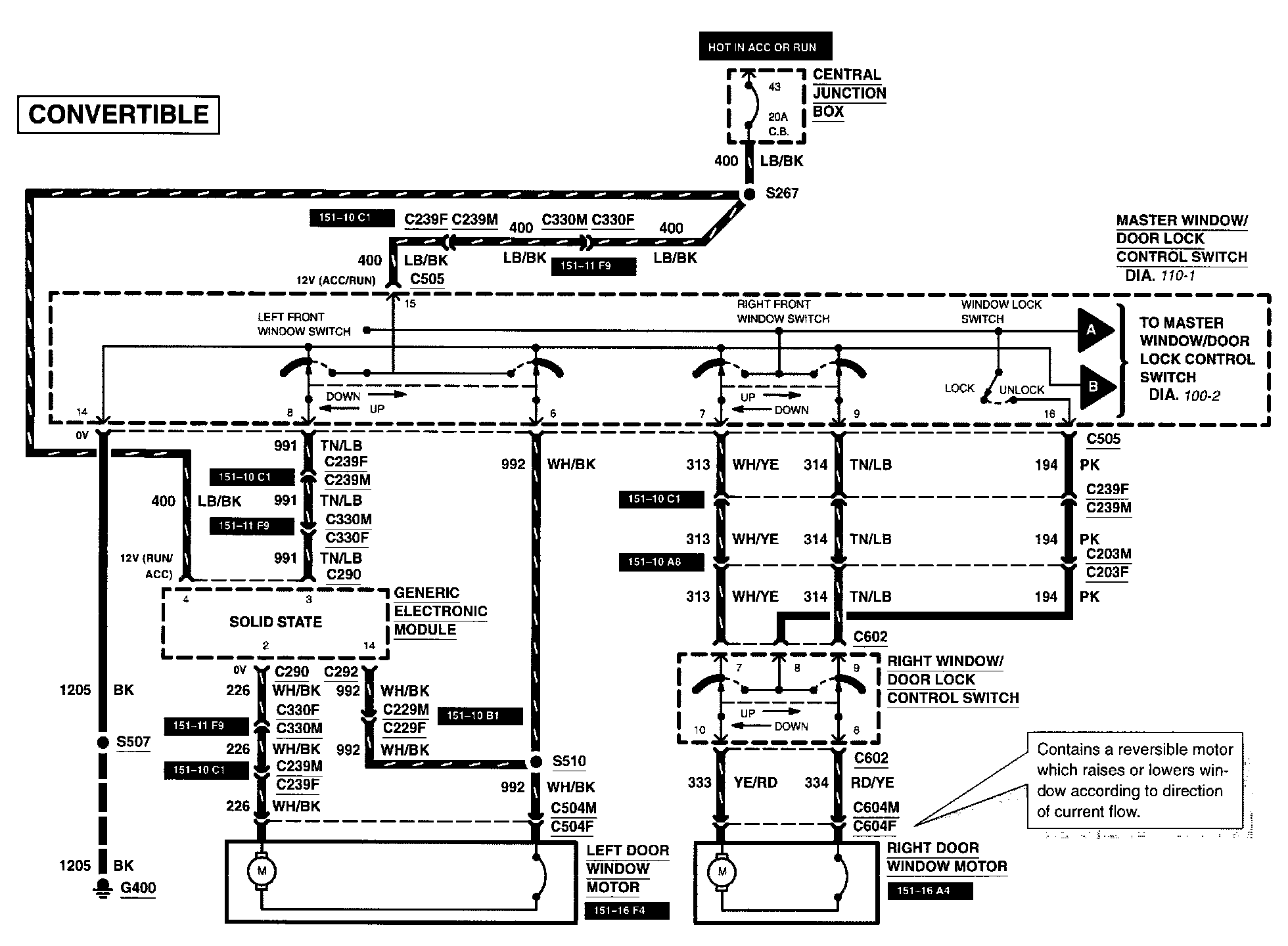

Diagram 100-1:

Central Junction Box
Circuit Breaker 43
Generic Electronic Module
Left Door Window Motor
Left Front Window Switch
Master Window/Door Lock Control Switch
Right Door Window Motor
Right Front Window Switch
Right Window/Door Lock Control Switch
Window Lock Switch

Diagram 100-2:

Left Rear Window Motor
Left Rear Window Switch
Master Window/Door Lock Control Switch
Right Rear Window Motor
Right Rear Window Switch

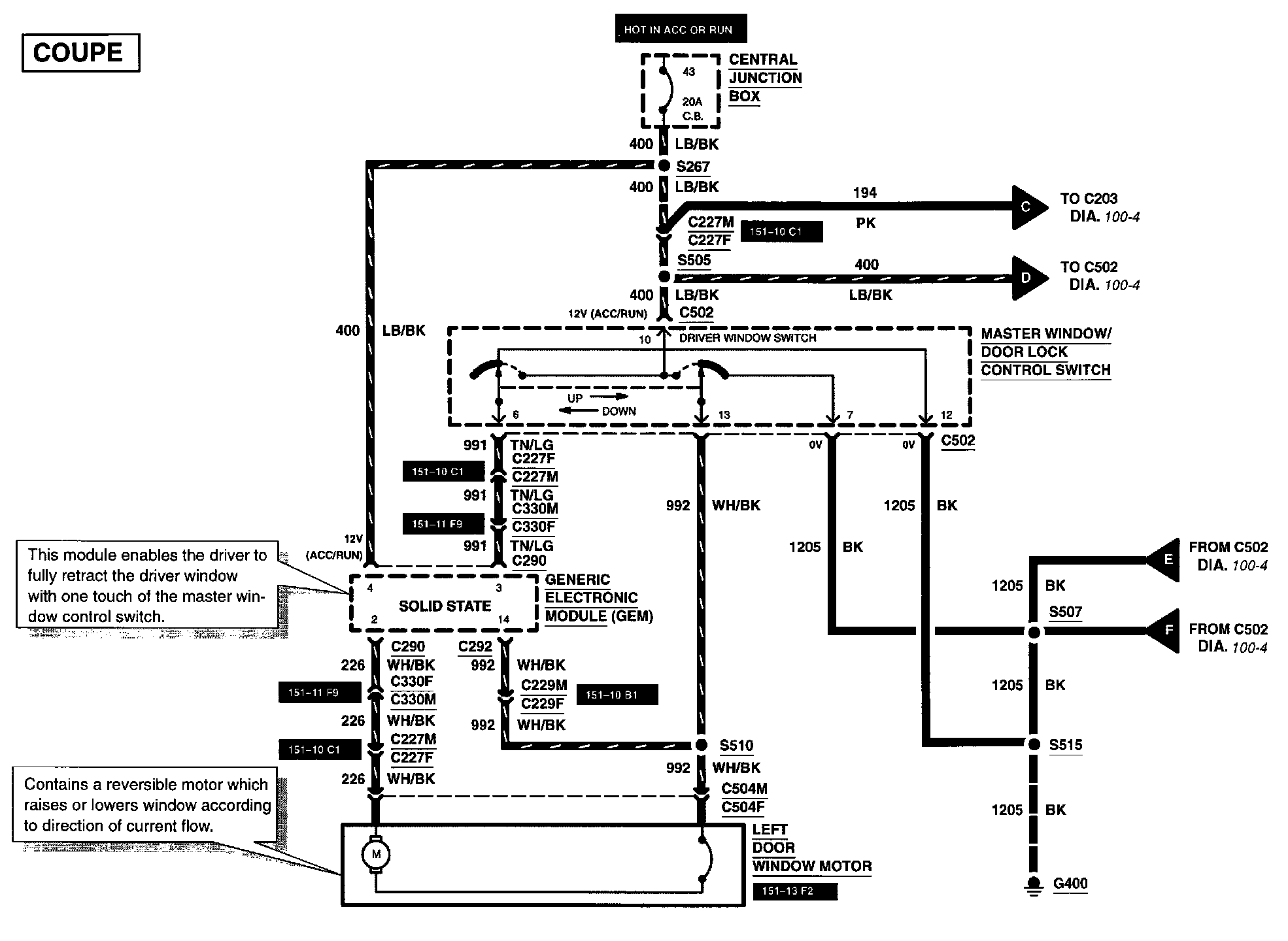

Diagram 100-3:

Central Junction Box
Circuit Breaker 43
Driver Window Switch
Generic Electronic Module
Left Door Window Motor
Master Window/Door Lock Control Switch

Diagram 100-4:

Master Window/Door Lock Control Switch
Passenger Window Switch
Right Door Window Motor
Right Window/Door Lock Control Switch
