Blower Motor Resistor: Description and Operation

The heater blower motor switch resistor has the following features:

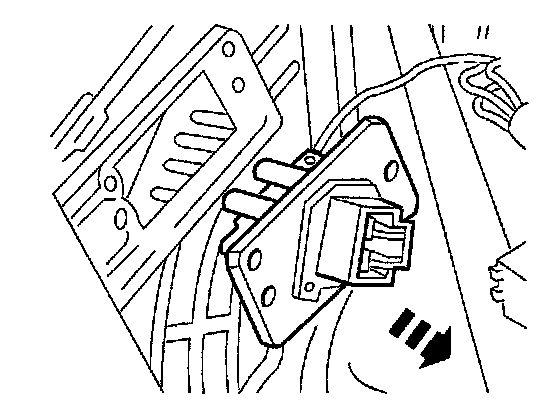

- The assembly is located on the passenger side of the plenum assembly behind the glove compartment
- Three resistance elements are mounted on the resistor board to provide four A/C blower motor speeds.
- Depending on the heater blower motor switch position, series resistance is added or bypassed in the A/C blower motor circuit to decrease or increase A/C blower motor speed.
- An overheating protective device (thermal limiter) will open the resistor coil circuit when the temperature reaches 105°C - 110°C (221°F - 230°F), interrupting the blower motor operation in all speeds except HI.
- The thermal limiter cannot be reset and is not serviceable.
