Blower Motor: Service and Repair

REMOVAL

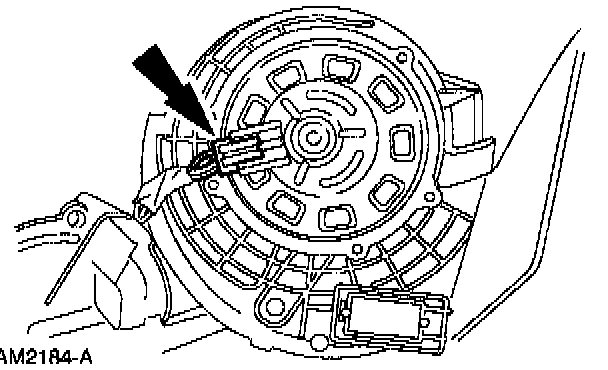

1. Disconnect the jumper wire.

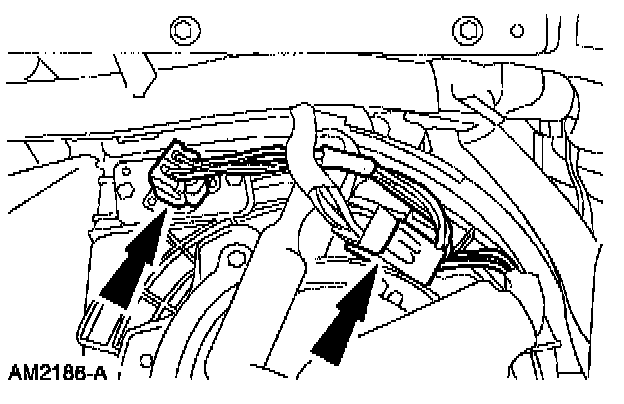

2. Disconnect the main harness.

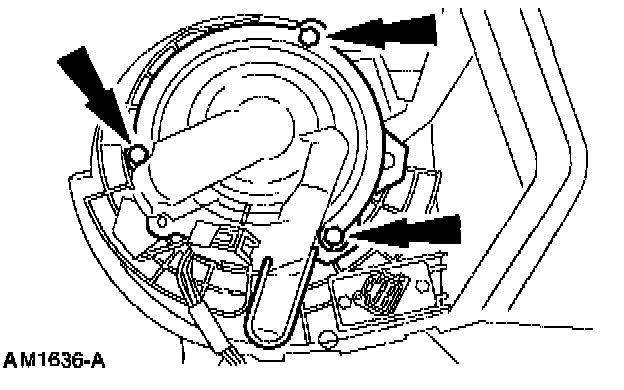

3. Remove the screws.

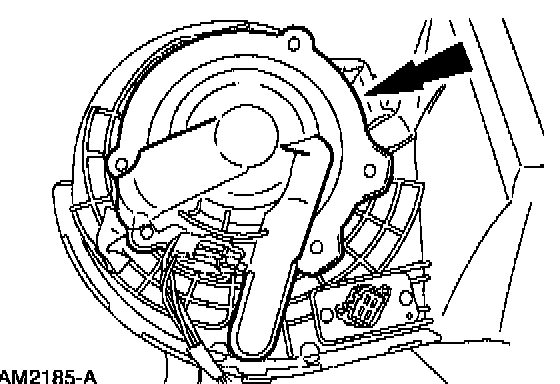

4. Separate the cover from the motor.

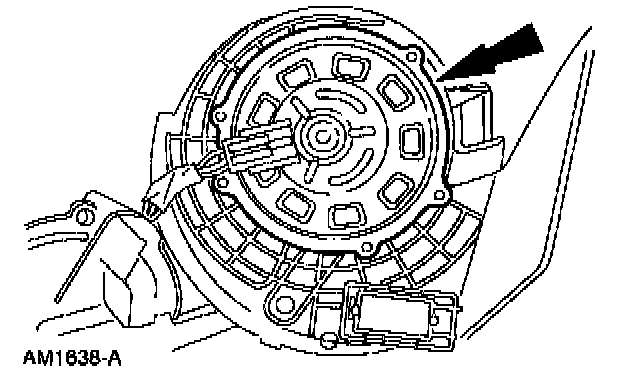

5. Separate the motor from the housing.

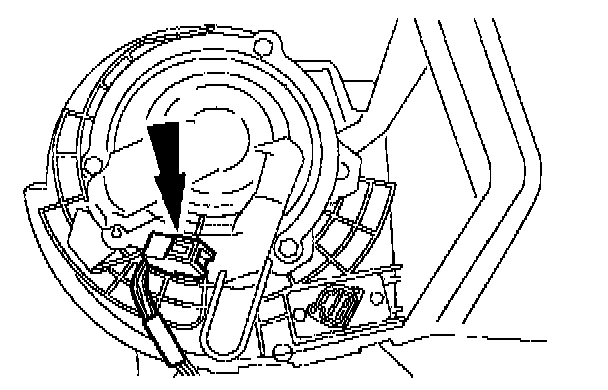

6. Disconnect the jumper from the motor.
- Remove the blower motor.

INSTALLATION
1. To install, reverse the removal procedure.
