Test A: Incorrect/Erratic Direction Of Airflow From Outlet(s)
Test A: Incorrect/Erratic Direction Of Airflow From Outlet(s)
A1 - A2:

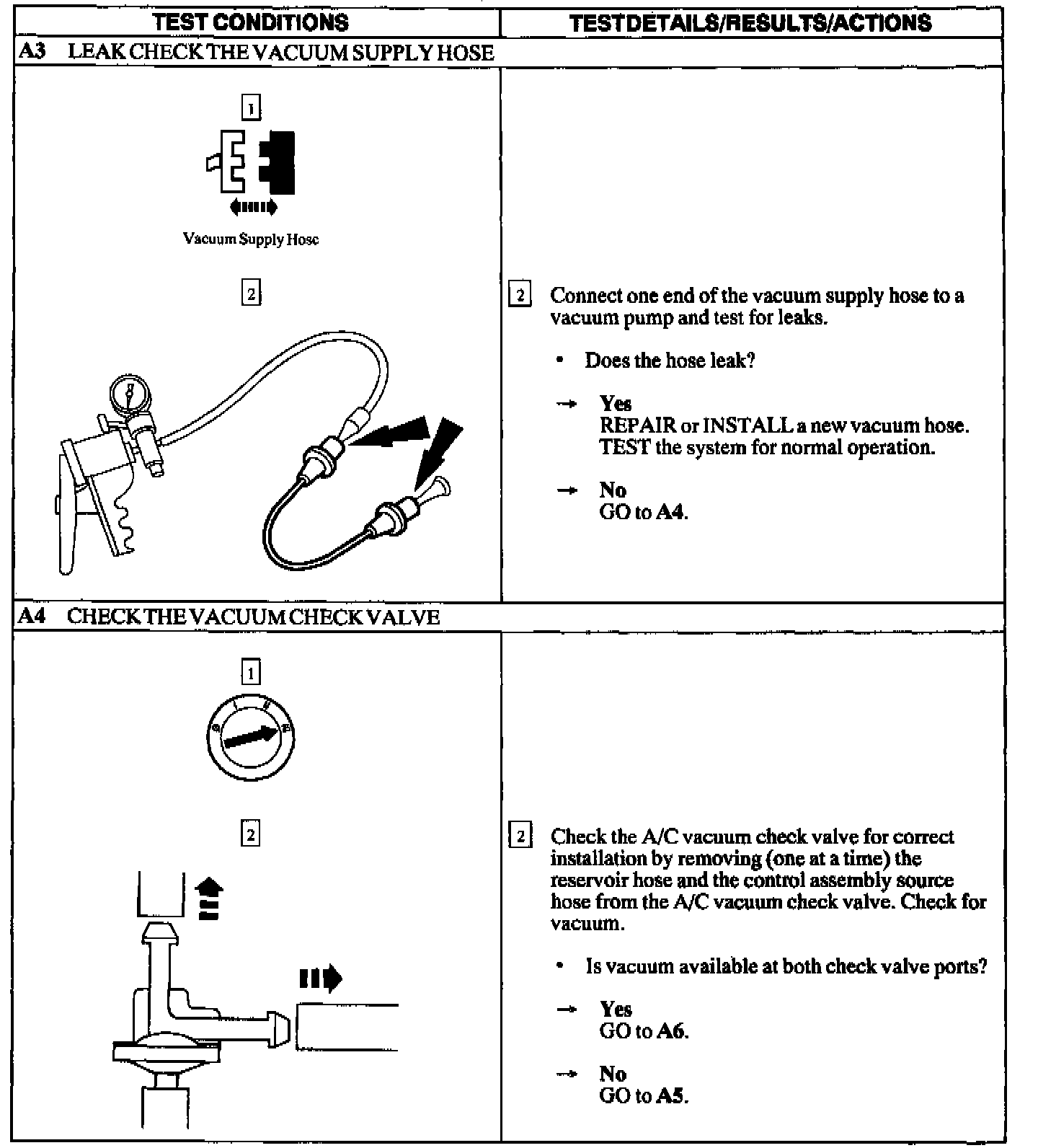

A3 - A4:
A5:

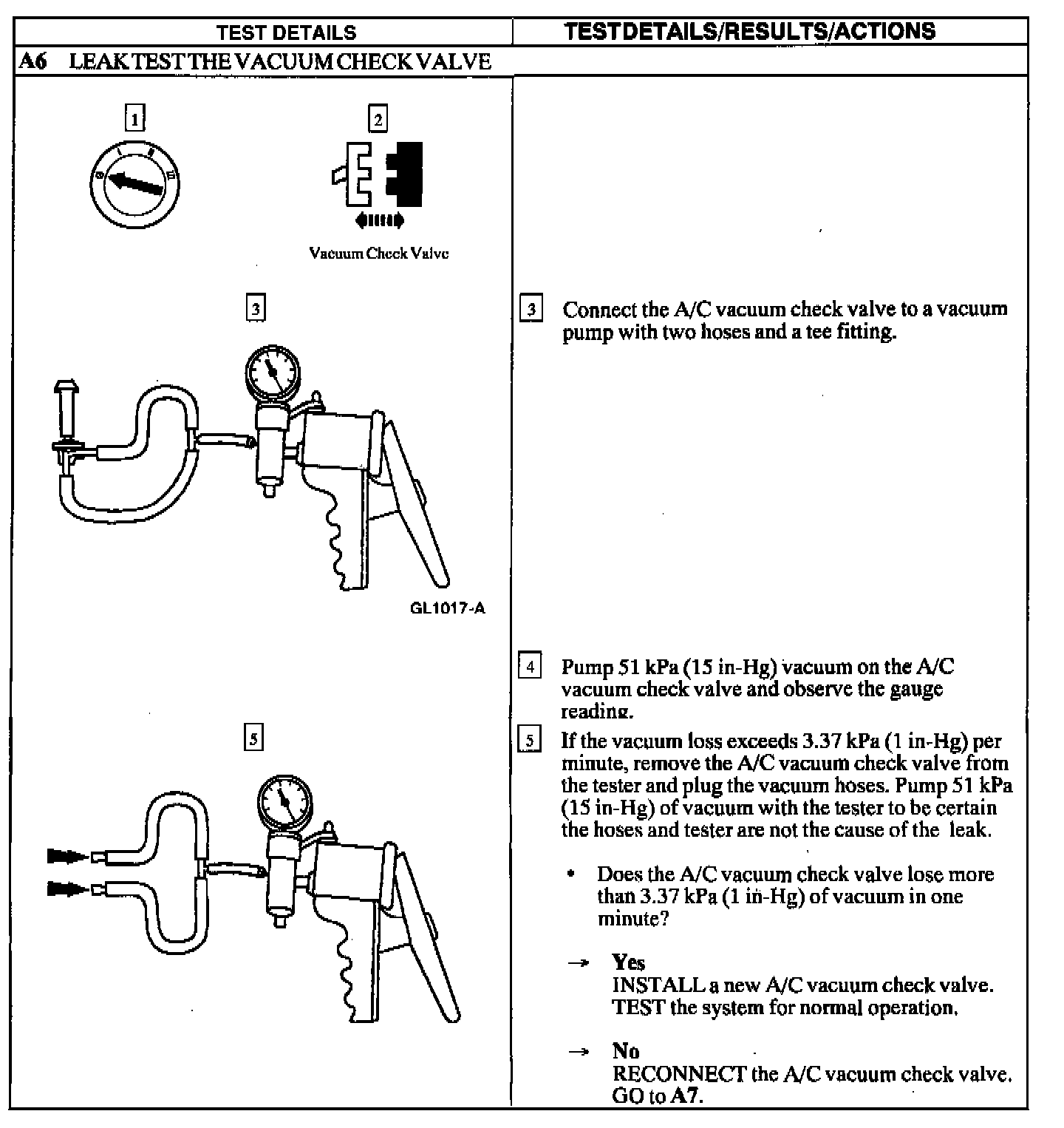

A6:

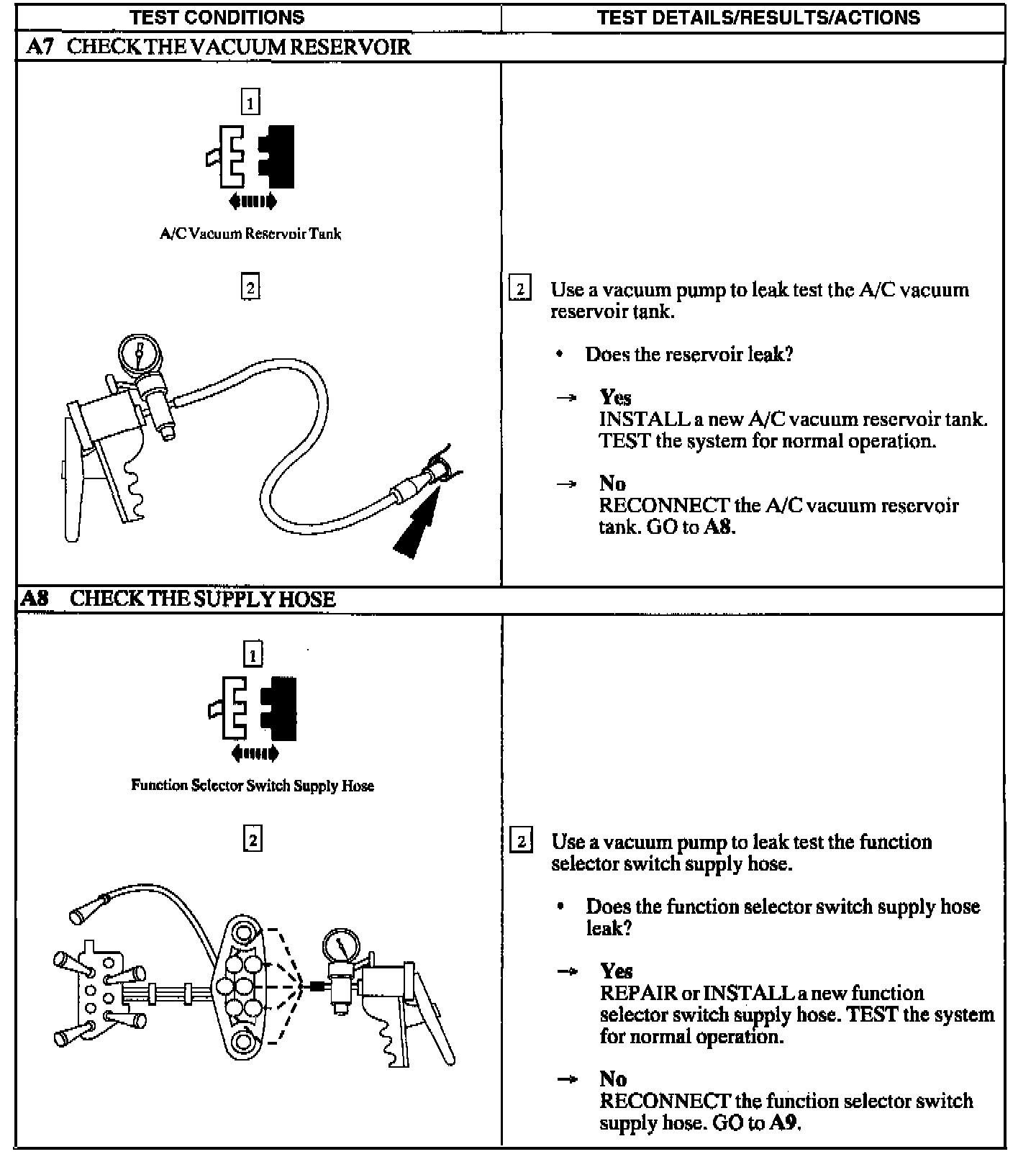

A7 - A8:
A9:

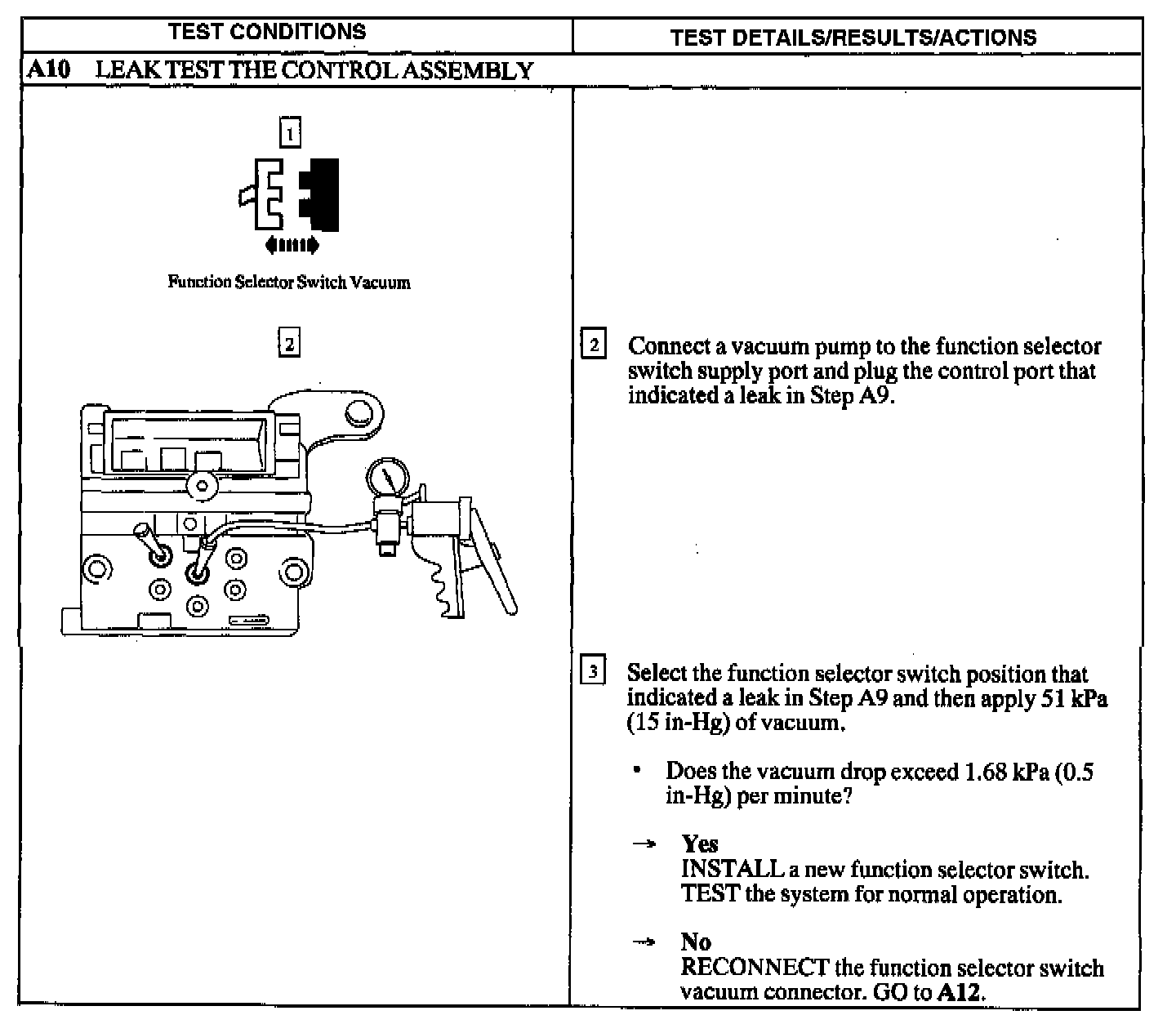

A10:

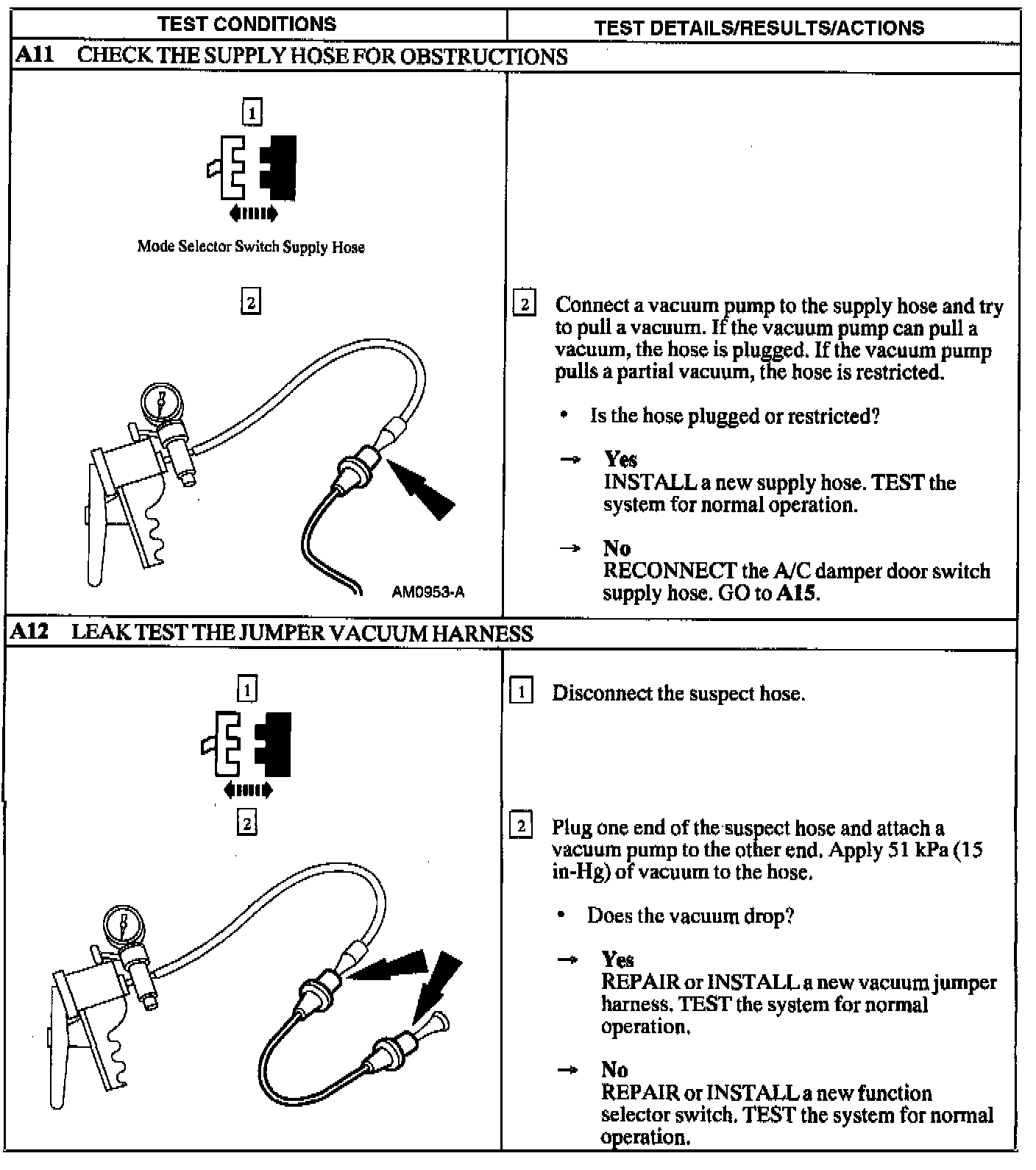

A11 - A12:
A13 - A14:

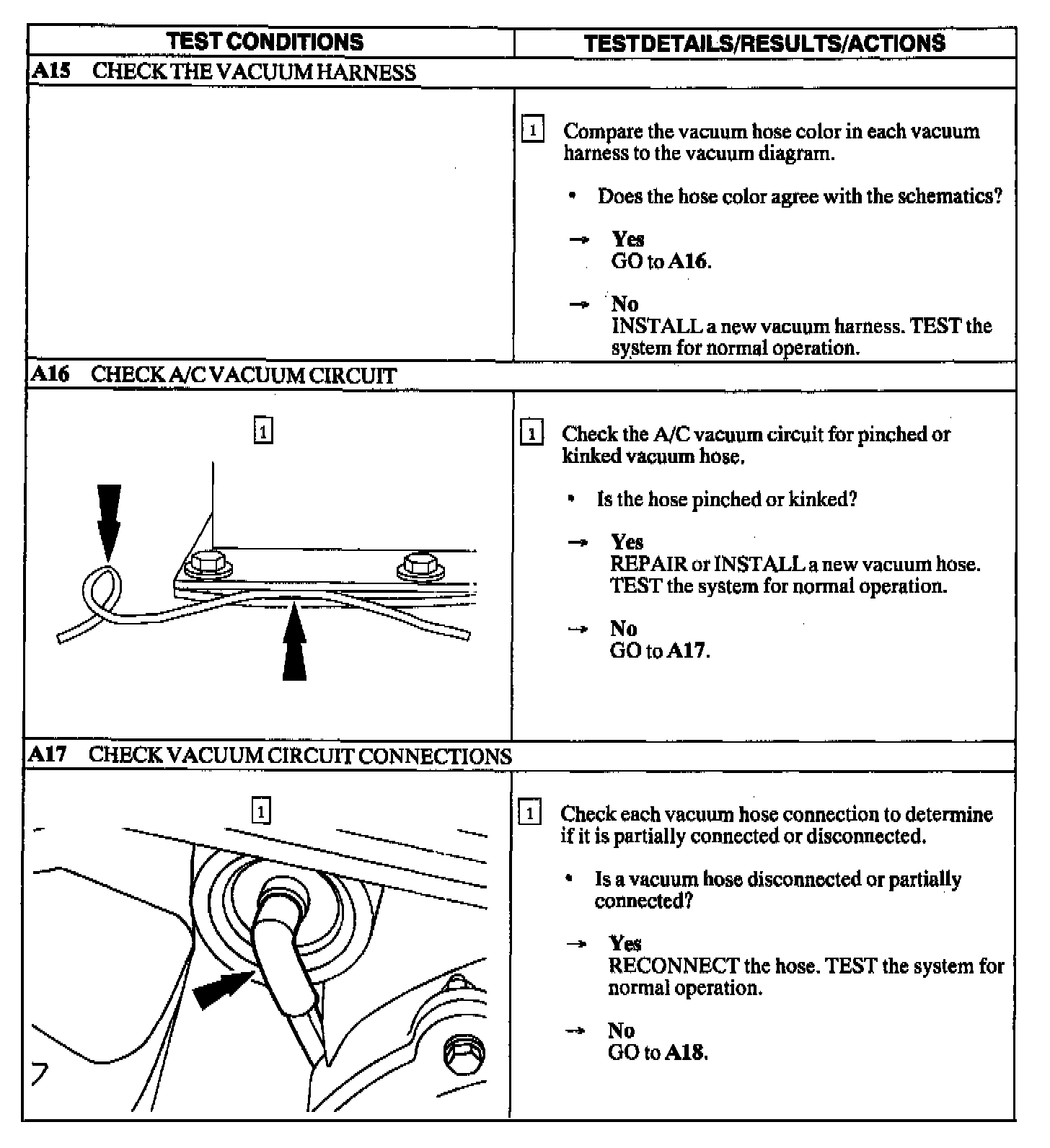

A15 - A17:

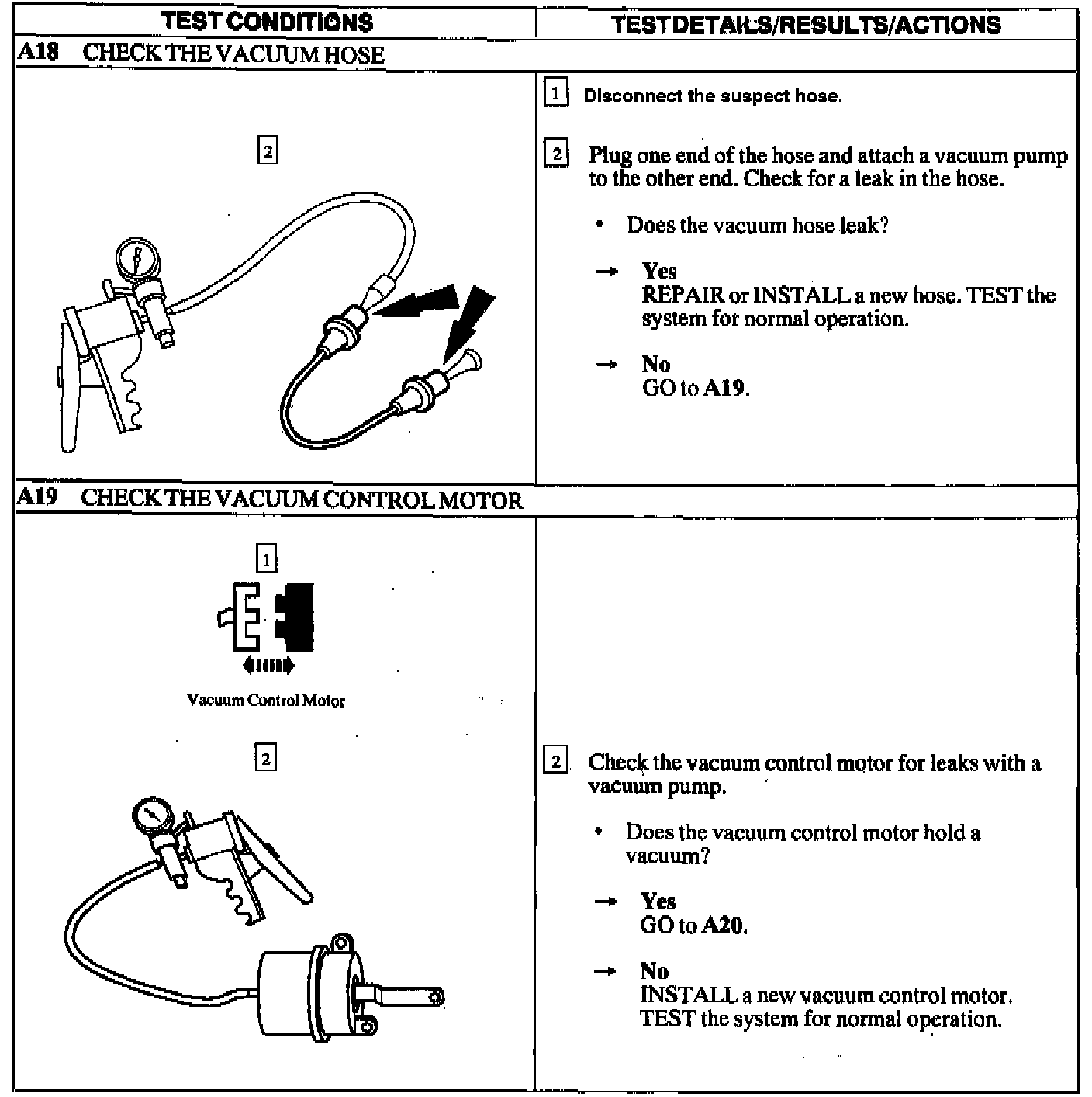

A18 - A19:

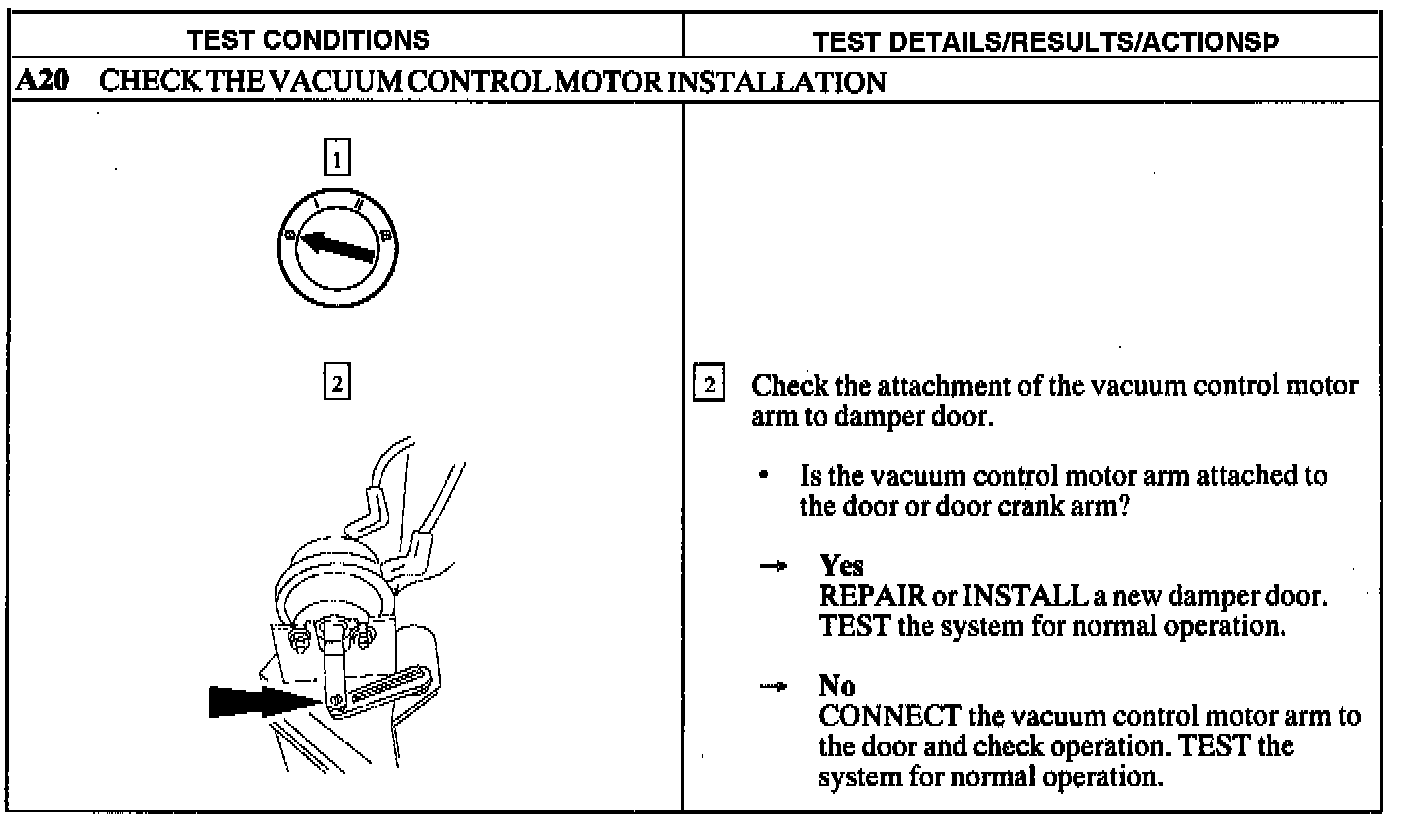

A20:
