Test C: Air Conditioning (A/C) Is Inoperative / Does Not Operate Correctly

C1:






C2 - C4:






C5 - C6:






C7 - C8:






C9 - C10:






C11:






C12 - C13:

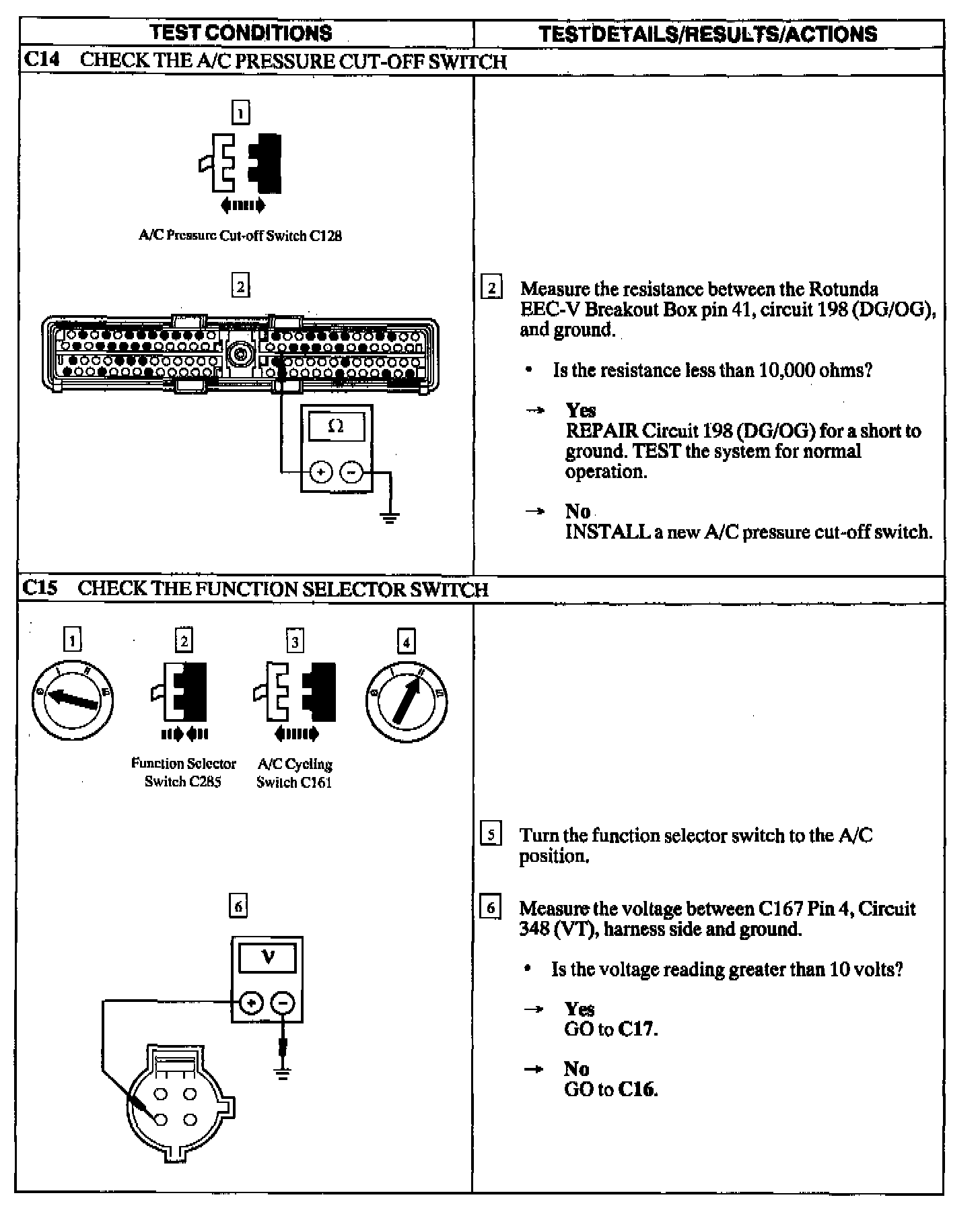

C14 - C15:






C16 - C17:






C18:

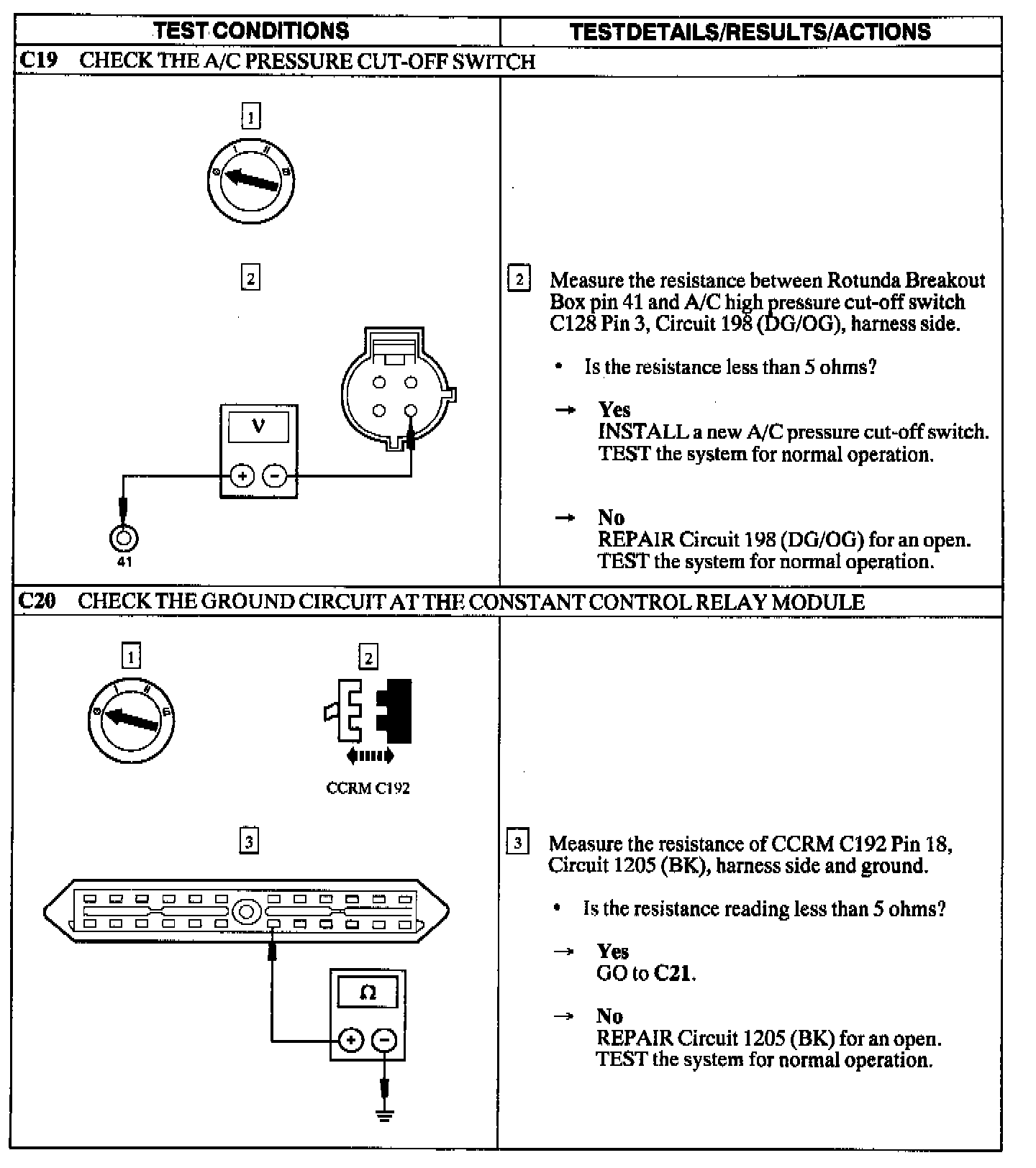

C19 - C20:






C21 - C22:

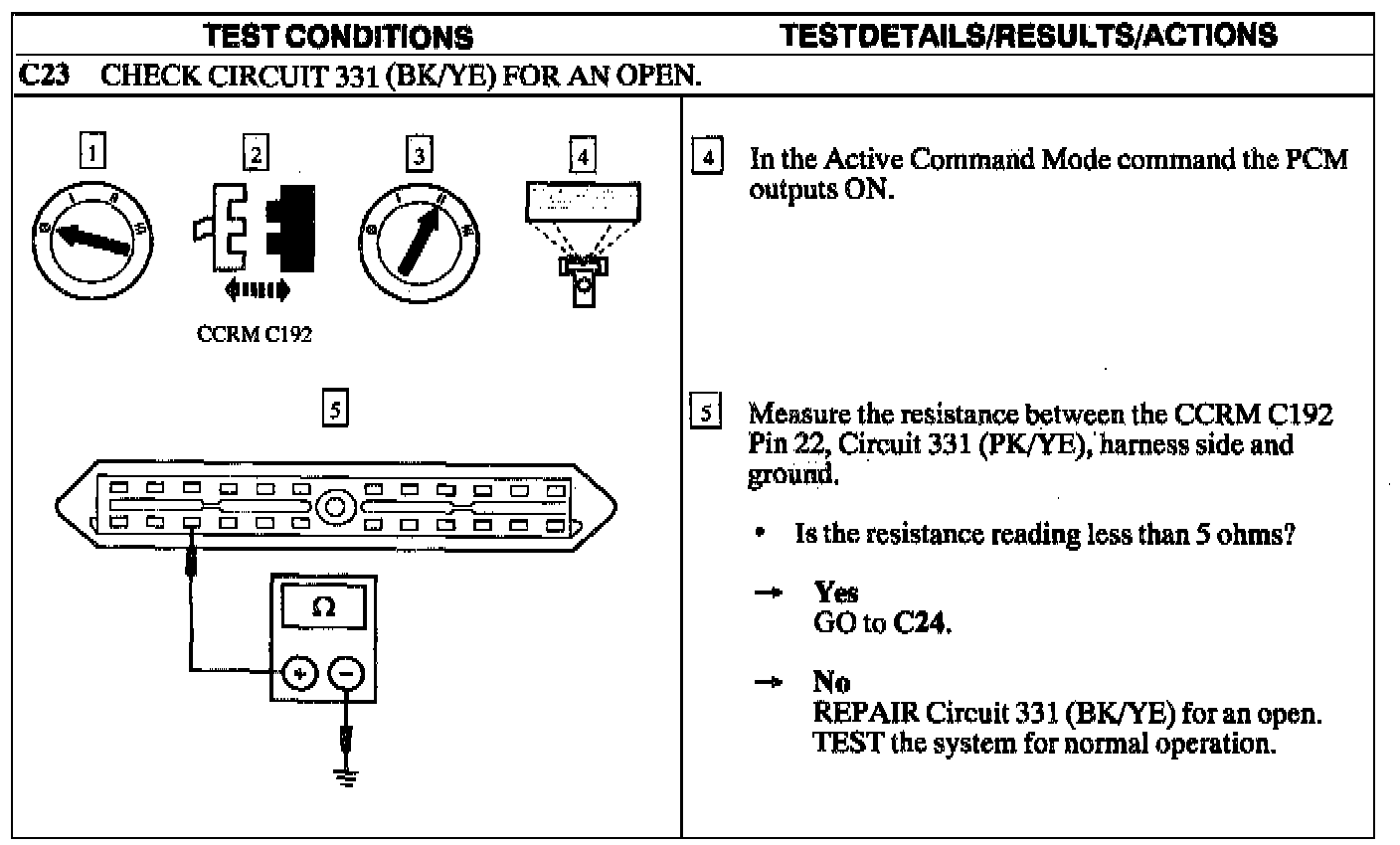

C23:

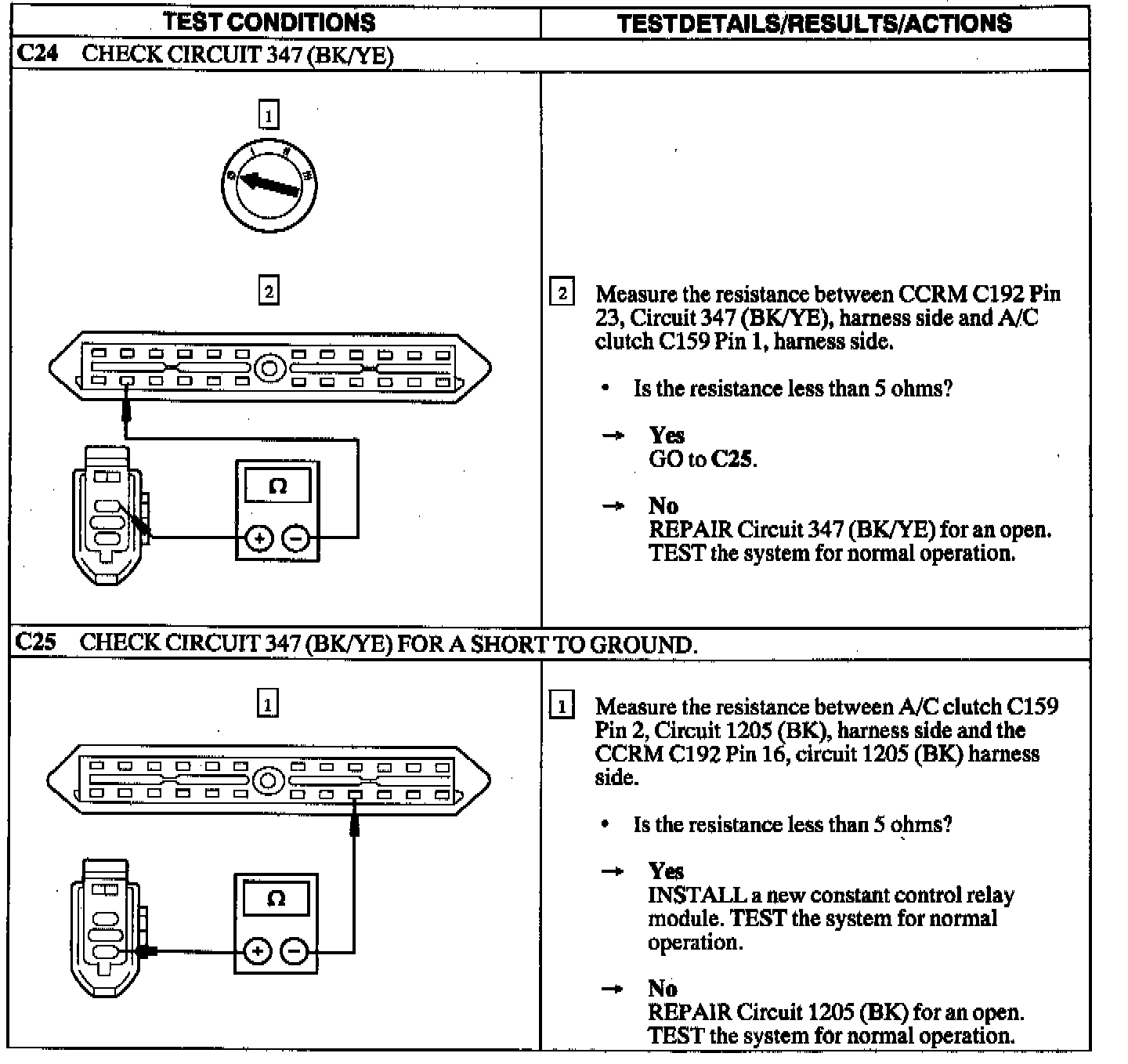

C24 - C25:
