Removal and Installation
REMOVALCAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
1. Disconnect the battery cables.
1 Disconnect the battery ground cable.
2 Disconnect the battery to starter relay cable and wait one minute for the backup power supply to be depleted.
WARNING: TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR INSTALLING ANY NEW AIR BAG SYSTEM COMPONENTS. TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY TO STARTER RELAY CABLE AND WAIT ONE MINUTE.
2. Remove the LH front wheel and tire assembly. For additional information, refer to Wheels, Tires, and Alignment.

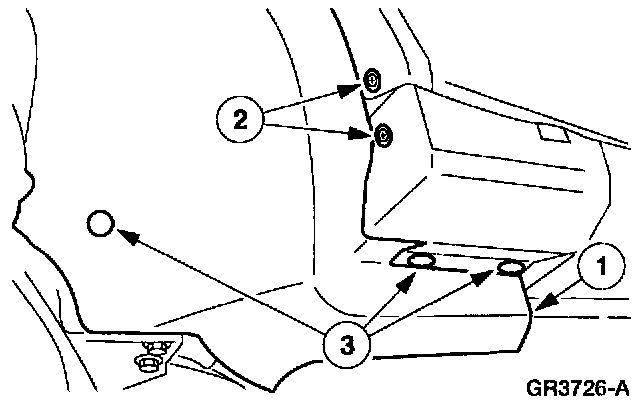

3. Position the LH front splash shield away from the dash panel.
1 Remove the pin-type retainers.
2 Remove the screws.
3 Position the LH front splash shield away from the dash panel.

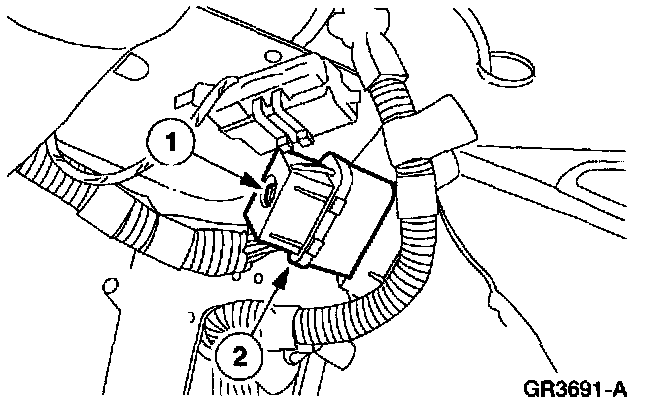

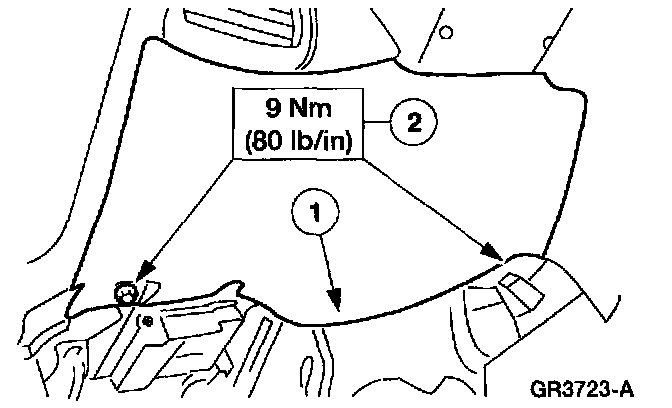

4. Disconnect the bulkhead electrical connector from inside the fender opening.
1 Loosen the bolt.
2 Disconnect the bulkhead electrical connector from inside the fender opening.

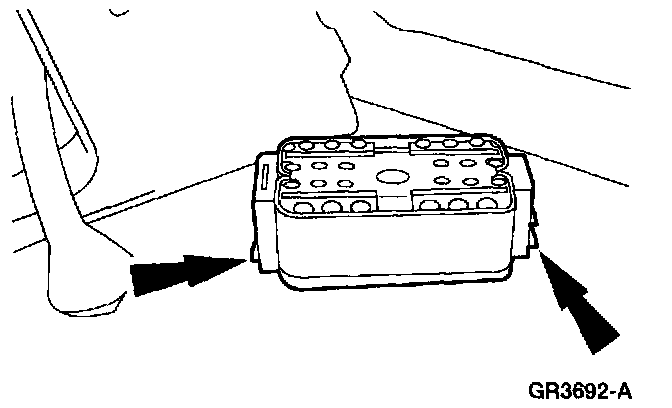

5. Release the bulkhead electrical connector from the dash panel.
6. Install the LH front wheel and tire assembly. For additional information, refer to Wheels, Tires, and Alignment.
7. Remove the floor console. For additional information, refer to Console.
8. Remove the driver air bag module. For additional information, refer to Air Bag Systems.
9. Remove the passenger air bag module. For additional information, refer to Air Bag Systems.
10. Disconnect the antenna in-line connector.

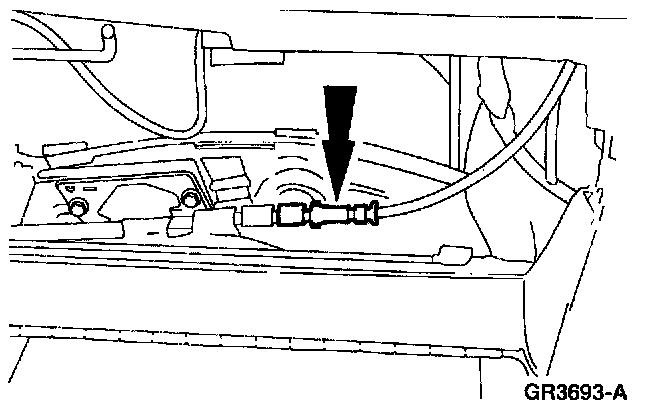

11. Disconnect the climate control vacuum harness connector.

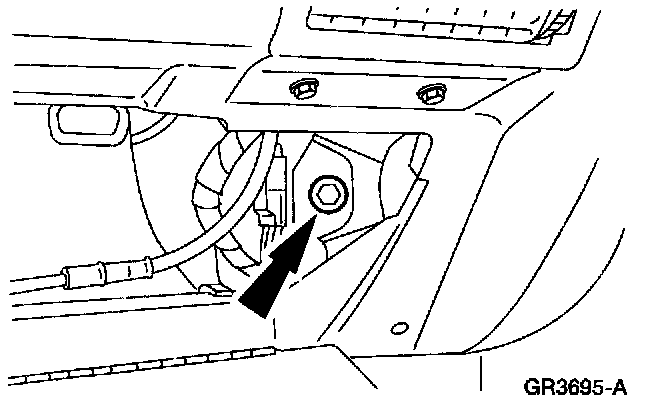

12. Remove the upper RH instrument panel support bolt.
13. Close the glove compartment.

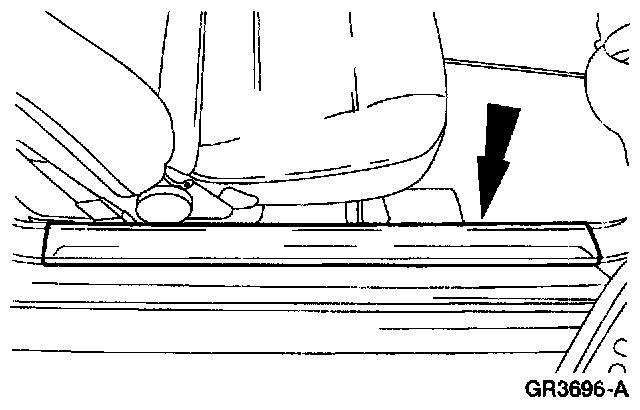

14. Remove the LH and RH scuff plates.

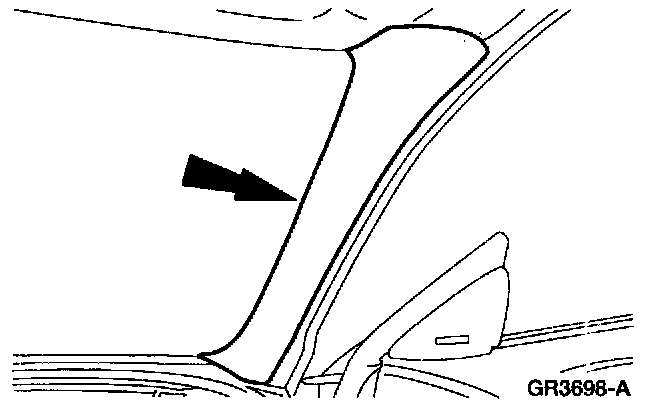

15. Remove the LH and RH A-pillar lower trim panels.

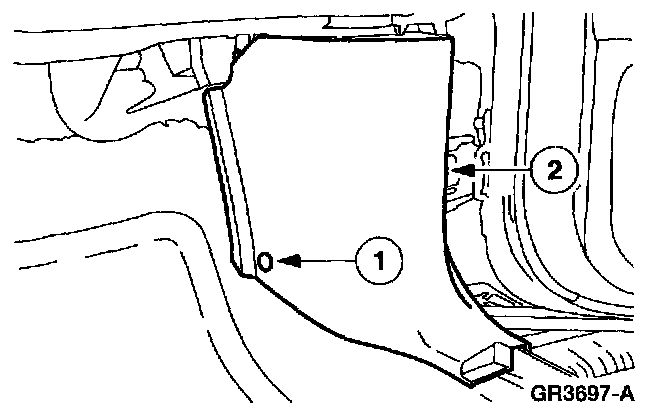

1 Remove the pin-type retainers.
2 Remove the A-pillar lower trim panels.
16. Remove the LH and RH windshield side garnish mouldings.
- If equipped with a convertible top, remove the pin-type retainers.
17. Position the LH and RH door weatherstrips aside.

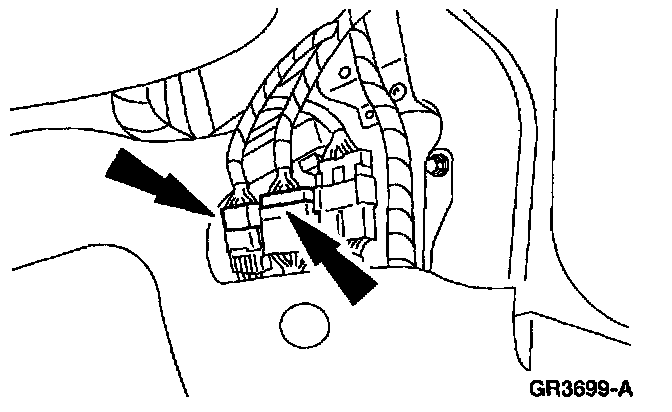

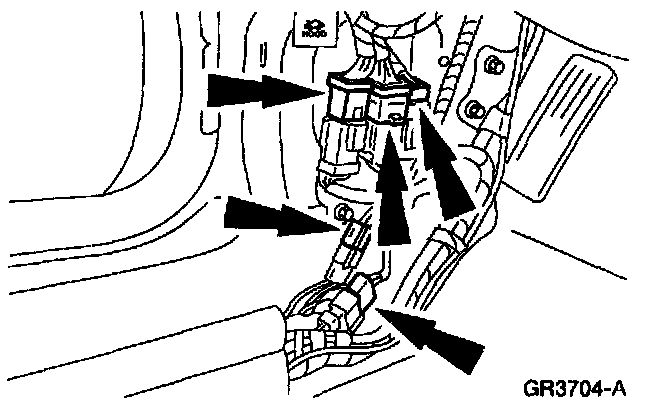

18. Disconnect the RH main wiring harness electrical connectors.
19. Disconnect the climate control wiring harness connector.

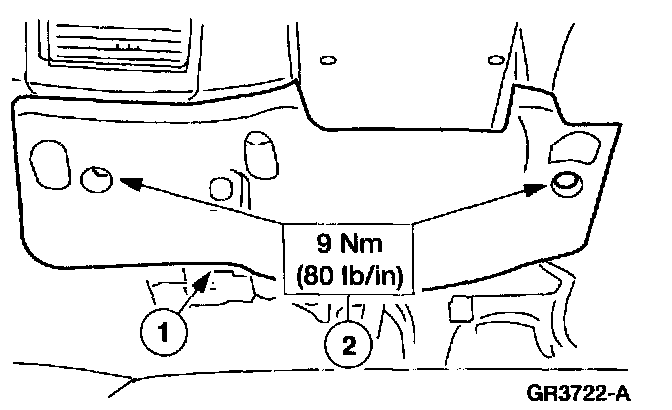

20. Remove the instrument panel steering column cover.

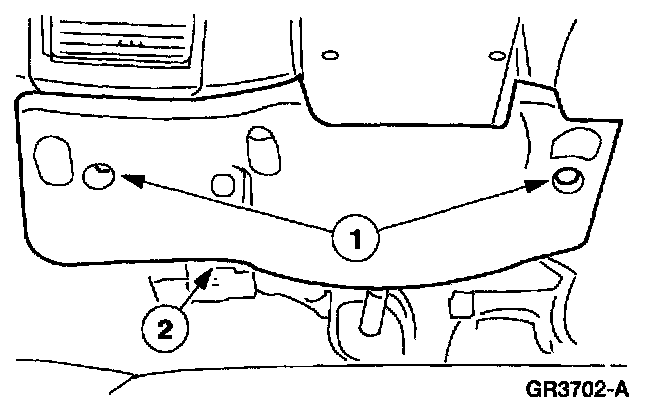

1 Remove the screws.
2 Remove the instrument panel steering column cover.

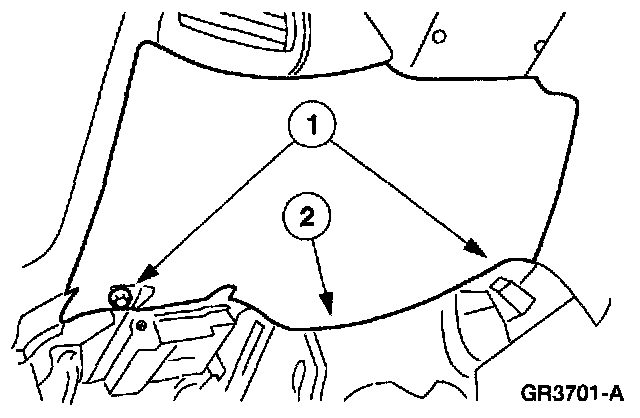

21. Remove the instrument panel reinforcement.
1 Remove the screws.
2 Remove the instrument panel reinforcement.

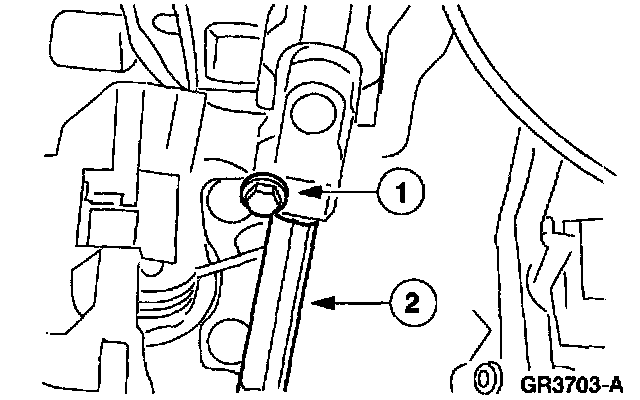

22. Separate the intermediate shaft from the steering column.
1 Remove the pinch bolt.
2 Separate the intermediate shaft from the steering column.

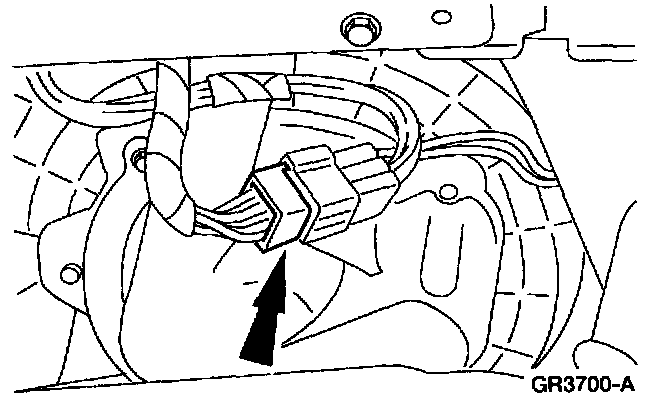

23. Disconnect the LH main wiring harness electrical connectors.
NOTE: The corner of the carpet may have to be pulled back slightly to carry out this step.

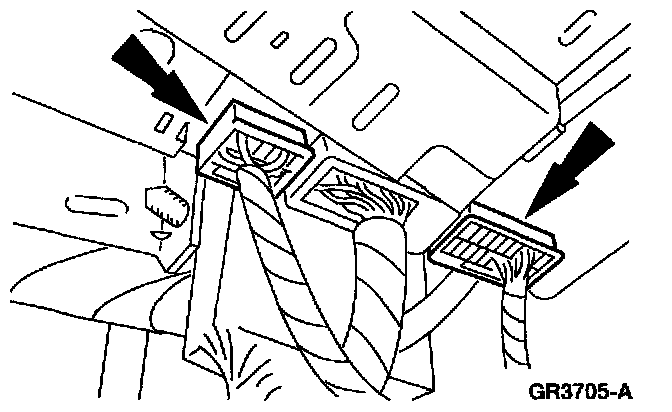

24. Disconnect the Generic Electronic Module (GEM) electrical connectors.

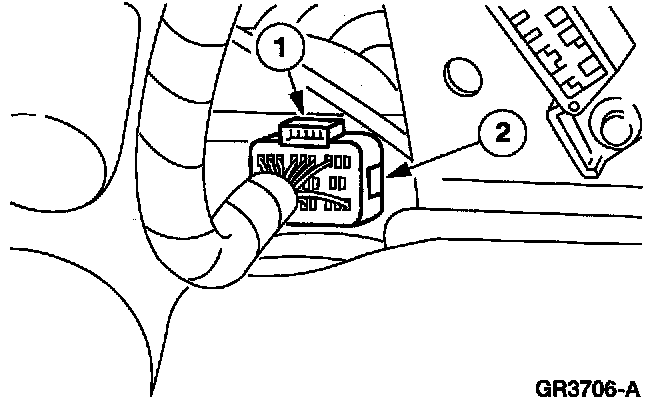

25. Disconnect the Electronic Crash Sensor (ECS) module electrical connector.
1 Release the locking tab.
2 Disconnect the ECS module electrical connector.

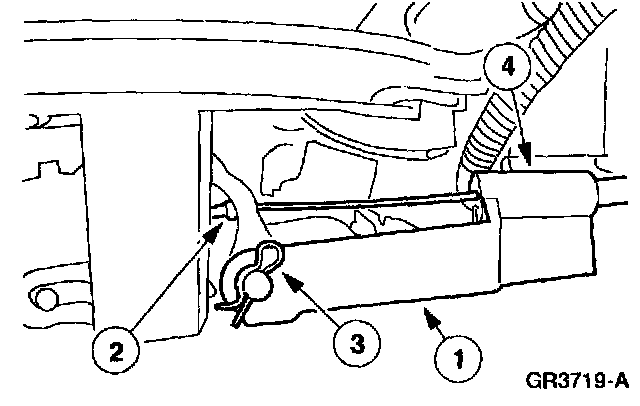

26. If equipped, disconnect the shift interlock assembly from the selector lever.
1 Remove the screw.
2 Remove the R-clip.
3 Disconnect the shift interlock cable.
4 Disconnect the shift interlock assembly from the selector lever.

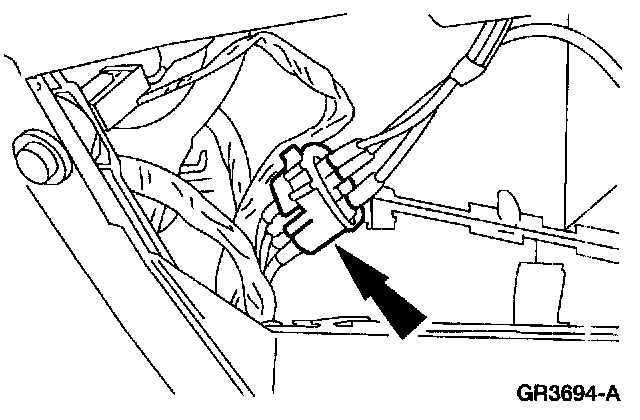

27. If equipped, disconnect the shifter assembly electrical connector.
28. Remove the audio unit. For additional information, refer to Radio, Stereo, and Compact Disc.
29. Release the temperature control cable from the blend door.
NOTE:
- This step is being carried out through the radio chassis opening.
- Rotate the temperature control switch to the cool position.

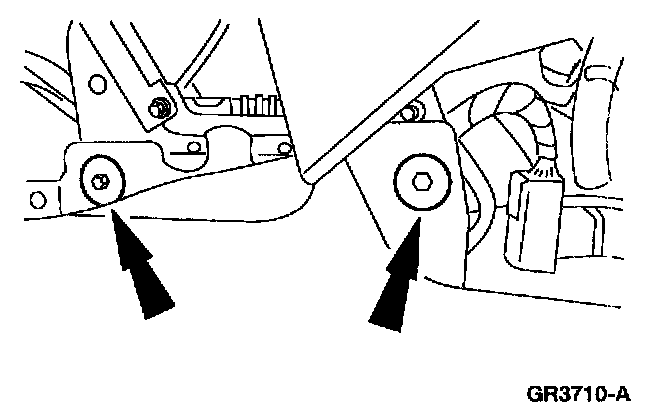

30. Remove the four center instrument panel support bolts.

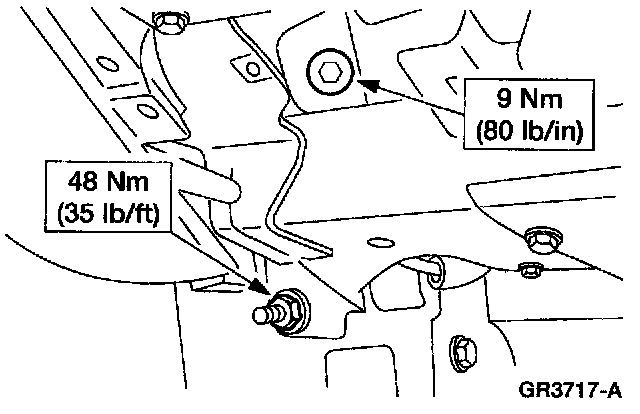

31. Remove the LH instrument panel support bolt and nut.
32. Remove the RH instrument panel support bolt.

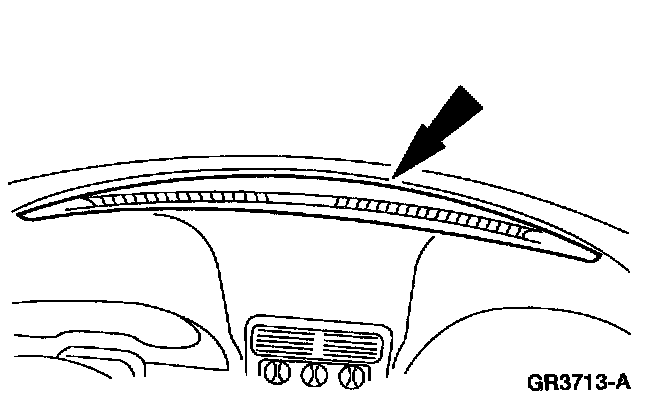

33. Remove the instrument panel upper finish panel.

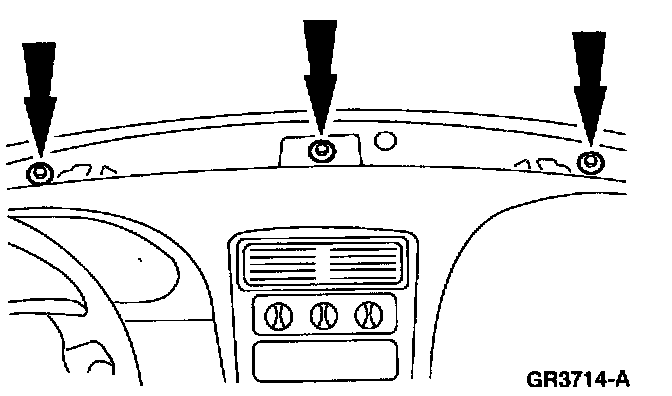

34. Remove upper instrument panel support bolts.
35. Remove the instrument panel.
NOTE: Two technicians are required to carry out this step.
INSTALLATION
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
1. Install the instrument panel.
NOTE: Two technicians are required to carry out this step.

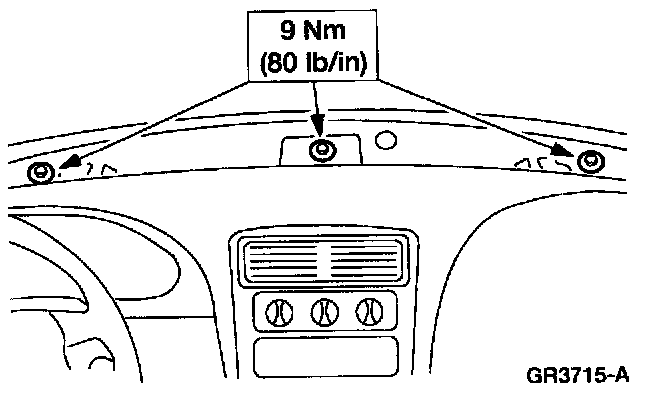

2. Install the upper instrument panel support bolts.
3. Install the instrument panel upper finish panel.

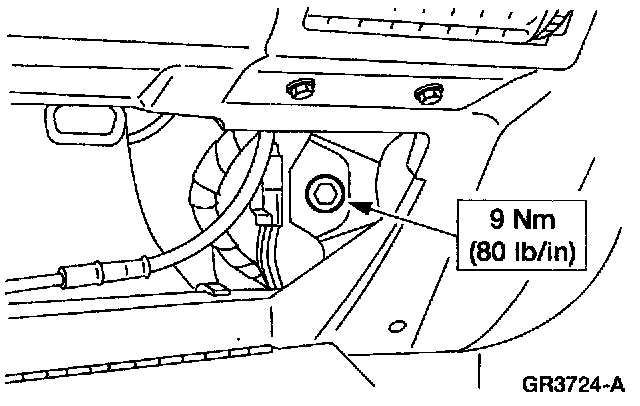

4. Install the RH instrument panel support bolt.

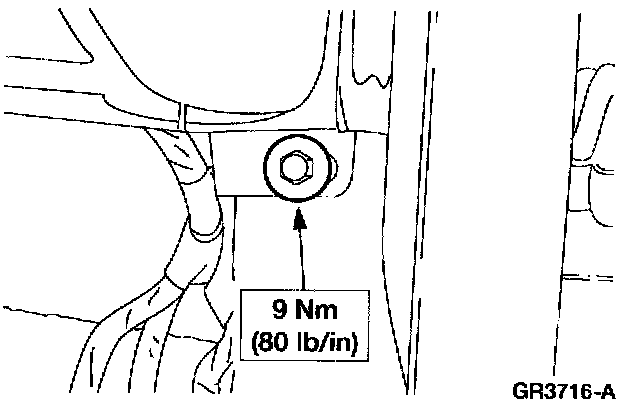

5. Install the LH instrument panel support bolt and nut.
6. Install the four center instrument panel support bolts.
7. Install the temperature control cable to the blend door.
NOTE: This step is being performed through the radio chassis opening.
8. Install the audio unit. For additional information, refer to Radio, Stereo, and Compact Disc.
9. If equipped, connect the shifter assembly electrical connector.
10. If equipped, connect the shift interlock assembly to the selector lever.
1 Position the shift interlock assembly.
2 Connect the shift interlock cable.
3 Install the R-clip.
4 Install the screw.

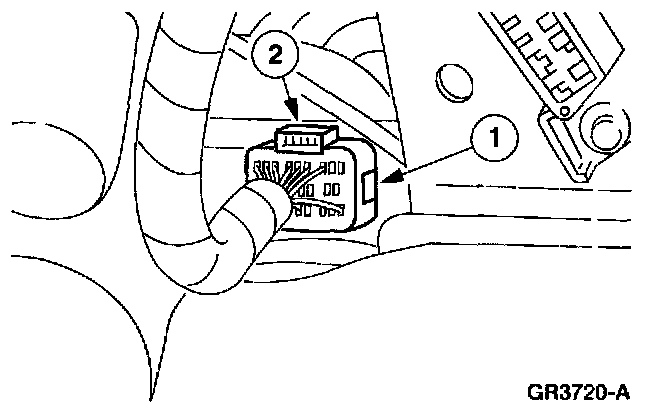

11. Connect the ECS module electrical connector.
1 Connect the ECS module electrical connector.
2 Engage the locking tab.
12. Connect the GEM electrical connectors.
13. Connect the LH main wiring harness electrical connectors.

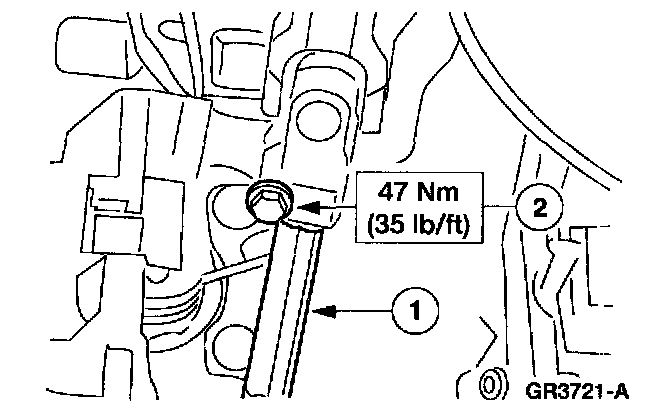

14. Connect the intermediate shaft to the steering column.
1 Connect the intermediate shaft to the steering column.
2 Install the pinch bolt.
15. Install the instrument panel reinforcement.
1 Position the instrument panel reinforcement.
2 Install the screws.
16. Install the instrument panel steering column cover.
1 Position the instrument panel steering column cover.
2 Install the screws.
17. Connect climate control wiring harness connector.
18. Connect the RH main harness electrical connectors.
19. Install the LH and RH door weatherstrips.
20. Install the LH and RH windshield side garnish mouldings.
- If equipped with a convertible top, install the pin-type retainers.
21. Install the LH and RH A-pillar lower trim panels.
1 Position the LH and RH A-pillar lower trim panels.
2 Install the pin-type retainers.
22. Install the LH and RH scuff plates.
23. Open the glove compartment.
24. Install the upper RH instrument panel support bolt.
25. Connect the climate control vacuum harness connector.
26. Connect the antenna in-line connector.
27. Install the passenger air bag module. For additional information, refer to Seat Belt Systems.
28. Install the driver air bag module. For additional information, refer to Seat Belt Systems.
29. Install the floor console. For additional information, refer to Console.
30. Remove the LH front wheel and tire assembly. For additional information, refer to Wheels, Tires, and Alignment.
31. Insert the bulkhead electrical connector into the dash panel.
32. Connect the bulkhead electrical connector.
1 Connect the bulkhead electrical connector.
2 Tighten the bolt.
33. Install the LH front splash shield.
1 Position the LH front splash shield.
2 Install the screws.
3 Install the pin-type retainers.
34. Install the LH front wheel and tire assembly. For additional information, refer to Wheels, Tires, and Alignment.
35. Connect the battery cables.
NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
