Ford
>>
2000
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster
Instrument Cluster

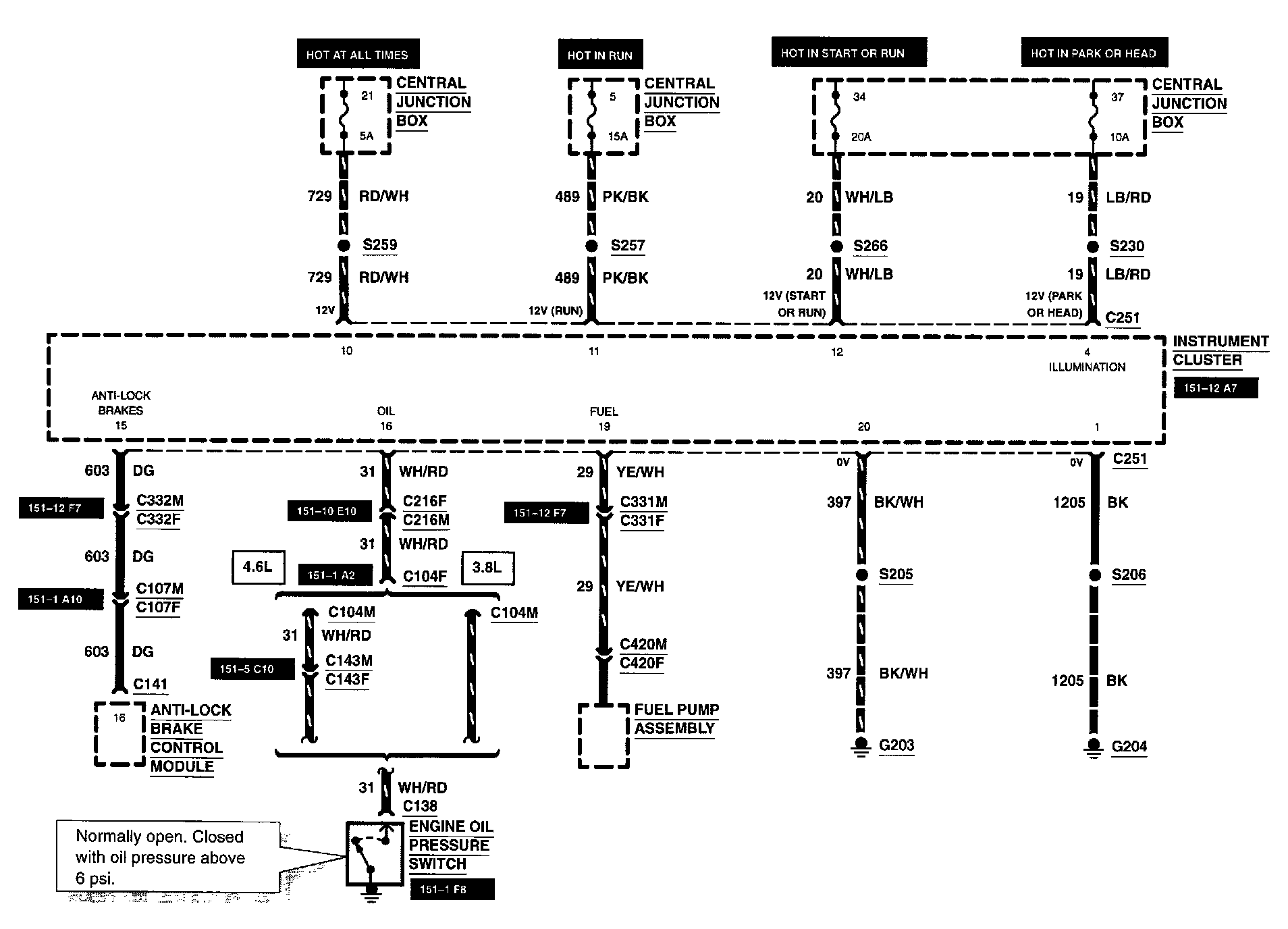

Diagram 60-1:

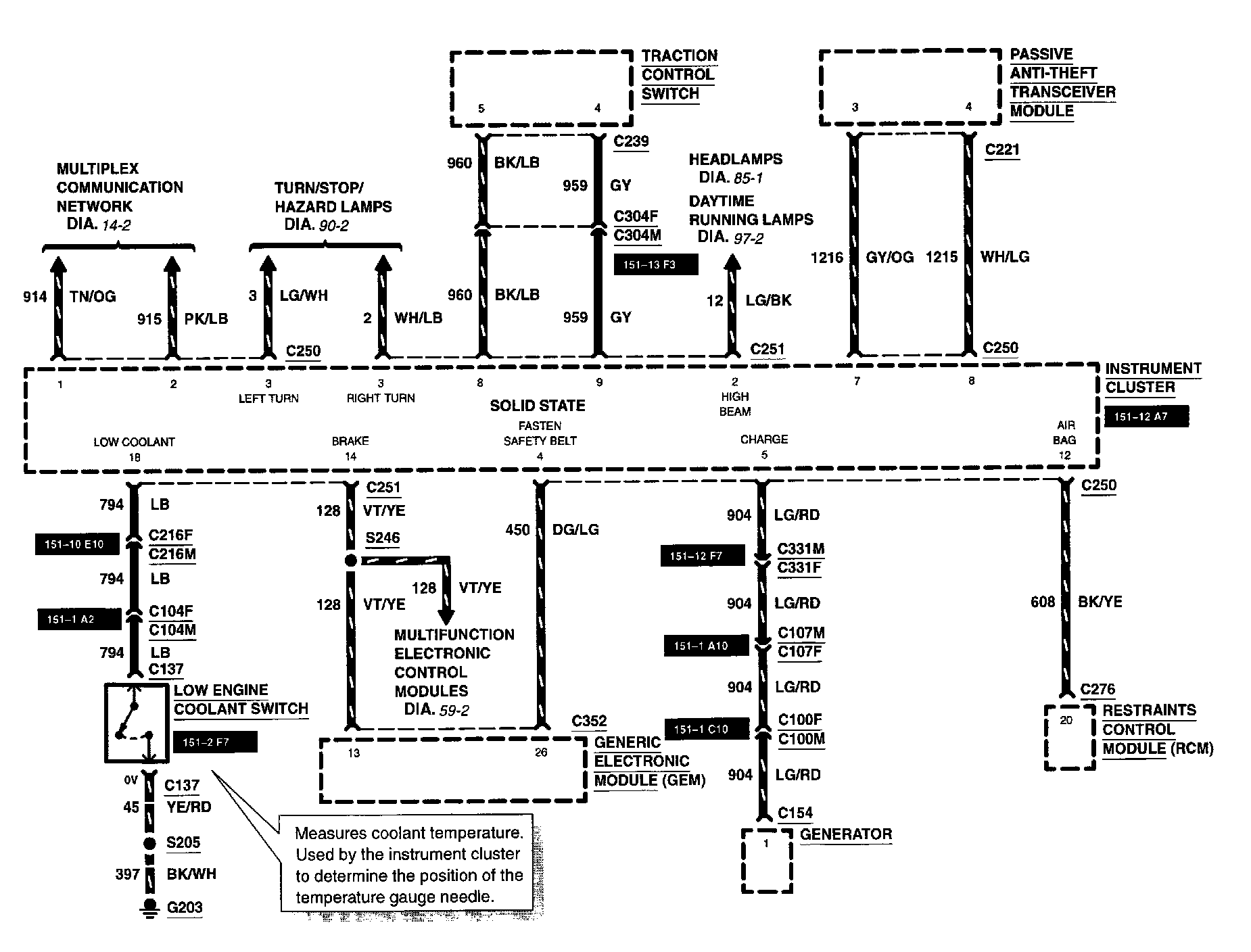

Diagram 60-2:
