Tail Lamp: Service and Repair

REMOVAL
1. Position the luggage compartment trim aside.
^ Remove the two retainers.







2. Remove the four rear lamp nuts.

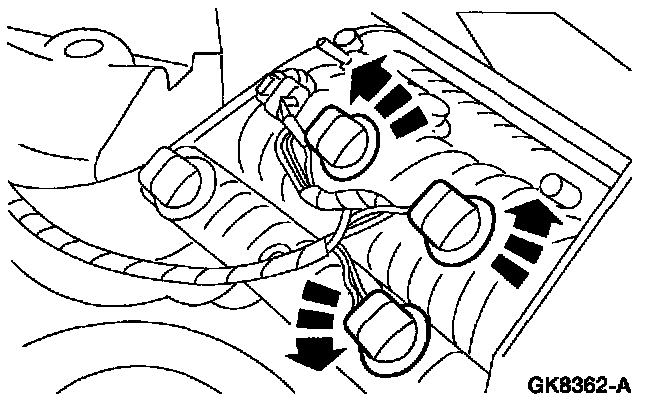

3. Remove the rear lamp assembly, disconnect the electrical connectors and replace the bulbs if necessary.

INSTALLATION







1. To install, reverse the removal procedure.
