Drive Belt: Service and Repair

Removal

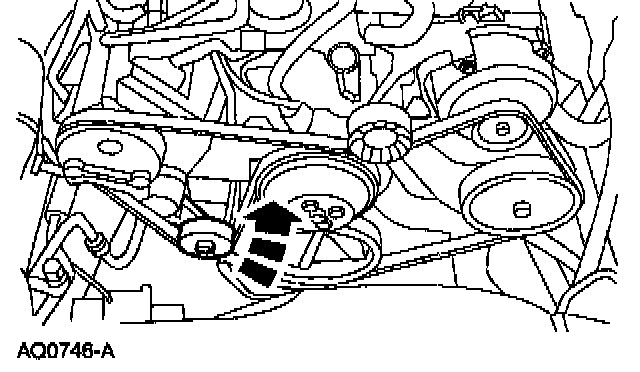

1. Rotate the drive belt tensioner counterclockwise and remove the drive belt.

Installation

1. Caution: Incorrect drive belt installation will cause drive belt failure.

Note: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
