Sensor, Rear

Removal

1. Remove the rear passenger seat.

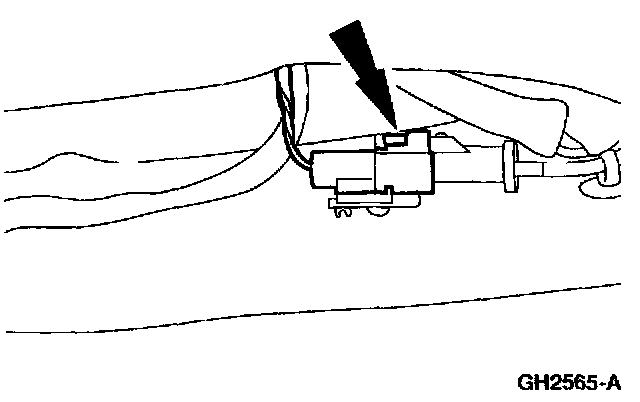

2. Disconnect the rear anti-lock brake sensor electrical connector.
3. Raise and support the vehicle.

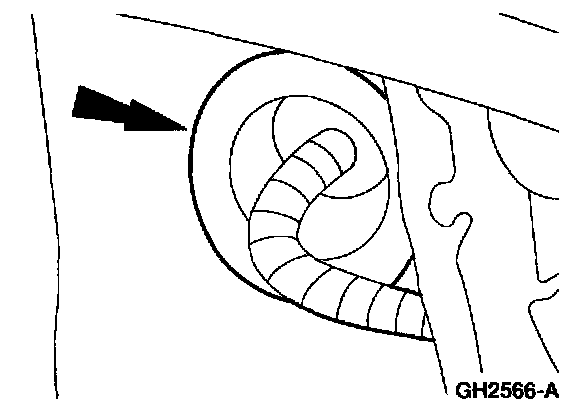

4. Remove the rear anti-lock brake sensor harness from the floor pan.

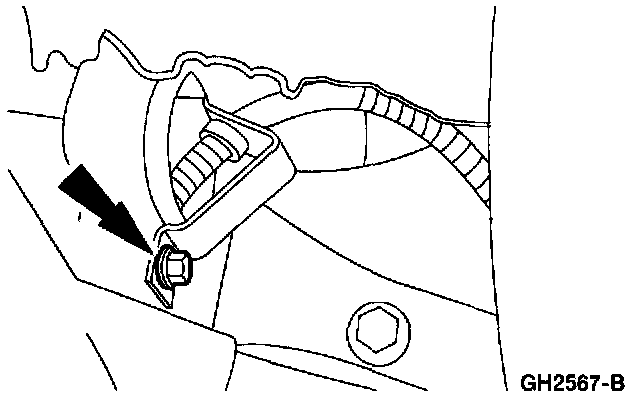

5. Remove the anti-lock brake sensor harness bracket bolt.





6. Note: The sensor may be seized to the axle. Use Rust Penetrant and Inhibitor F2AZ-19A501-A meeting Ford specification ESR-M99C56-A to loosen the sensor for removal.

Remove the rear anti-lock brake sensor.

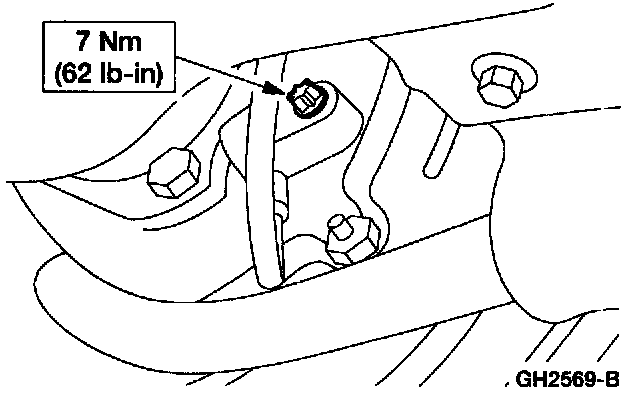

1 Remove the rear anti-lock brake sensor bolt.
2 Remove the rear anti-lock brake sensor.

Installation





1. Note: Be sure to apply High Temperature Nickel Anti-Size Lubricant F6AZ-9L494-AA meeting Ford specification ESE-M124A-A to the sensor body where it will make contact when installed.

To install, reverse the removal procedure.
