Door Switch: Service and Repair

REMOVAL
1. Remove the door trim panel.
2. Remove the door latch. For additional information, refer to Door Latch.

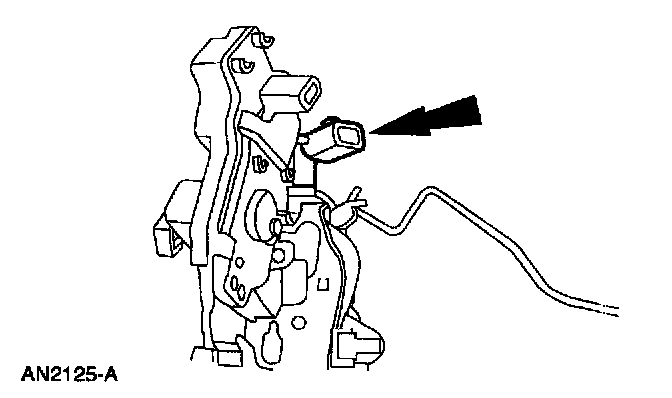

3. Remove the door ajar switch.
^ Release the locking tab.

INSTALLATION
1. To install, reverse the removal procedure.
