Removal

CAUTION: Whenever a transmission has been disassembled to replace worn or damaged parts the transmission fluid cooler tubes must be cleaned and backflushed. Use a suitable torque converter/fluid cooler cleaner. If equipped the oil-to-air cooler must also be replaced.

When internal wear or damage has occurred in the transmission, metal particles, clutch plate material or band material may have been carried into the torque converter and fluid cooler. These contaminants are a major cause of recurring transmission troubles and must be removed from the system before the transmission is put back into use.

CAUTION: After transmission is removed for a major overhaul, it is important to completed clean all transmission components, including torque converter, oil-to-air cooler if equipped, cooler inlet tube, main control valve body, clutches and all coasting booster valve shuttle balls after any transmission repair that generates contamination. These contaminants are a major cause for recurring transmission concerns and must be removed from the system before the transmission is returned to use.

The cleaning of debris from the direct clutch check ball is often omitted. This omission can lead to repeat repair of the transmission.
If equipped the oil-to-air cooler must be replaced under the following conditions.
^ Evidence of transmission assembly or fluid contamination is found due to the following transmission or converter failure modes:
- major metallic failure
- multiple clutches or clutch plate failures
- sufficient component wear which results in metallic contamination.
1. Place the transmission range selector lever in NEUTRAL.
2. Disconnect the battery ground cable.
3. Raise and support the vehicle.
4. Remove the dual converter Y pipe.





5. Disconnect the transmission harness electrical connector.
6. If transmission disassembly is required, drain the transmission fluid.

7. Note: To maintain the initial driveshaft balance, mark the REAR driveshaft yoke and the axle companion flange so they may be installed in their original positions.





Remove the driveshaft bolts.

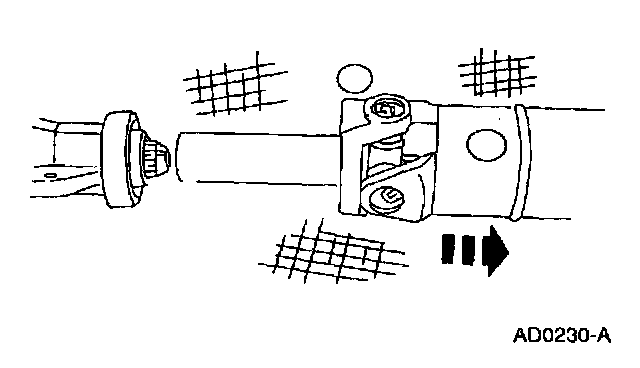

8. Separate the driveshaft from the transmission.





9. Disconnect the connector.





10. Disconnect the connector.





11. Remove the cover.





12. Remove the four nuts

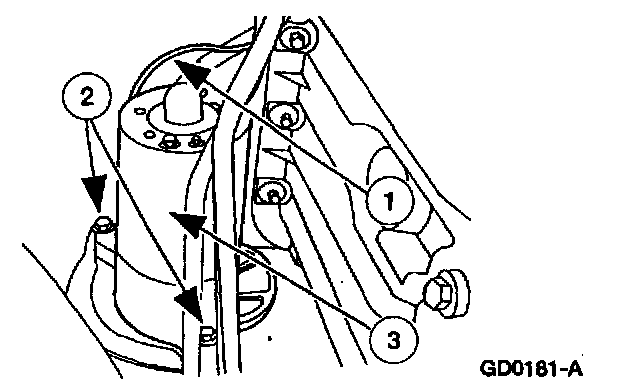

13. Remove the starter.
1. Disconnect the electrical connectors.
2. Remove the bolts.
3. Remove the starter.





14. Disconnect the transmission shift linkage.





15. Remove the cable from the bracket.





16. Disconnect the transmission fluid cooler tubes.
17. Position the High-Lift Jack under the transmission.





18. Unclip the connectors.





19. Remove the bolts.





20. Remove the bolts.





21. Remove the bolts.





22. Remove the bolt.





23. Remove the bolts.





24. Unclip the harness.





25. WARNING: The torque converter is heavy and may result in injury if it falls out of the transmission. Secure the torque converter in the transmission.

Using the special tool, secure the torque converter in the transmission then lower the transmission from the vehicle.
26. Carry out the transmission fluid cooler backflushing and cleaning.
