Test B: Incorrect Fuel Gauge Indication - Without Flex Fuel
Test B: Incorrect Fuel Gauge Indication - Without Flex Fuel

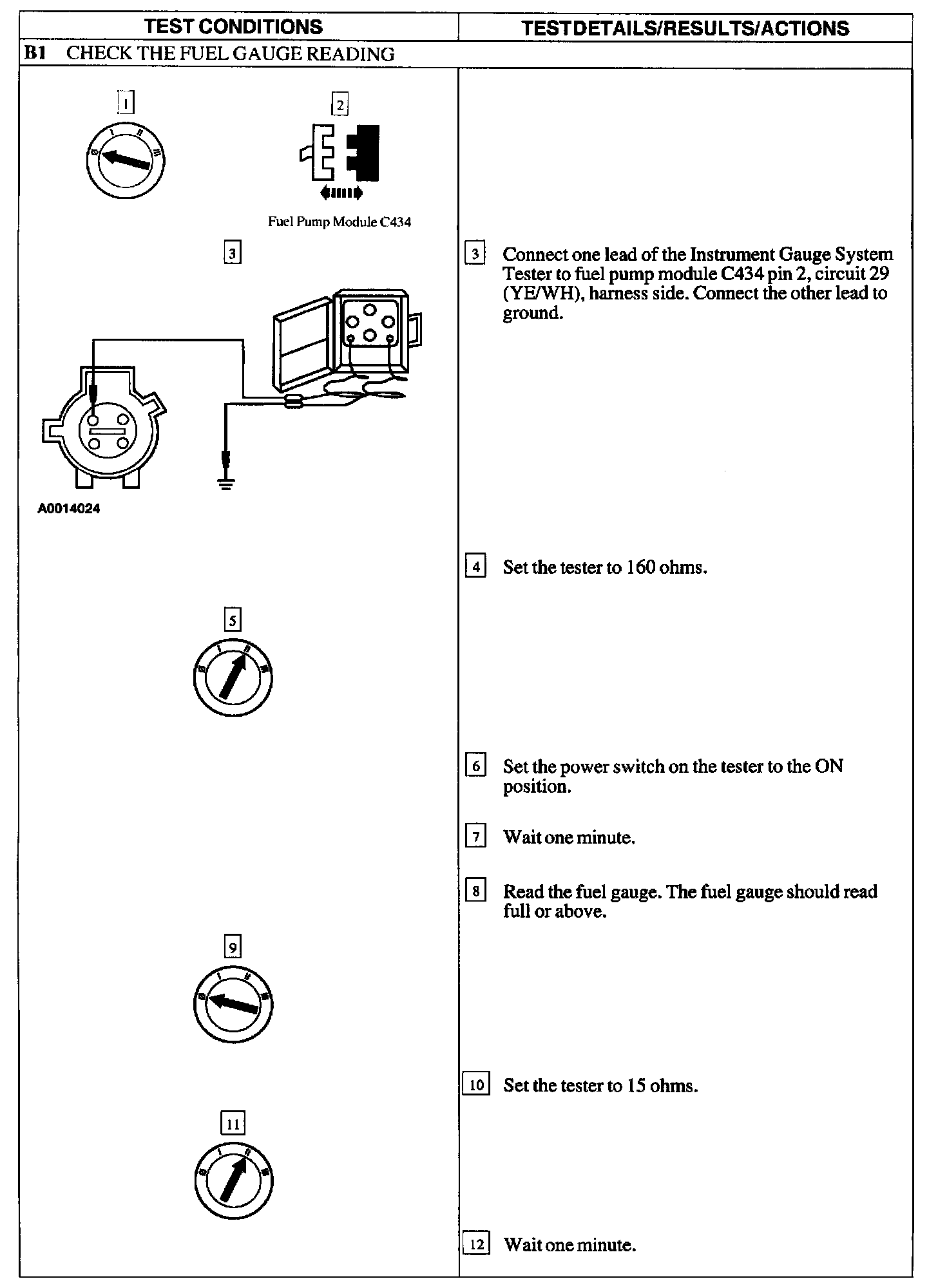

B1 (Part 1 Of 2):
B1 (Part 2 Of 2):

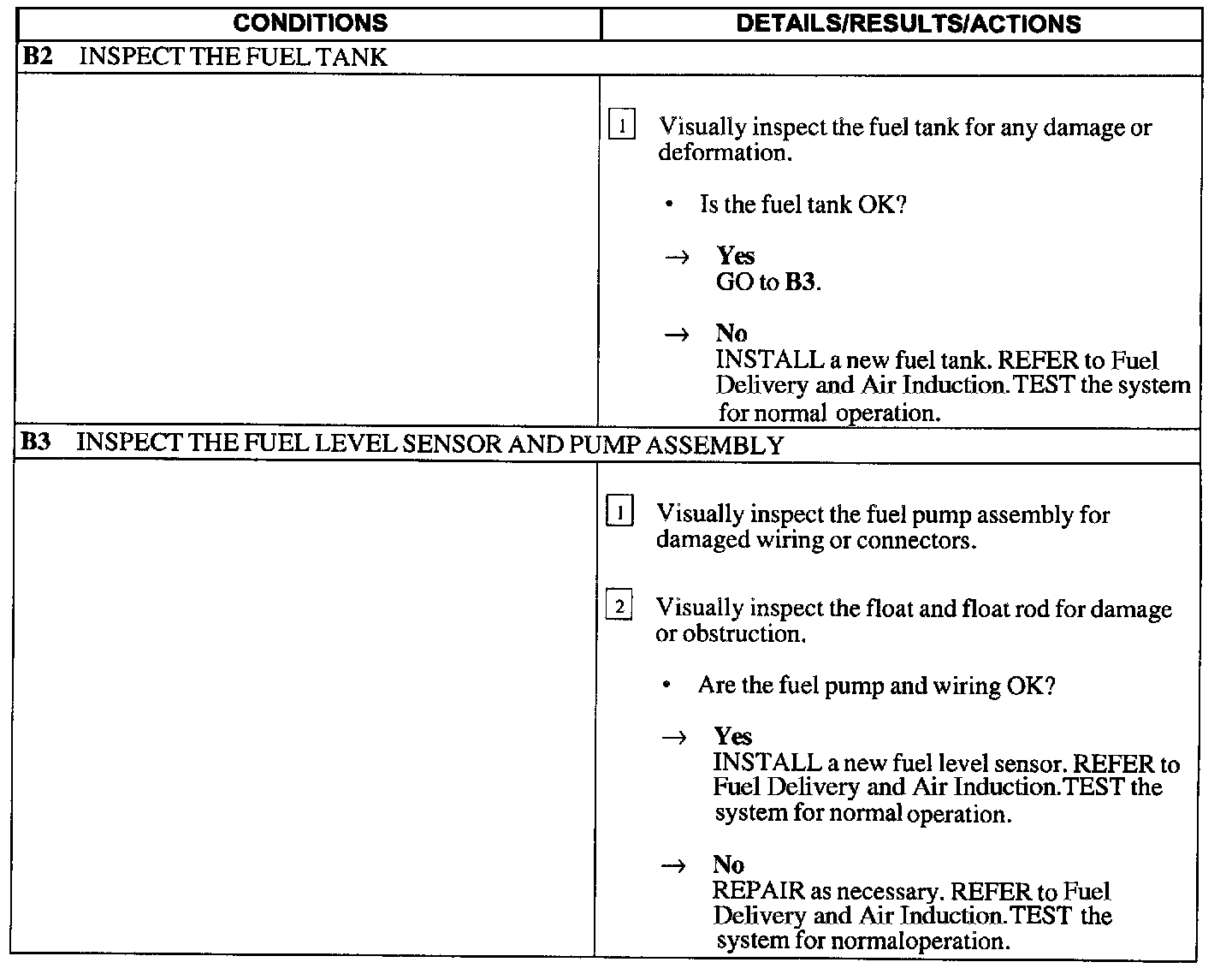

B2 - B3:
B4 - B5:

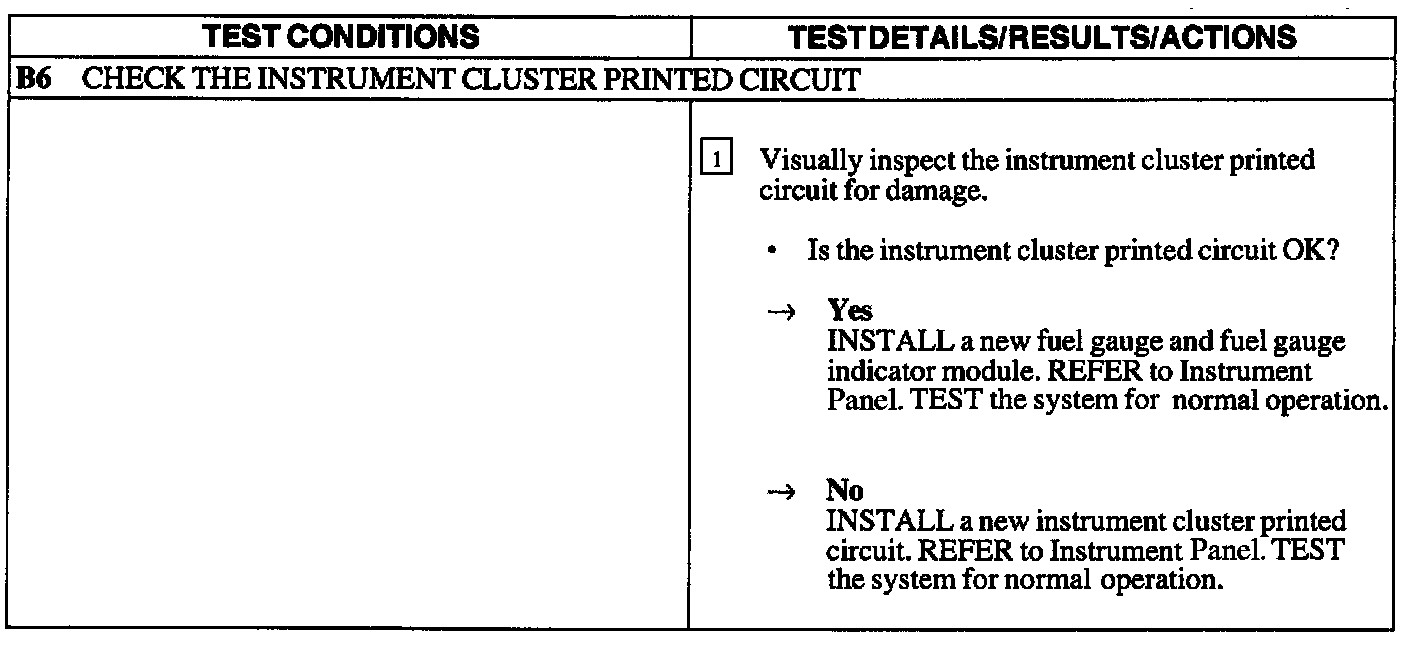

B6:
