Test C: Incorrect Fuel Gauge Indication - With Flex Fuel
Test C: Incorrect Fuel Gauge Indication - With Flex Fuel
Test C1-2

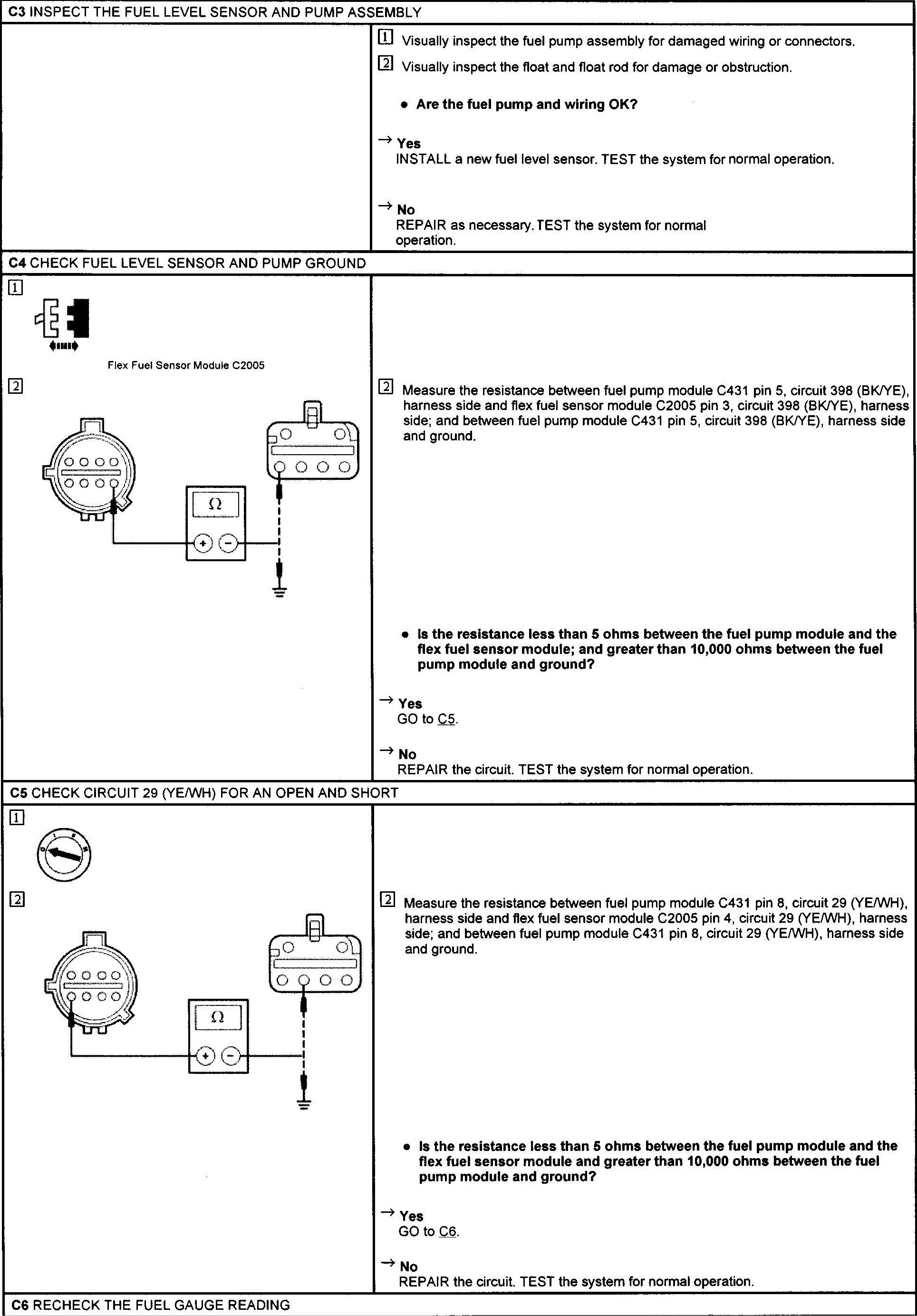

Test C3-5

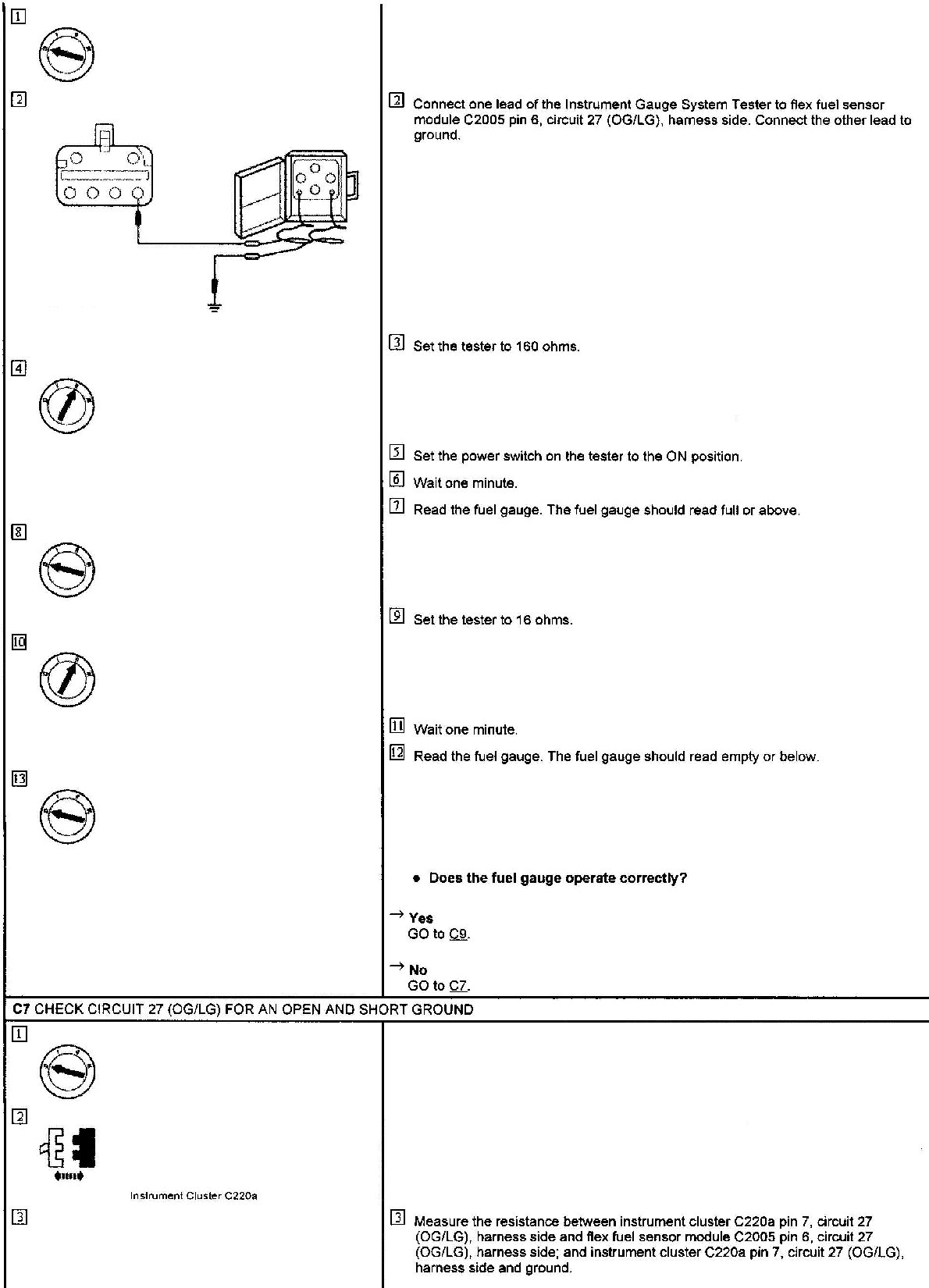

Test C6-7

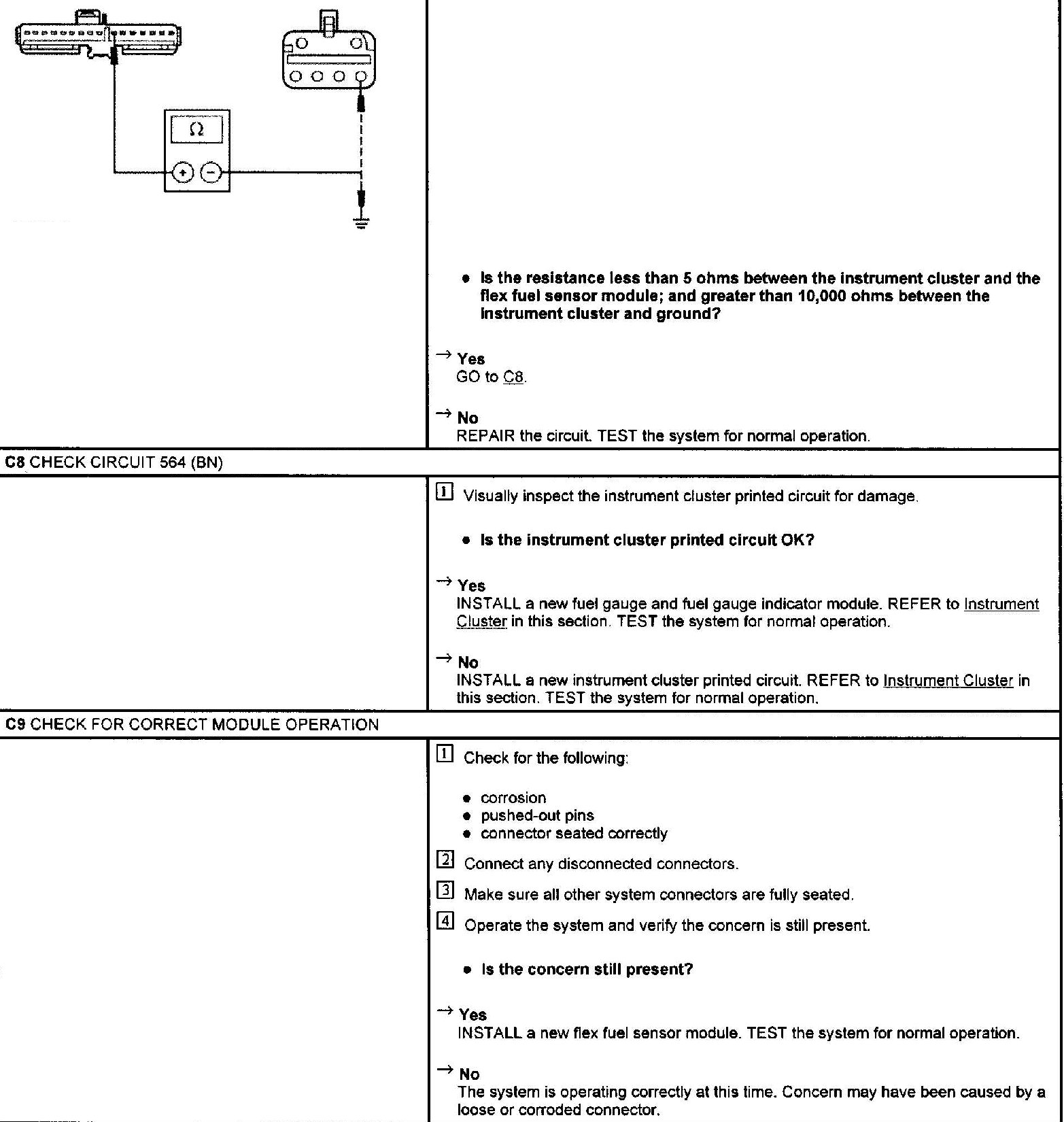

Test C7-9
