Home >> Ford >> 2000 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test E: Battery Saver Is Inoperative

Test E: Battery Saver Is Inoperative

E1 - E2:

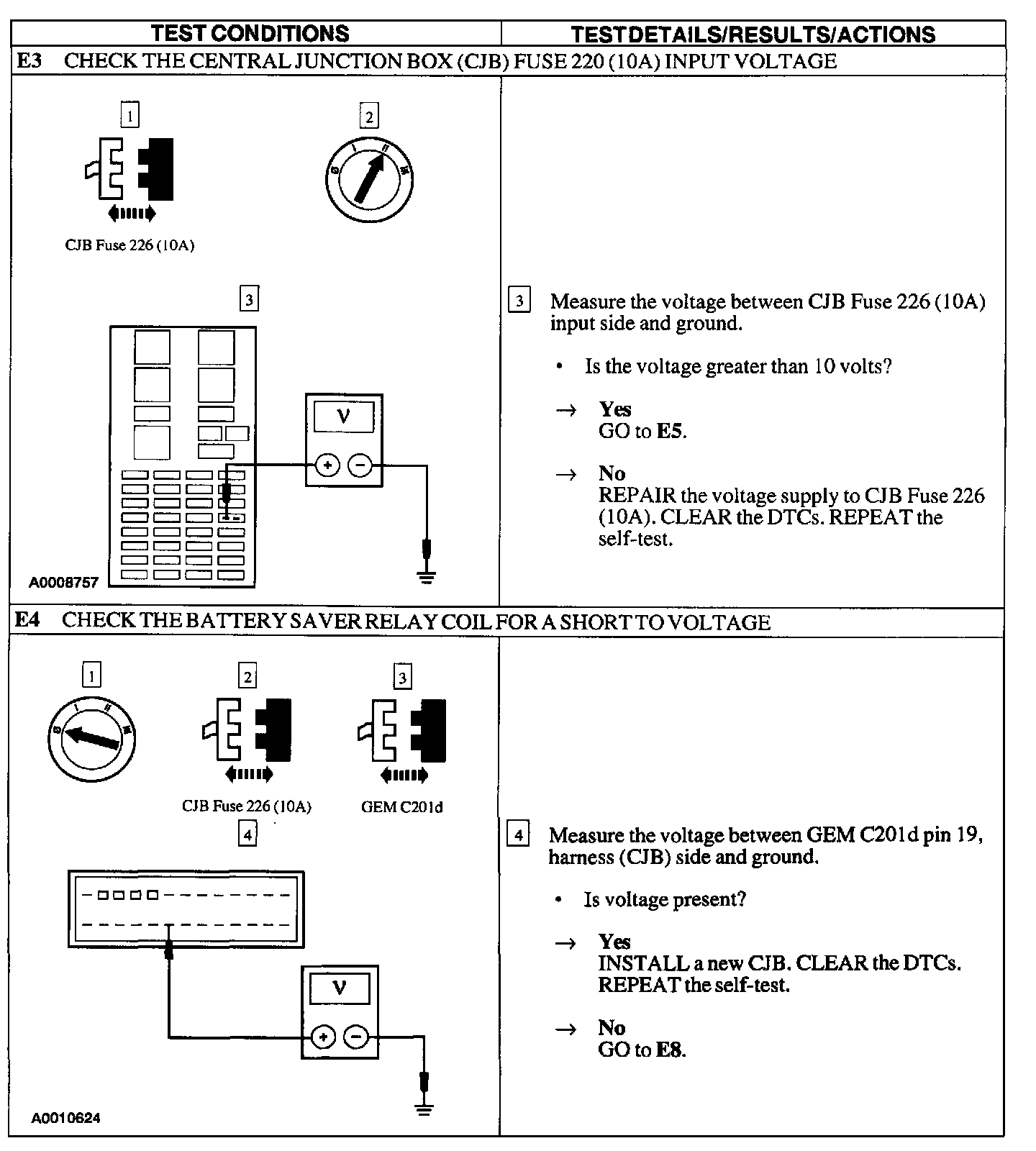

E3 - E4:






E5 - E6:






E7:






E8:
