Radio, Stereo, and Compact Disc: Service and Repair

Audio Unit - Radio

REMOVAL
1. Remove the instrument panel center finish panel.

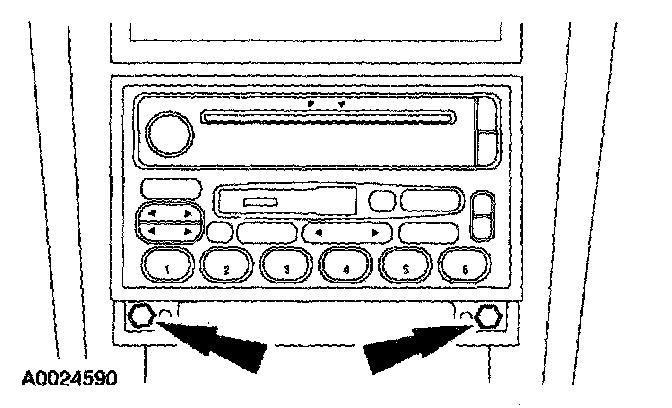

2. Remove the screws and the audio unit.
^ Disconnect the electrical connectors and the antenna lead-in cable.

INSTALLATION
1. To install, reverse the removal procedure.
