Vehicle Identification Number






IDENTIFICATION CODES

The vehicle identification number (VIN) is a seventeen-digit alphanumeric code. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.

Vehicle Identification Number

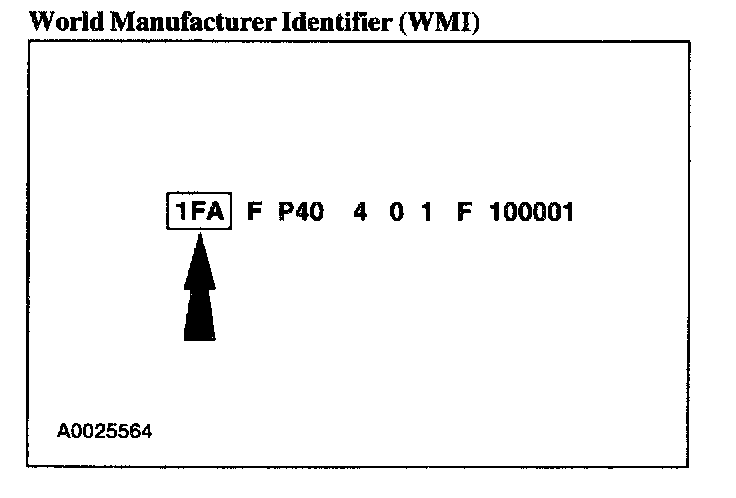

World Manufacturer Identifier (WMI):






The first three vehicle identification number (VIN) positions are the World Manufacturer Identifier (WMI).
^ 1FA - Ford, USA, passenger car
^ 1FD - Ford, USA, incomplete vehicle


Restraint Type Code:






The fourth VIN position is the vehicle restraint system type code.
^ F - Active safety belts - all positions, second generation air bags


Line, Series And Body Type Code:






Positions 5 through 7 indicate vehicle line, series and body type.
^ P40 - Two-door coupe
^ P44 - Two-door convertible
^ P42 - Two-door coupe, GT
^ P45 - Two-door convertible, GT
^ P46 - Two-door convertible, Cobra
^ P47 - Two-door coupe, Cobra

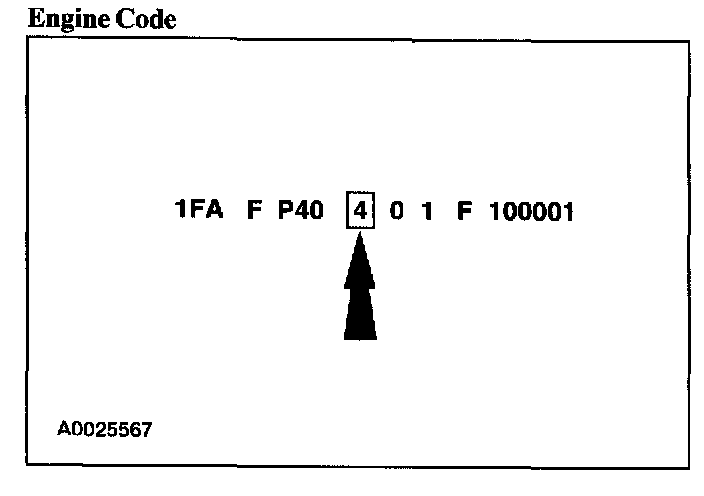

Engine Code:






The eighth VIN position is the engine displacement and number of cylinders code.
^ V - 4.6L, EFI (DOHC), eight cylinder
^ X - 4.6L, EFI (SOHC), eight cylinder
^ 4 - 3.8L, EFI, six cylinder


Computer Generated Check Digit:






The ninth VIN position is a government assigned, computer-generated check digit code (0-9).


Model Year Code:






The tenth VIN position is the model year code.
^ 1-2001

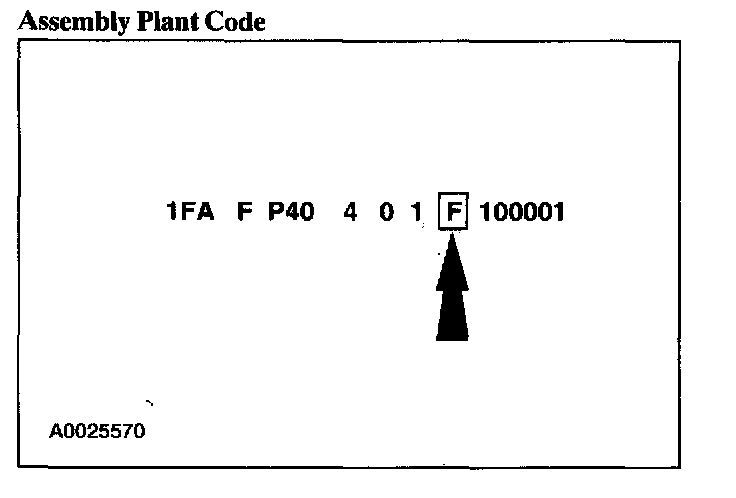

Assembly Plant Code:






The eleventh VIN position is the assembly plant code.
^ F - Dearborn, Michigan (USA)

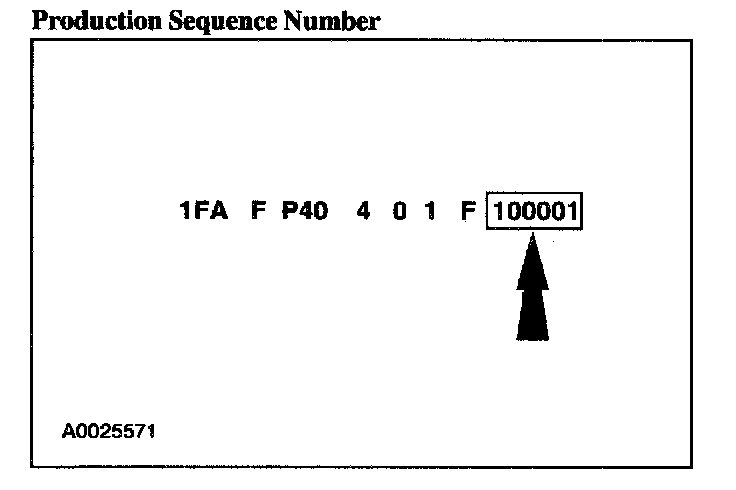

Production Sequence Number:






The last six VIN positions are the production sequence number. This number is also used as the vehicle serial and warranty number.
^ Ford - Begins at 100001
