Test A: Speed Control Is Inoperative

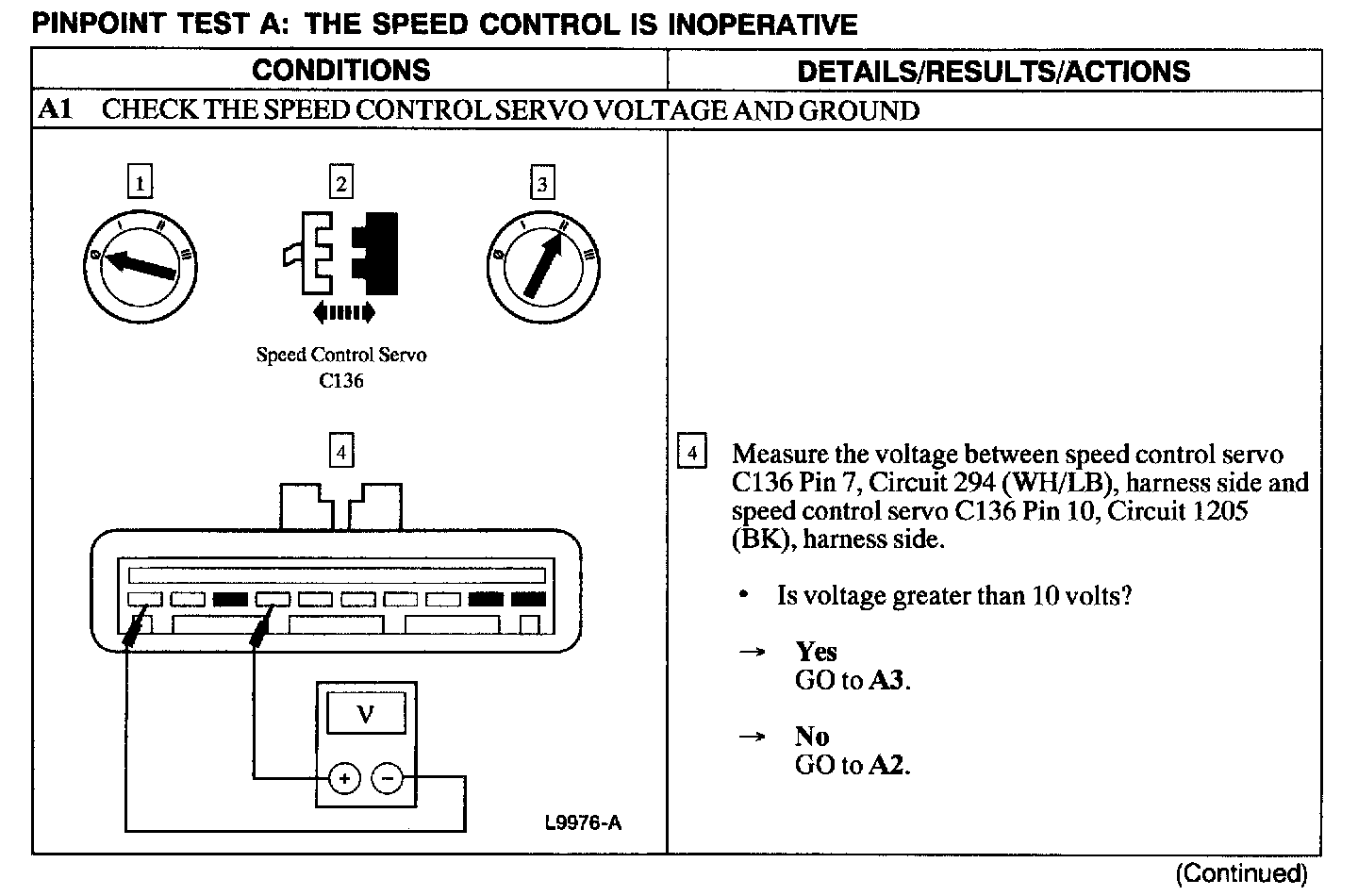

A1:

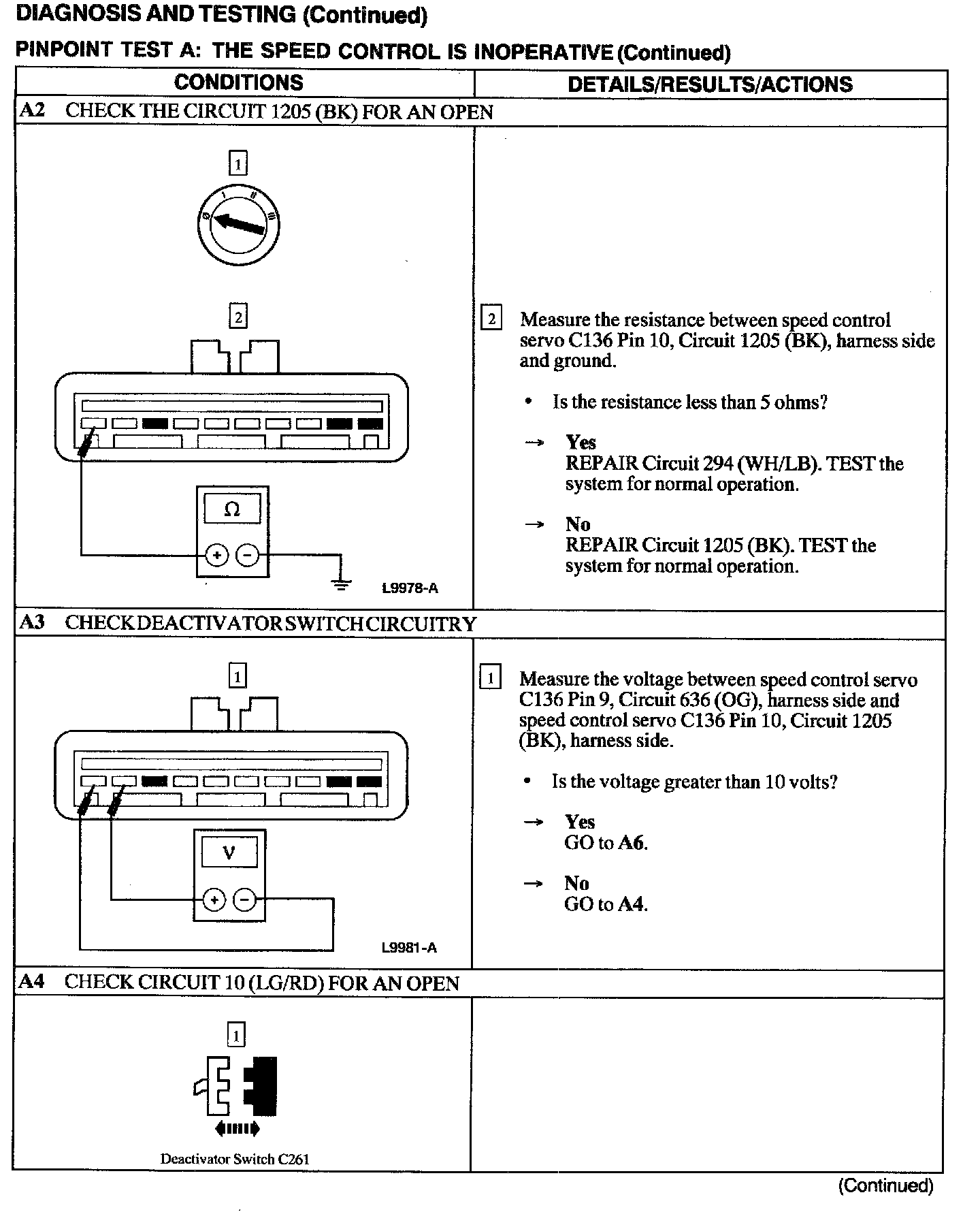

A2 - A4:






A4 - A6:






A7 - A8:

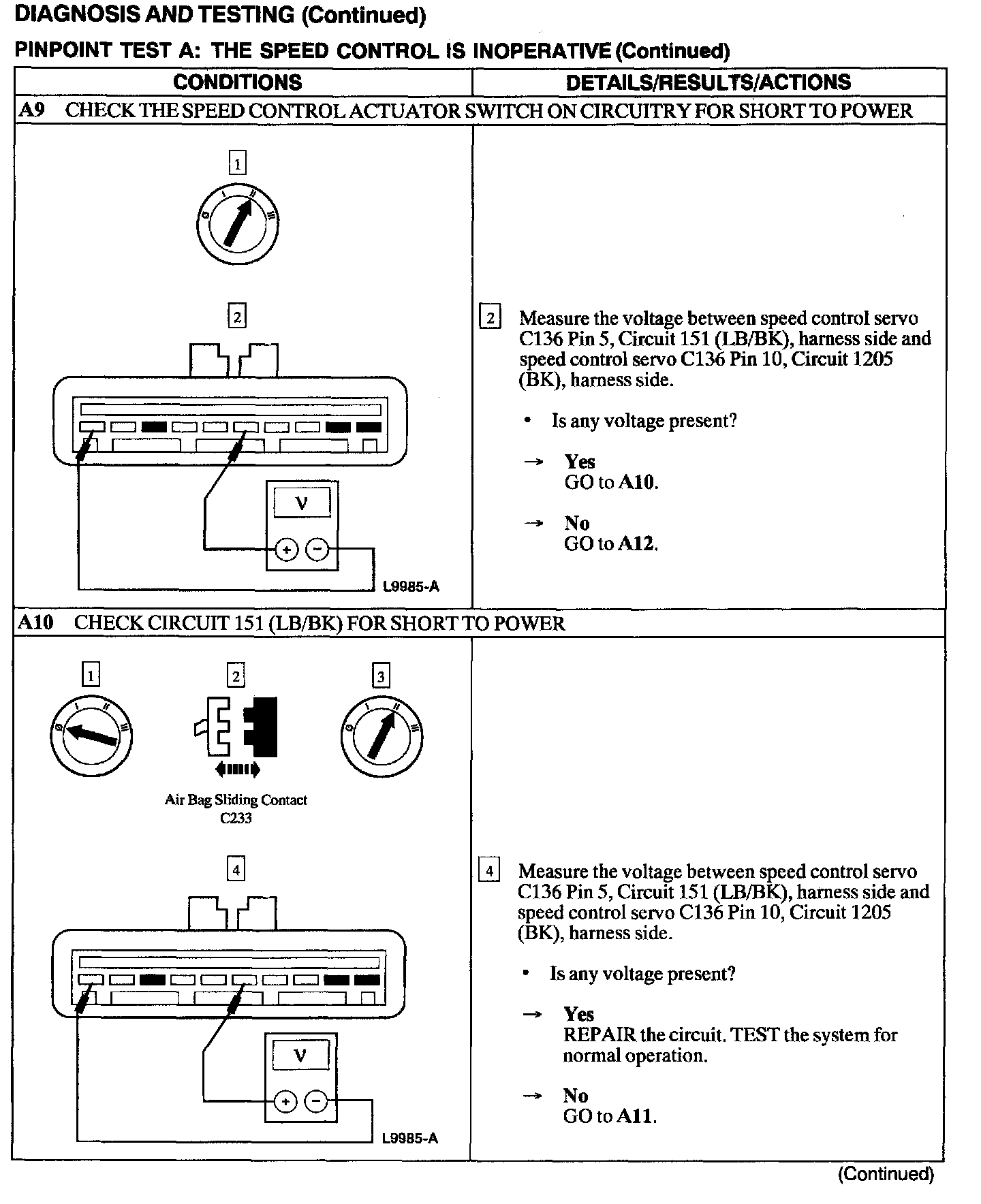

A9 - A10:

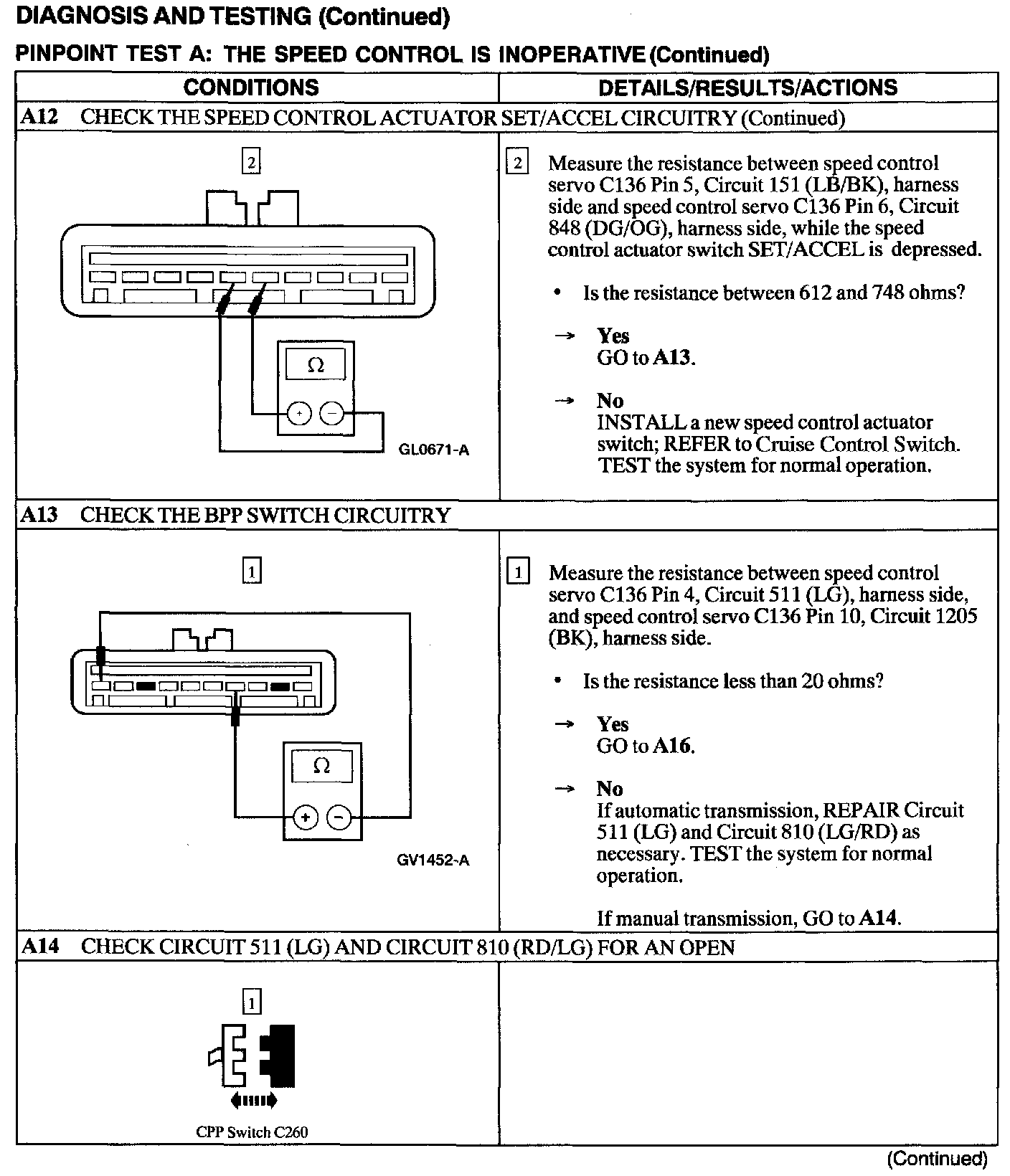

A11 - A12:






A12 - A14:






A14 - A16:






A16 - A17:
