Diagram Set 54 (Manual Climate Control System)
Diagram Set 54 (Manual Climate Control System)
Diagram 54-1:

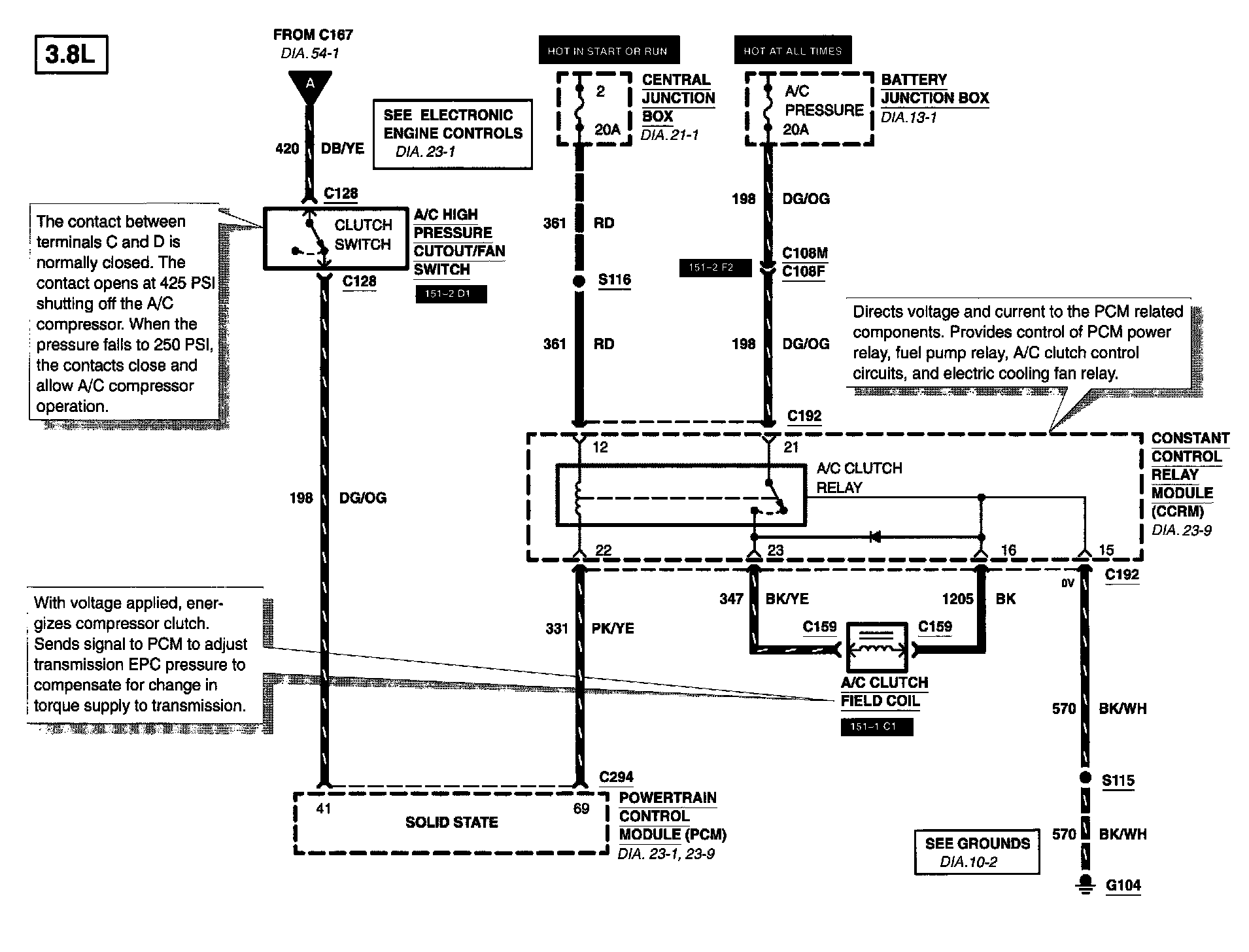

Diagram 54-2:
