Filling
FillingCAUTION:
^ Engine coolant provides freeze protection, boil protection, cooling efficiency and corrosion protection to the engine and cooling components. In order to obtain these protections, the engine coolant must be maintained at the correct concentration and fluid level in the degas bottle.
^ When adding engine coolant, use a 50/50 mixture of engine coolant and clean, drinkable water.
^ To maintain the integrity of the coolant and the cooling system:
^ Add Motorcraft Premium Engine Coolant VC-4-A (in Oregon VC-5, in Canada CXC-10) or equivalent meeting Ford specification ESE-M97B44-A.
^ Do not add orange-colored extended life coolant such as VC-2 or equivalent, meeting Ford specification WSS-M97B44-D. Mixing coolants may degrade the coolant's corrosion protection.
^ Do not add alcohol or methanol or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.
^ Do not mix with recycled coolant unless it meets the requirements of Ford specification ESE-M97B44-A. Not all coolant recycling processes meet this Ford specification; use of such a coolant may harm the engine and cooling system components.
1. Place the heater temperature selector in the maximum heat position.
2. CAUTION: On 3.8L engines, the vent plug must be removed before radiator fill or the engine may not fill completely.
NOTE: It is important to maintain engine coolant concentrate between 40 percent or -24° C (-11° F) and 60 percent or -52° C (-62° F).
Fill the engine cooling system with 50/50 mixture of water and engine coolant

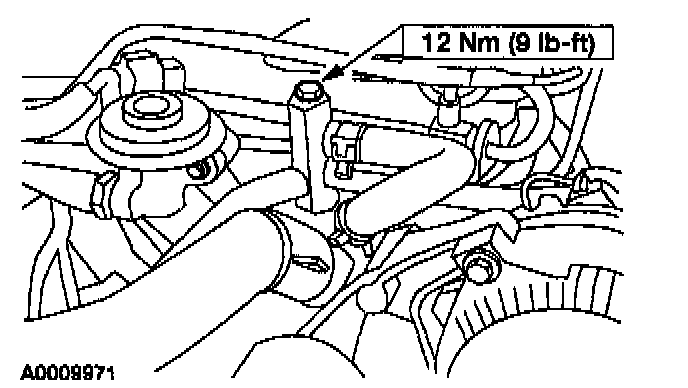

3. After filling the engine cooling system, add coolant to the vent until full. Install the vent plug.
4. Leave the pressure relief cap off and run the engine until it reaches normal operating temperature.
5. Stop the engine and add the correct engine coolant mixture to the degas bottle/coolant expansion tank until the coolant level is between the COOLANT FILL LEVEL marks.
6. Turn the engine off and allow the cooling system to cool. Check the level in the degas bottle/coolant expansion tank, and add a 50/50 mix as needed.
