Air Conditioning Switch: Service and Repair

REMOVAL
1. Remove the climate control assembly.

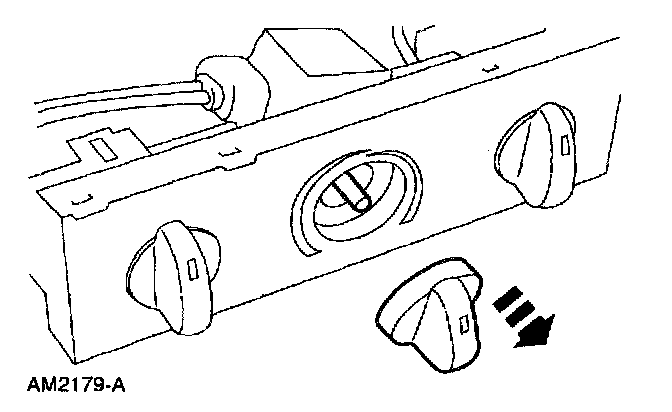

2. Remove the knob.

NOTE: All three switches are removed the same.

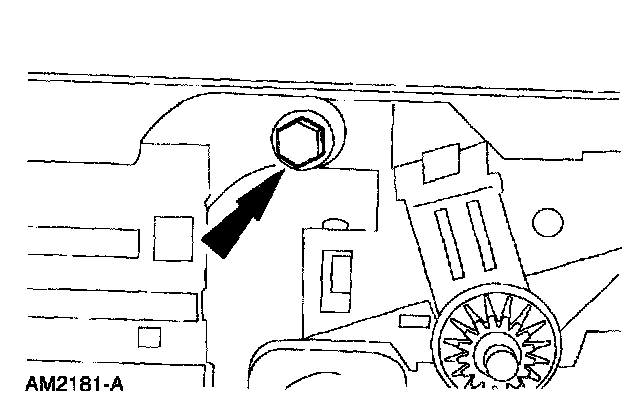

3. Remove the screw.

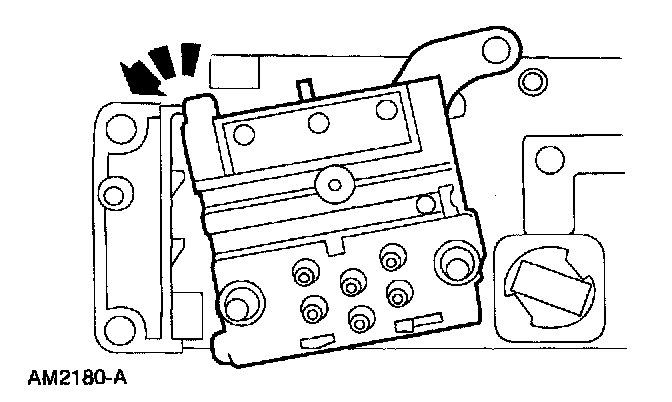

4. Rotate the switch and remove it from the control head assembly.

INSTALLATION
1. To install, reverse the removal procedure.
