Conventional

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.







2. Remove the headlamp switch knob.
1 Pull out the headlamp switch knob and insert a thin tool in the slot to release the knob from the shaft.







3. Remove the screws and remove the instrument cluster finish panel.

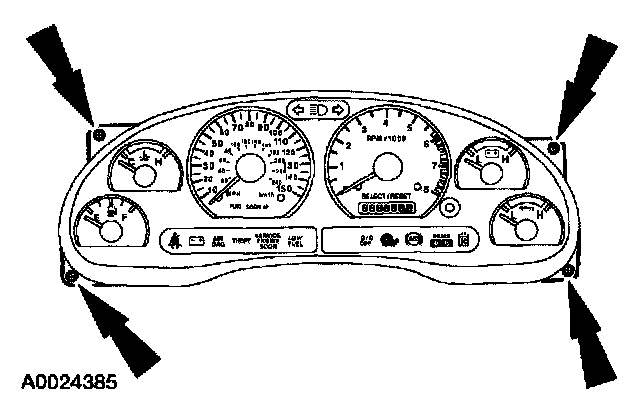

4. Remove the screws and pull the instrument panel forward to expose the electrical connector.

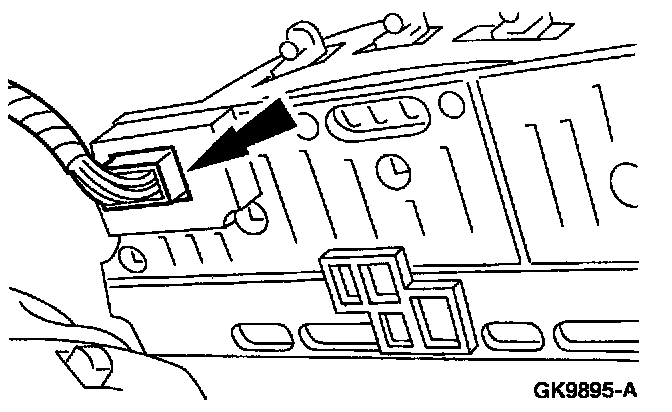

5. Disconnect the electrical connector and remove the instrument cluster.

INSTALLATION
1. To install, reverse the removal procedure.
