Instrument Cluster

REMOVAL
1. Remove the instrument cluster.

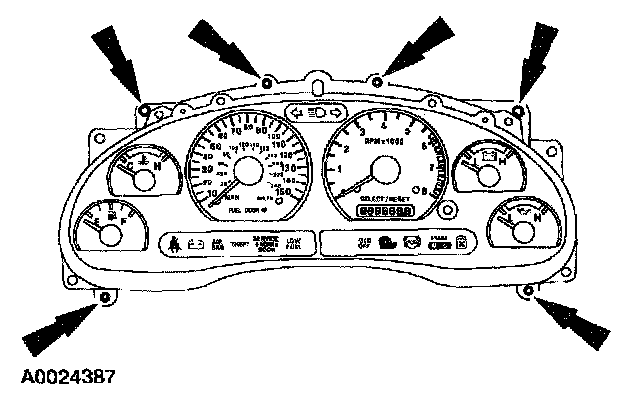

2. Remove the screws and remove the instrument cluster lens.

INSTALLATION
1. To install, reverse the removal procedure.
