Ground Distribution Diagrams (By Component Name)

Diagram 10-1:

Anti-lock Brake Control Module
Battery Junction Box
Daytime Running Lamps Module
Fog Lamps Cutout Relay
Left Fog Lamp
Left Front Park/Turn Lamp
Left Headlamp
Speed Control Servo
Starter Relay
Windshield Washer Pump Motor

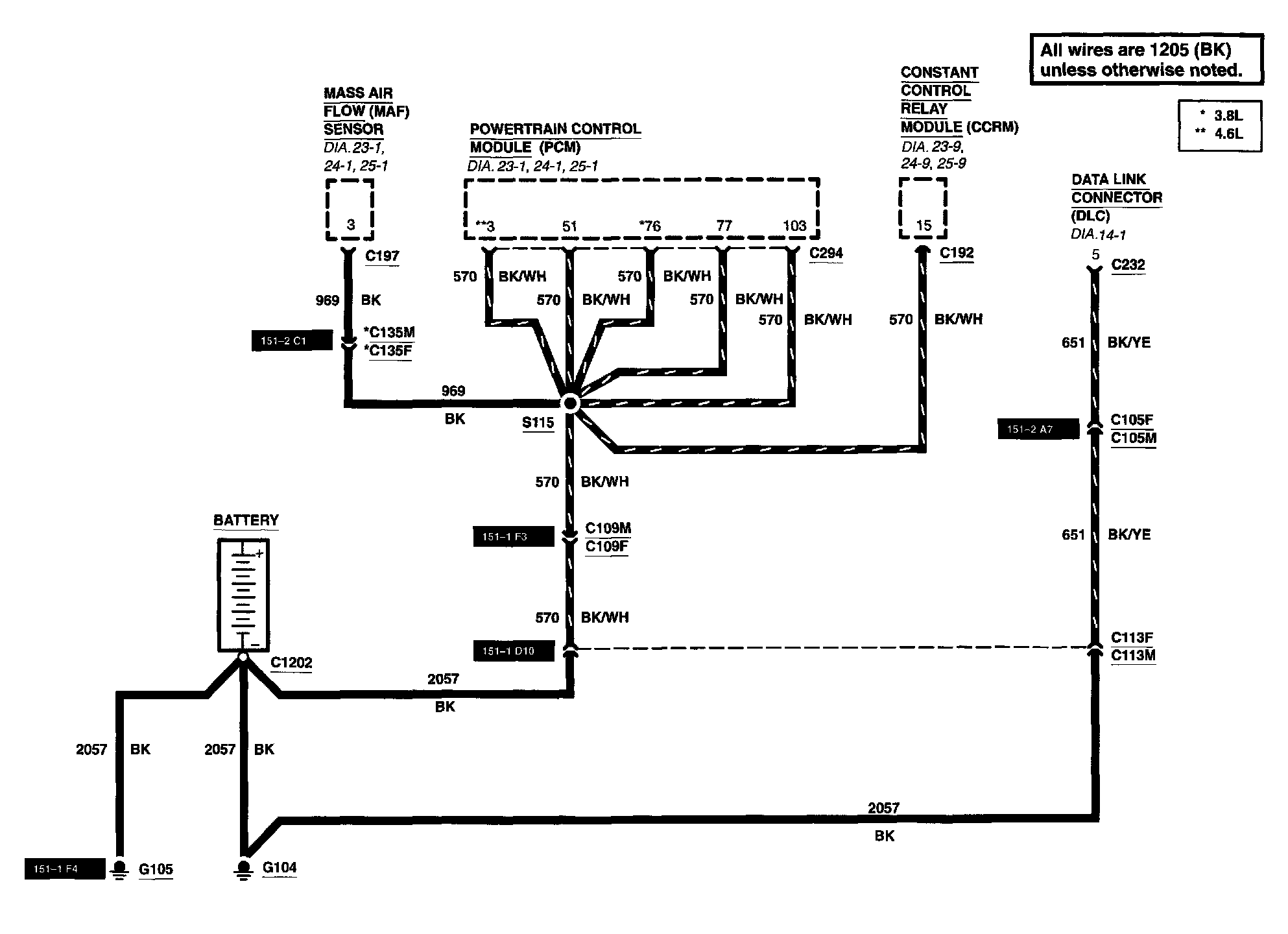

Diagram 10-2:

Battery
Constant Control Relay Module
Data Link Connector
Mass Air Flow Sensor
Powertrain Control Module

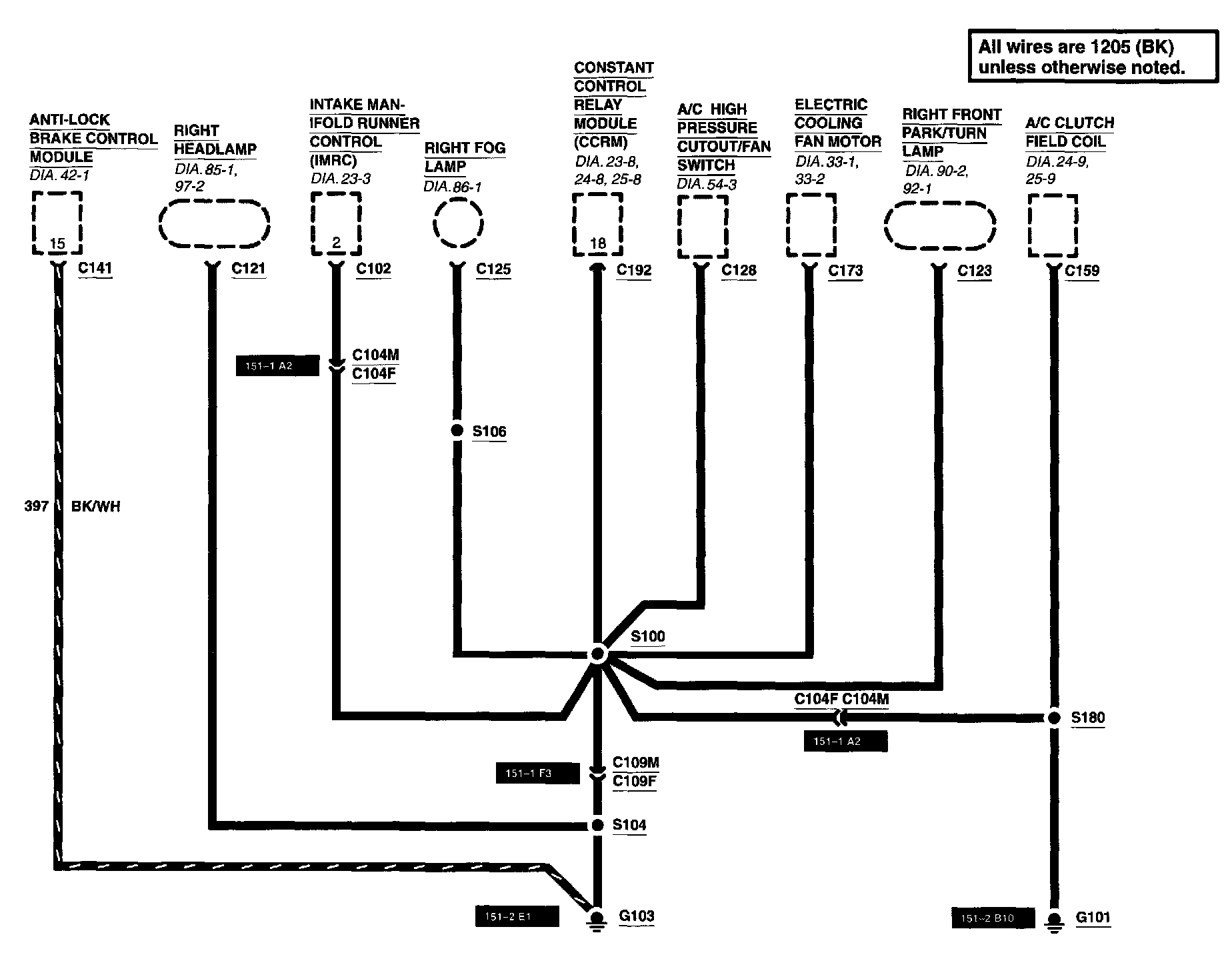

Diagram 10-3:

A/C Clutch Field Coil
A/C High Pressure Cutoff/Fan Switch
Anti-Lock Brake Control Module
Constant Control Relay Module
Electric Cooling Fan Motor
Intake Manifold Runner Control
Right Fog Lamp
Right Front Park/Turn Lamp
Right Headlamp

Diagram 10-4:

Crankshaft Position Sensor Shield
Powertrain Control Module

Diagram 10-5:

Fuel Pump Assembly
Generic Electronic Module
Instrument Cluster
Left Rear Speaker Subwoofer Amplifier
Passive Anti-Theft Transceiver Module
Radio
Restraint Control Module
Right Rear Speaker Subwoofer Amplifier

Diagram 10-6:

A/C-Heater Control Illumination
Auxiliary Power Socket
Blower Motor Resistor Assembly
Blower Motor Switch
Cigar Lighter
Data Link Connector
Electronic Flasher
Fog Lamp Switch
Generic Electronic Module
Instrument Cluster
Radio
Rear Window Defrost Control Switch
Shift Lock Actuator
Traction Control Switch

Diagram 10-7:

Fuel Pump Assembly Shield
Fuel Pump Driver Module
High Mounted Stop/Luggage Compartment Lamp Assembly
Left License Lamp
Left Rear Park/Stop/Turn Lamp #1
Left Rear Park/Stop/Turn Lamp #2
Left Rear Side Lamp
Left Reversing Lamp
Left Turn Lamp
Luggage Compartment Lid Release Solenoid
Right License Lamp
Right Rear Park/Stop/Turn Lamp #1
Right Rear Park/Stop/Turn Lamp #2
Right Rear Side Lamp
Right Reversing Lamp
Right Turn Lamp

Diagram 10-8:

Brake Fluid Level Switch
Driver Seat Control Switch
Interior/Map Lamps
Left Power Lumbar Compressor Motor
Left Vanity Mirror Lamp
Lower Relay
Raise Relay
Right Door Ajar Switch
Right Vanity Mirror Lamp
Safety Belt Switch
Windshield Wiper Motor

Diagram 10-9:

Exterior Rear View Mirror Switch
Left Door Ajar Switch
Master Window/Door Lock Control Switch
Transmission Control Switch
