Front Seat Backrest

REMOVAL

All vehicles
1. Remove the seat.
2. Remove the front seat backrest latch.







3. Remove the pivot bolt and seat backrest.

Vehicles with standard power lumbar

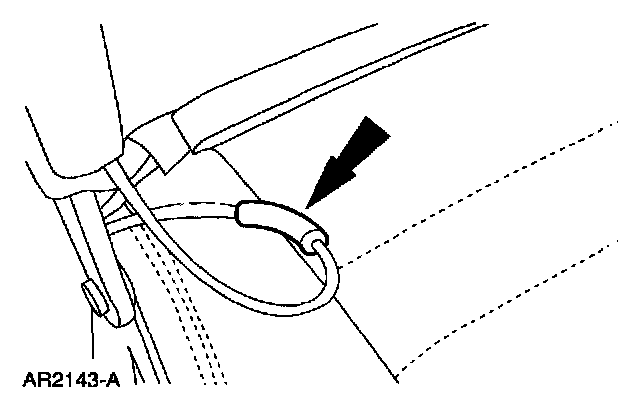

4. Disconnect the power lumbar air supply hose.

NOTE: When installing the seat backrest pivot bolt, make sure the hose is in front of the pivot bolt.

Vehicles with power bolster and lumbar







5. Disconnect the power lumbar and bolster hoses.

NOTE: When installing the seat backrest pivot bolt, make sure the hoses are in front of the pivot bolt.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
