Home >> Ford >> 2003 >> Mustang V8-4.6L SC VIN Y >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Locations

Exhaust System: Locations

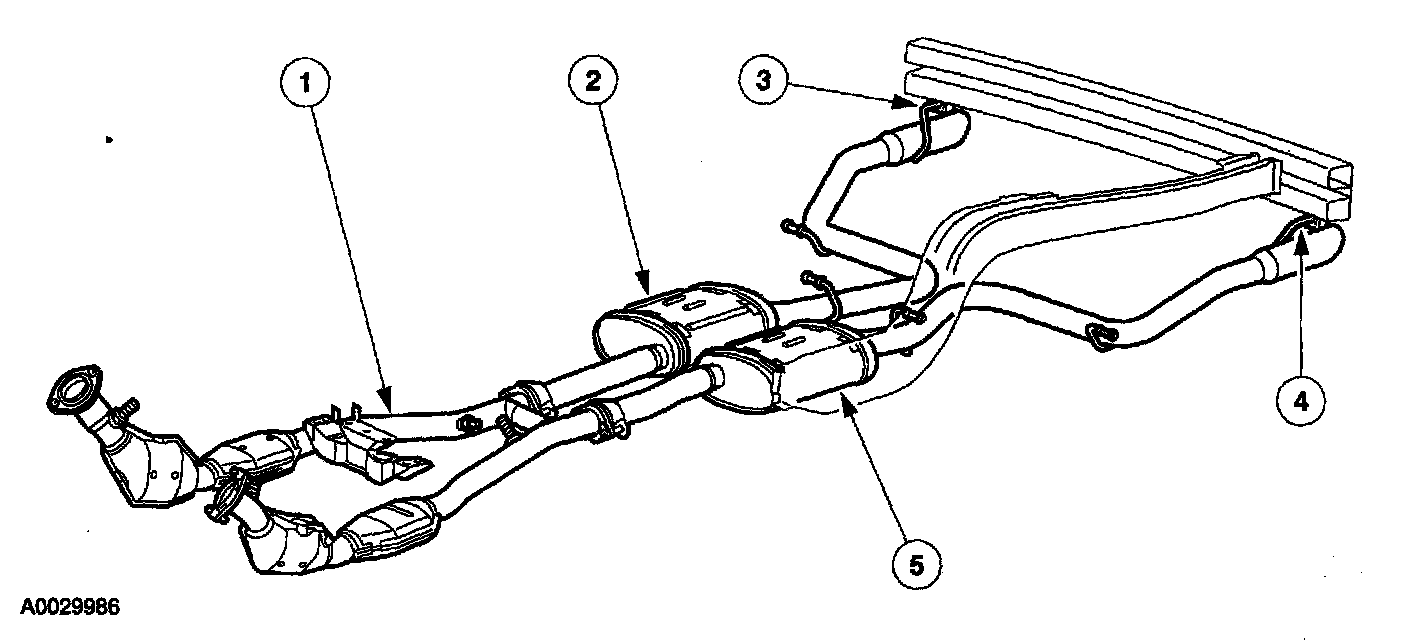

Exhaust System - 4.6L (4V)

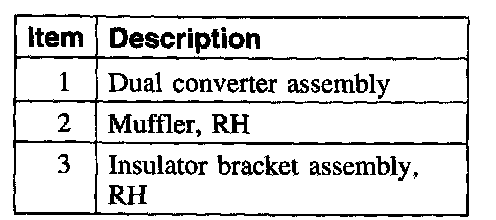

Part 1 Of 3:

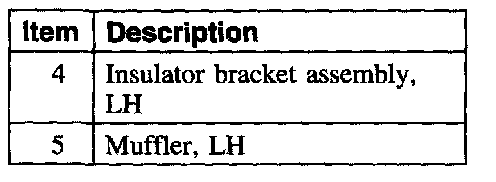

Part 2 Of 3:




Part 3 Of 3:
