Test A: Incorrect/Erratic Direction of Airflow From Outlet
Test A: Incorrect/Erratic Direction of Airflow From Outlet

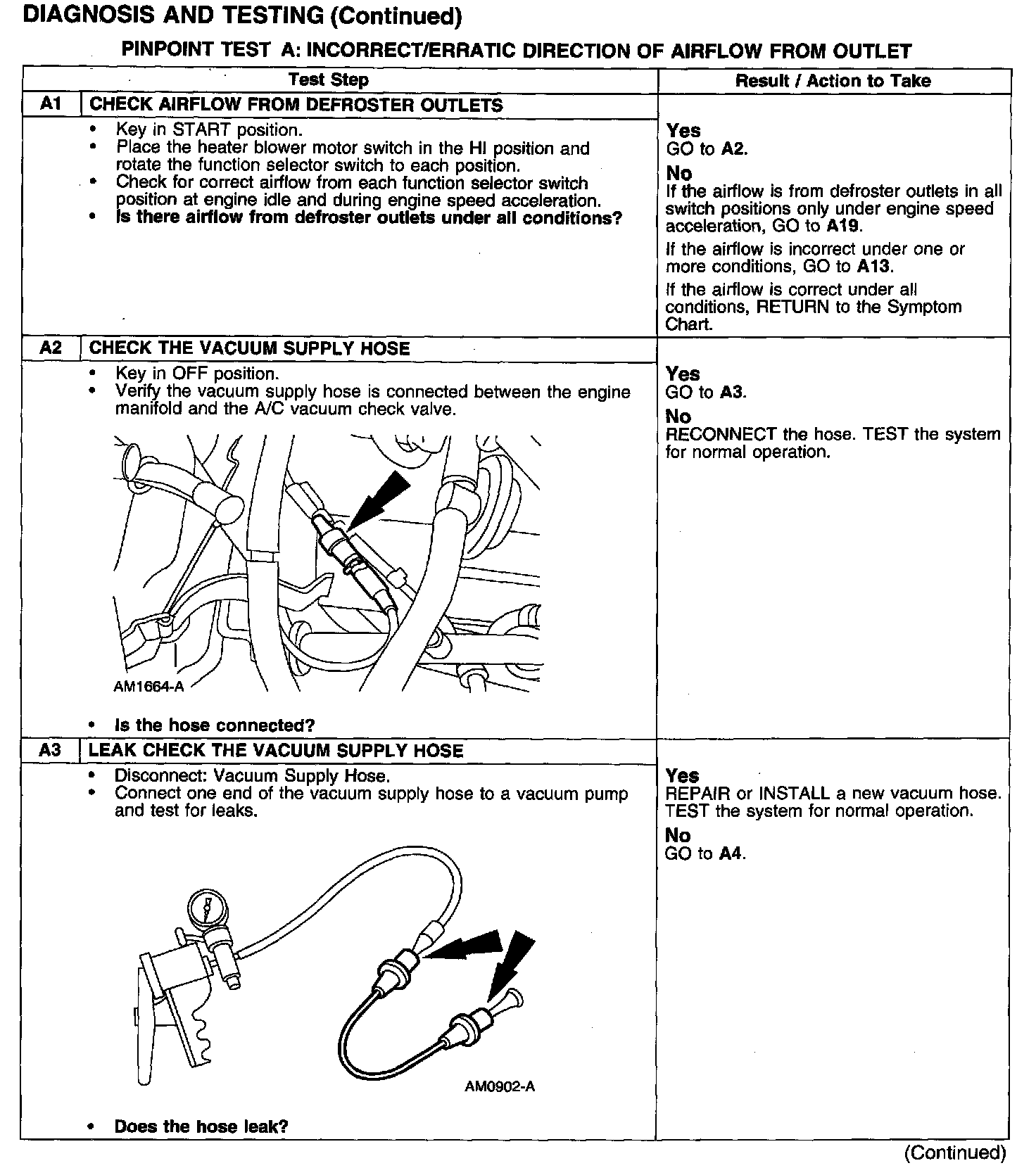

A1 - A3:
A4 - A6:

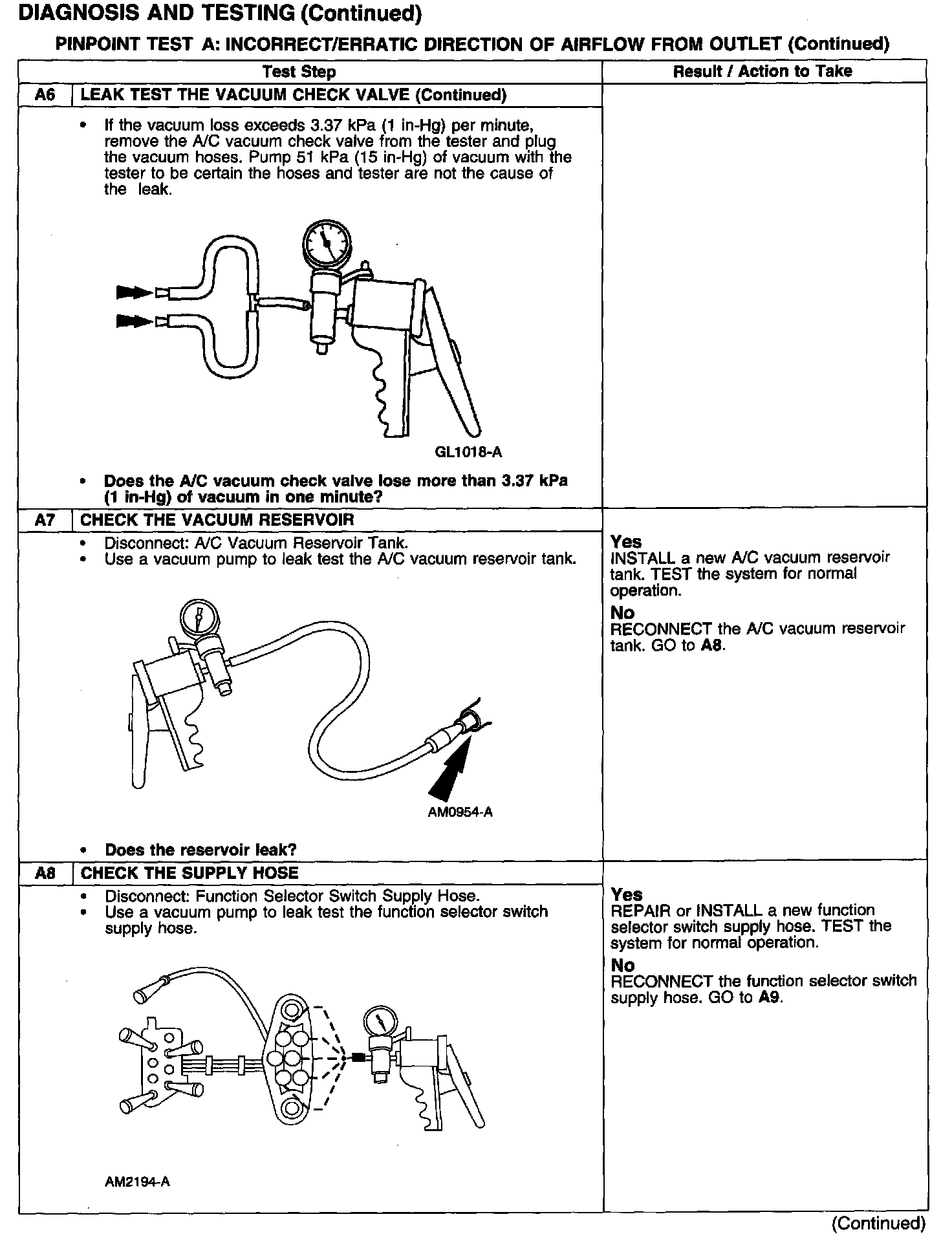

A6 - A8:
A8 - A10:

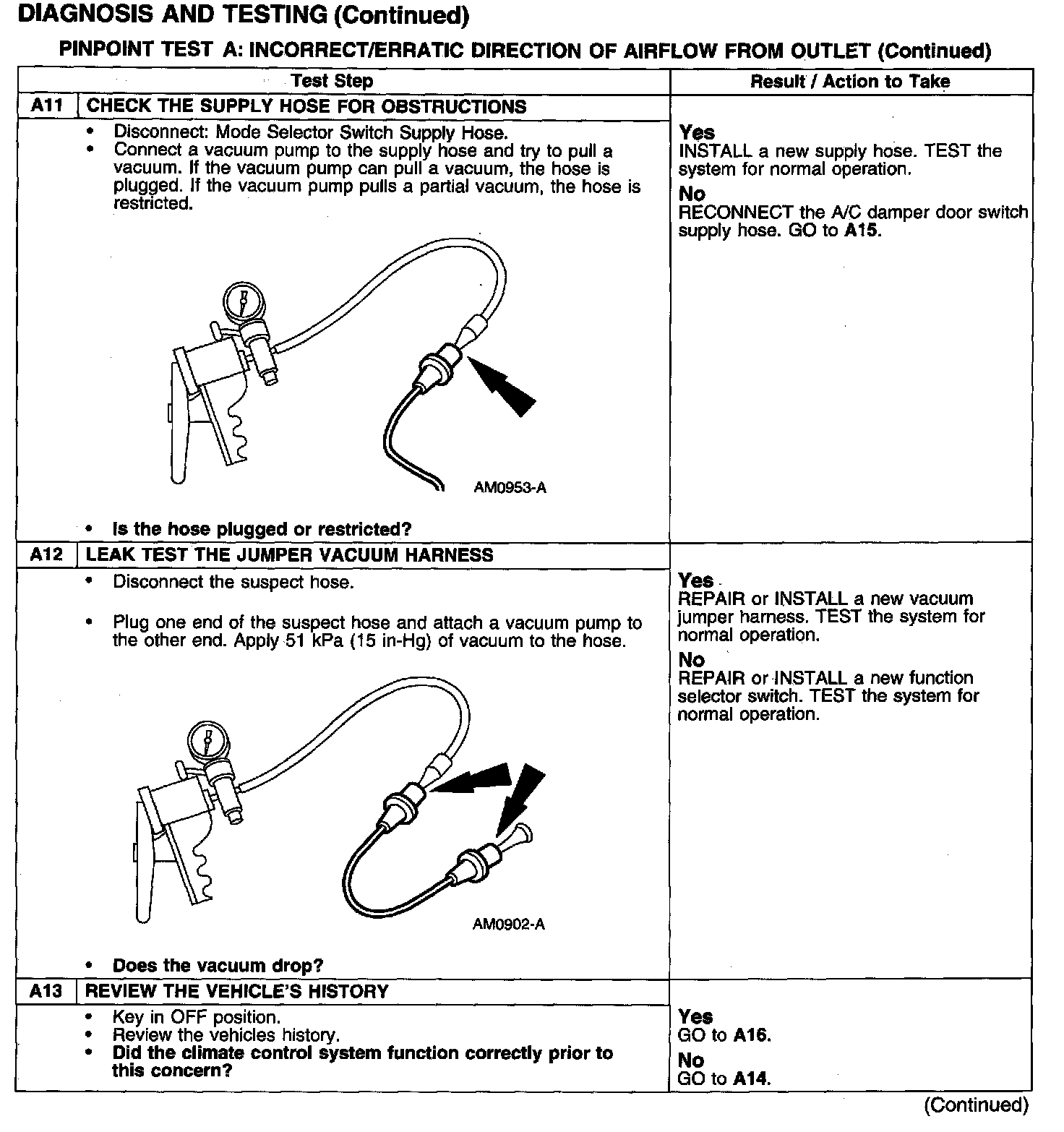

A11 - A13:
A14 - A16:

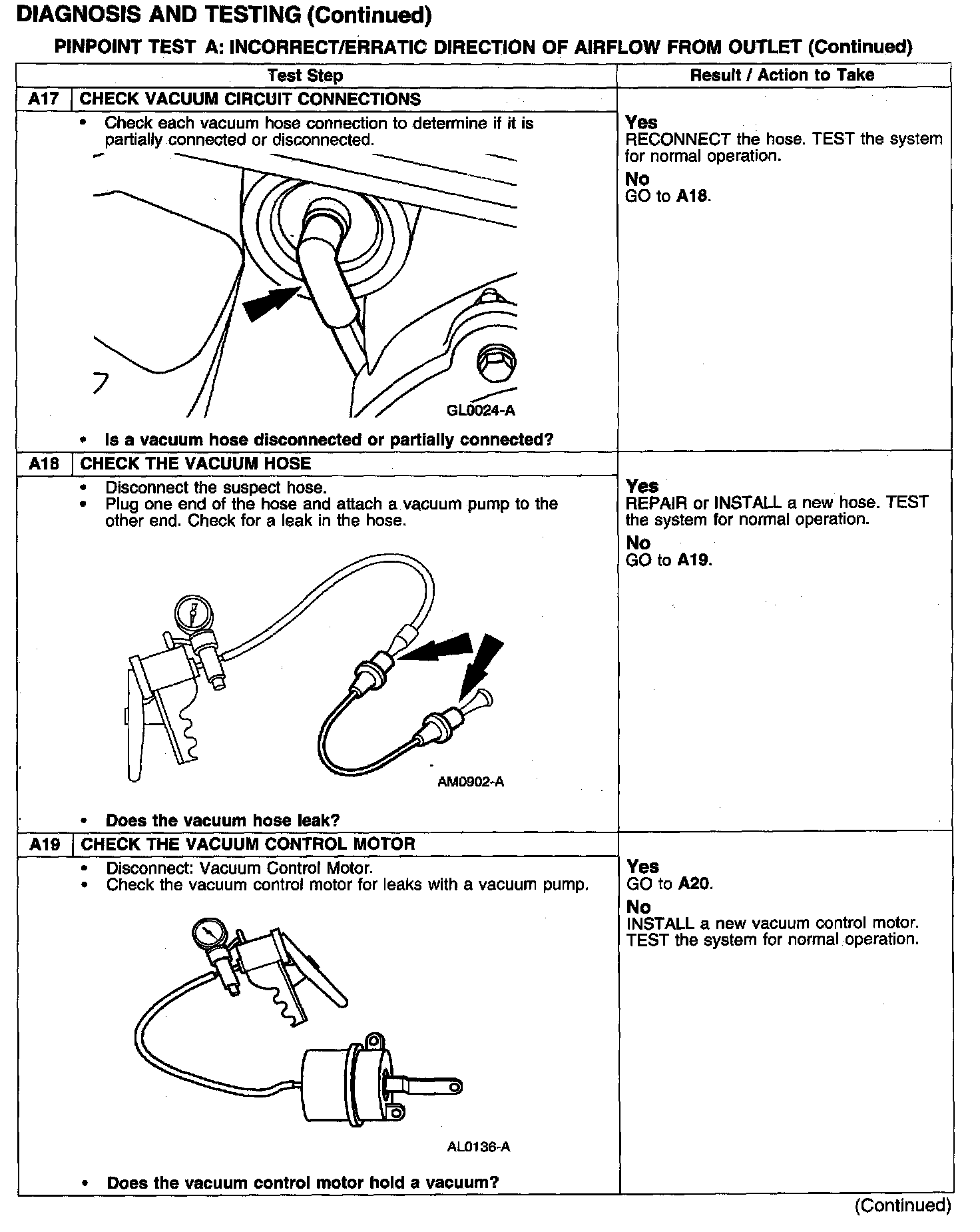

A17 - A19:

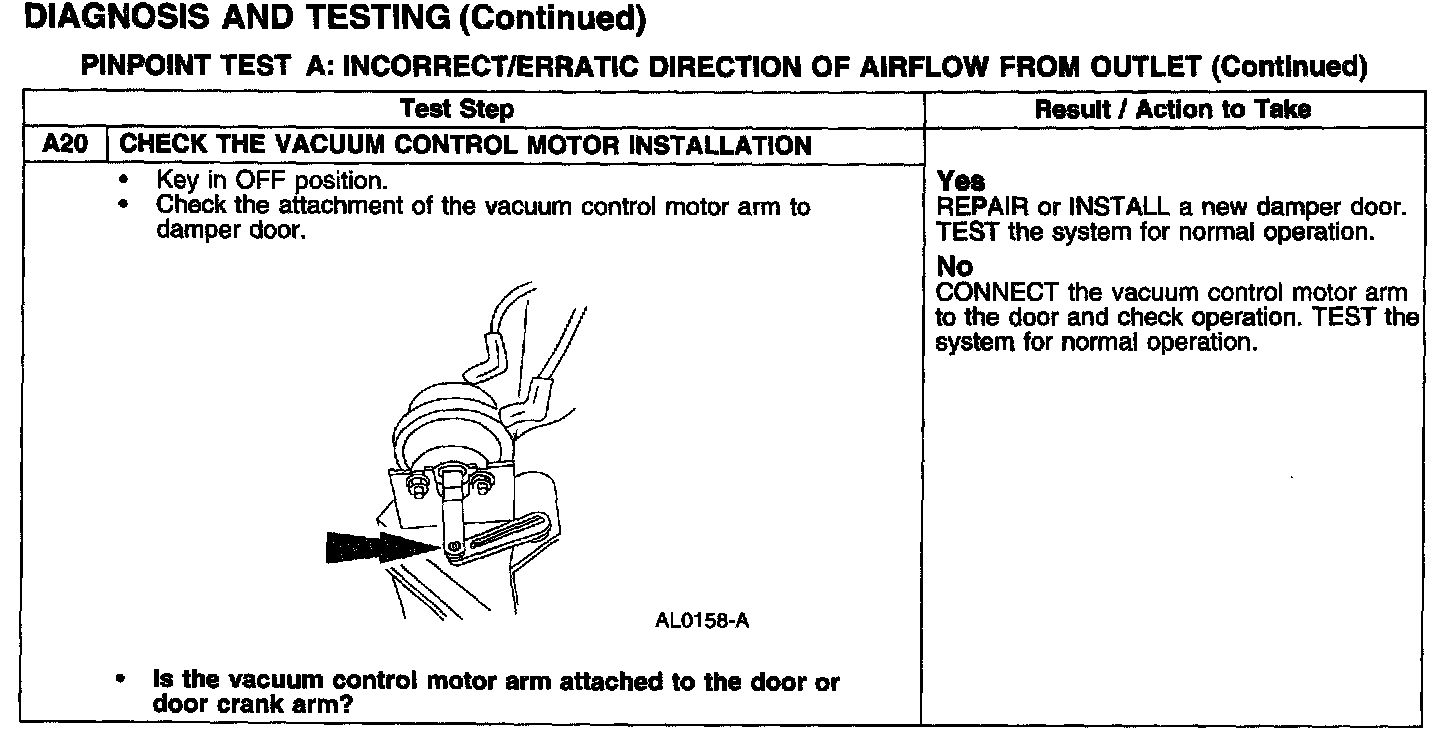

A20:
