Pressure Plate

Pressure plate diameter 4.6L (4V) 280 mm (11.0 inch)

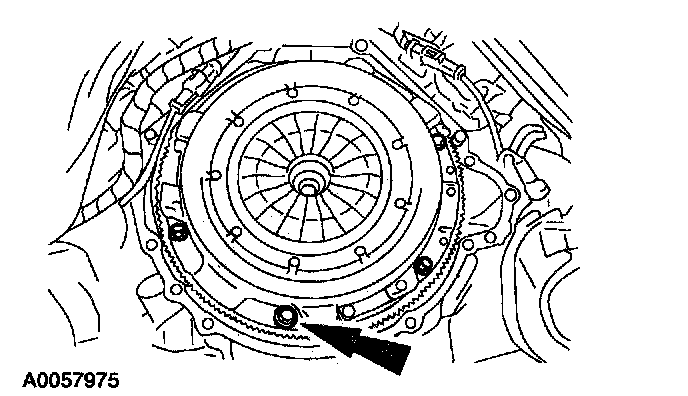

Pressure plate-to-flywheel bolts 4.6L (4V) 45 + 60° Nm (33 + 60° ft. lbs.)





Tighten the pressure plate bolts in two stages.
Stage 1: Tighten the bolts to 45 Nm (33 ft. lbs.).
Stage 2: Tighten the bolts an additional 60°.
