Front

Arm-Lower

Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to ensure correct retention of these parts.

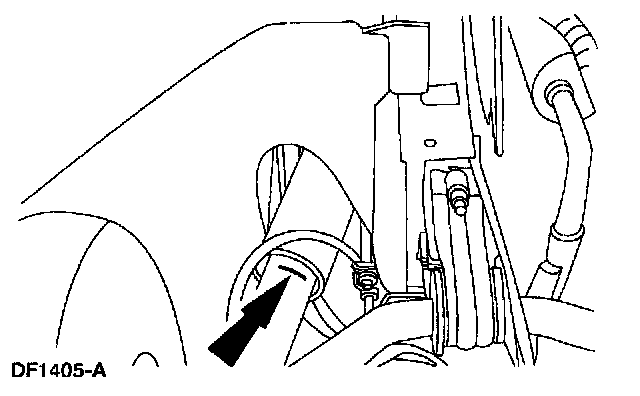

1. Mark the front shock absorber relative to the protective sleeve with the vehicle in a static, level ground position (curb height).
2. Raise the vehicle on a hoist.
3. Remove the wheel and tire assembly.
4. Remove the front brake disc shield.





5. CAUTION: To prevent damage to the front suspension lower arm do not remove the nut from the ball joint at this time.

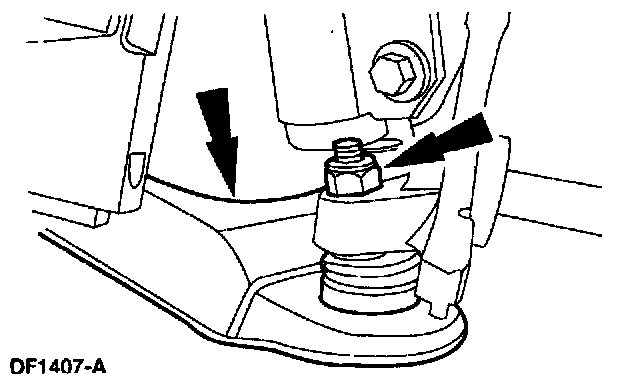

Disconnect the ball joint stud from the arm.
^ Loosen the nut two or three turns.
^ Sharply rap on the front wheel spindle at the ball joint connection to disconnect the ball joint stud.
6. Remove the front coil spring.

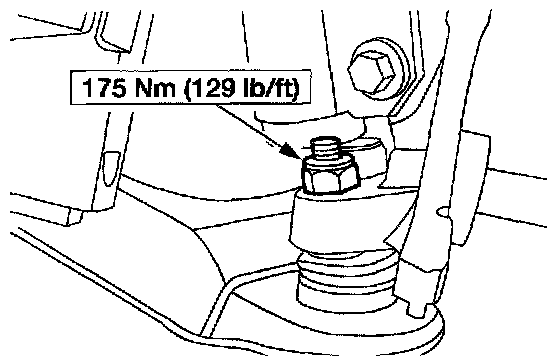

7. Remove the nut and the front suspension lower control arm. Discard the nut.

Installation





1. To install, reverse the removal procedure.
2. Check wheel alignment. Adjust if necessary.
