Transmission Filler Tube

Transmission Filler Tube

Removal

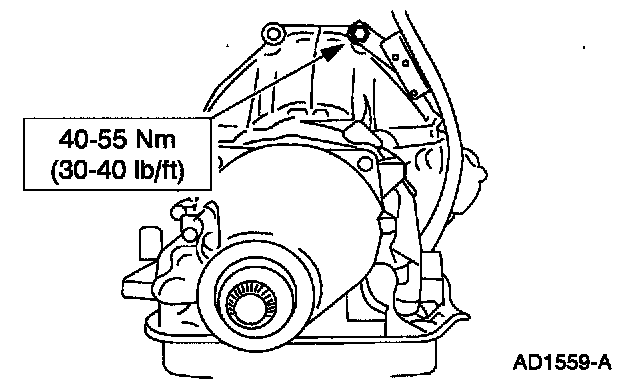

1. Remove the bolt.

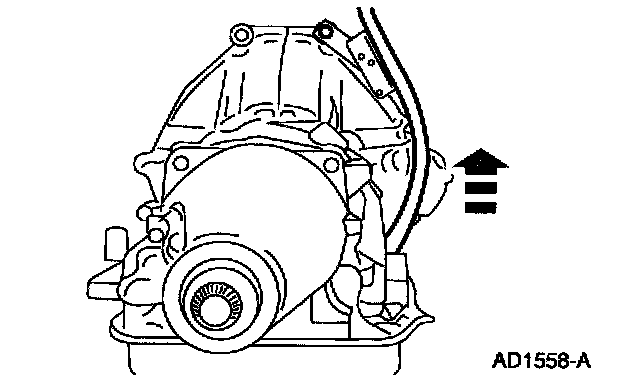

2. Remove the fluid filler tube.

Installation

1. To install, reverse the removal procedure.
