Manual Transaxle/Transmission-T56

Transmission Draining and Filling

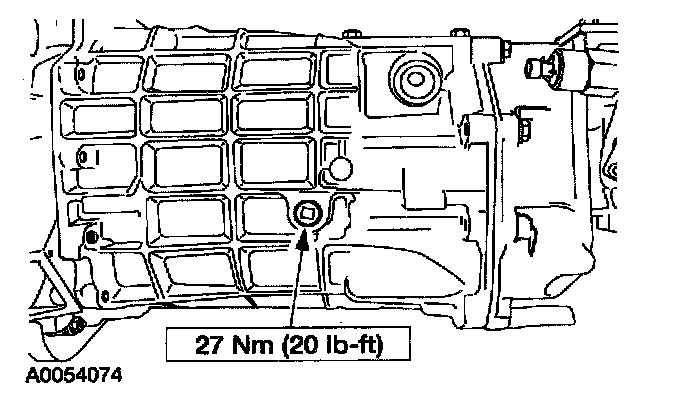

1. Remove the drain plug and drain the transmission.
^ Position a suitable drain pan under the transmission.
2. Clean and install the drain plug.





3. NOTE: Before removing, clean the area around the filler plug.

Remove the filler plug.





4. Using a suitable oil suction gun, fill the transmission to the correct level with the specified fluid.
^ Transmission capacity is 3.9 liters (4.1 quarts).
