Disassembly and Assembly
FRONT SEAT BACKRESTDISASSEMBLY
All vehicles

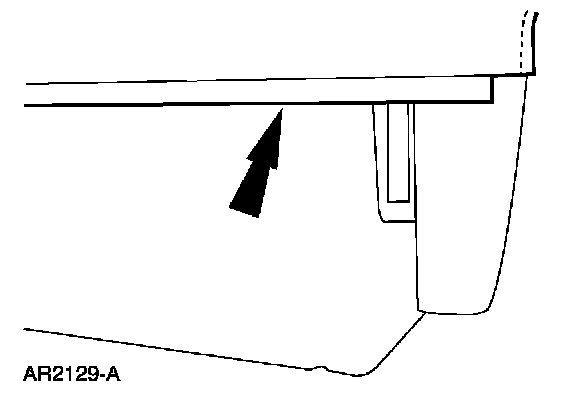

1. Remove the front seat backrest.

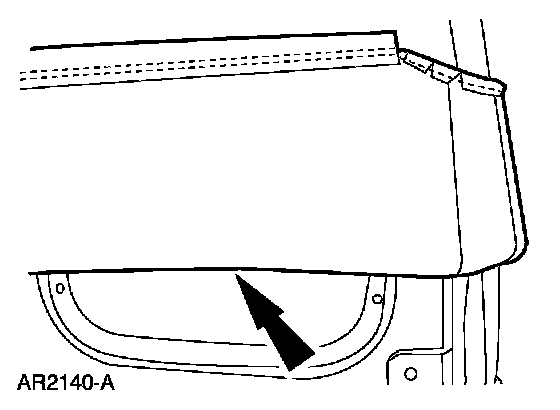

2. Release the J-clip.

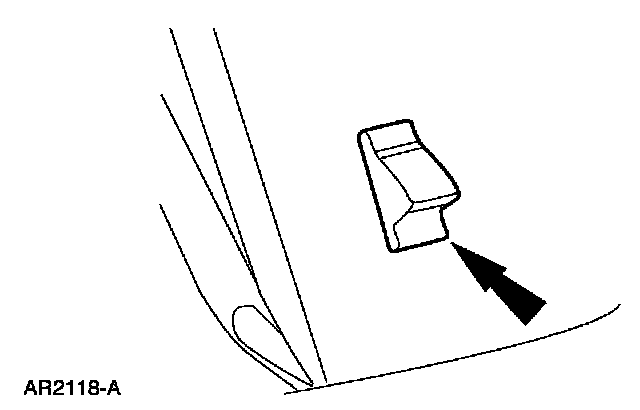

3. Remove the seat backrest latch handle knob.
4. NOTE: Seat backrest cover and foam pad removed for clarity.

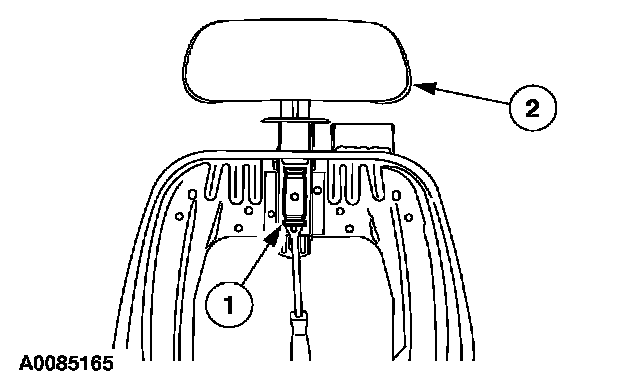

Remove the front seat backrest head restraint.
1 Using a suitable tool, pry between the backrest trim cover to release the front bottom retainer clip.
2 Remove the head restraint.

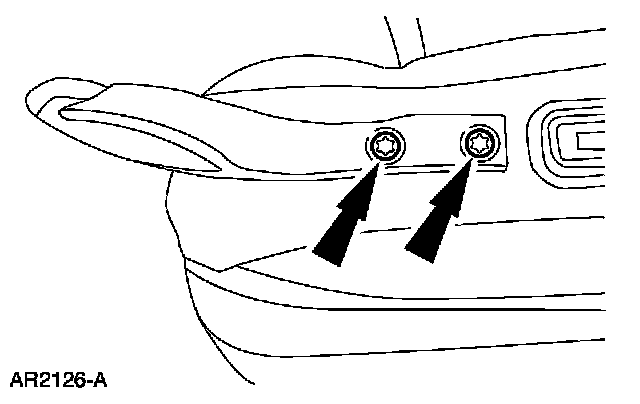

5. Remove the screws and the safety belt guide.

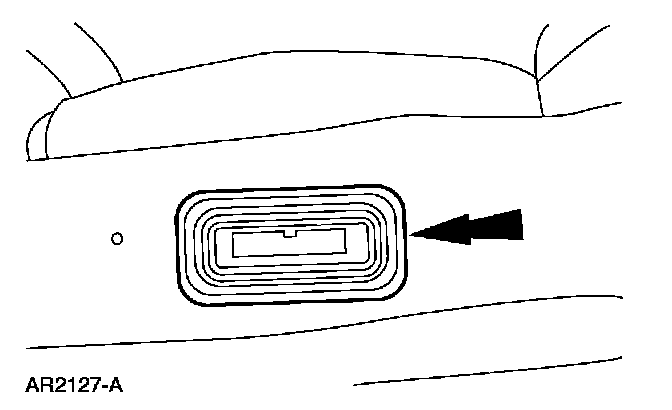

6. Remove the front seat headrest guide rod sleeve.
7. Pull the seat backrest trim cover upward.
8. Remove the hog rings.

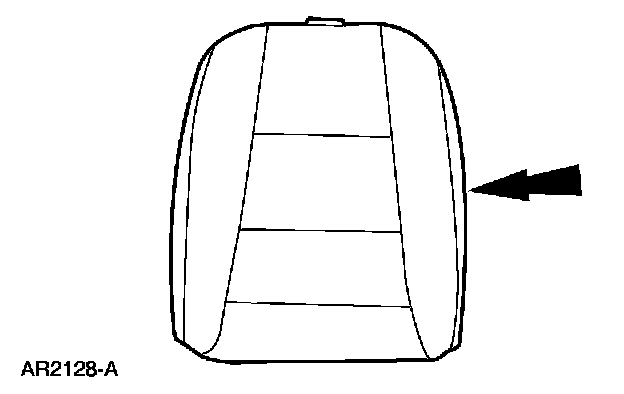

9. Remove the front seat backrest trim cover from the front seat backrest pad.
10. Release the front seat backrest frame from the front seat backrest foam pad.
Vehicles with standard power lumbar
11. Remove the seat backrest lumbar adjuster pad.
Vehicles with power bolster and lumbar
12. Remove the two screws and the seat backrest lumbar and bolster adjuster pad.
ASSEMBLY
All vehicles
1. To assemble, reverse the disassembly procedure.
