Heating and Air Conditioning

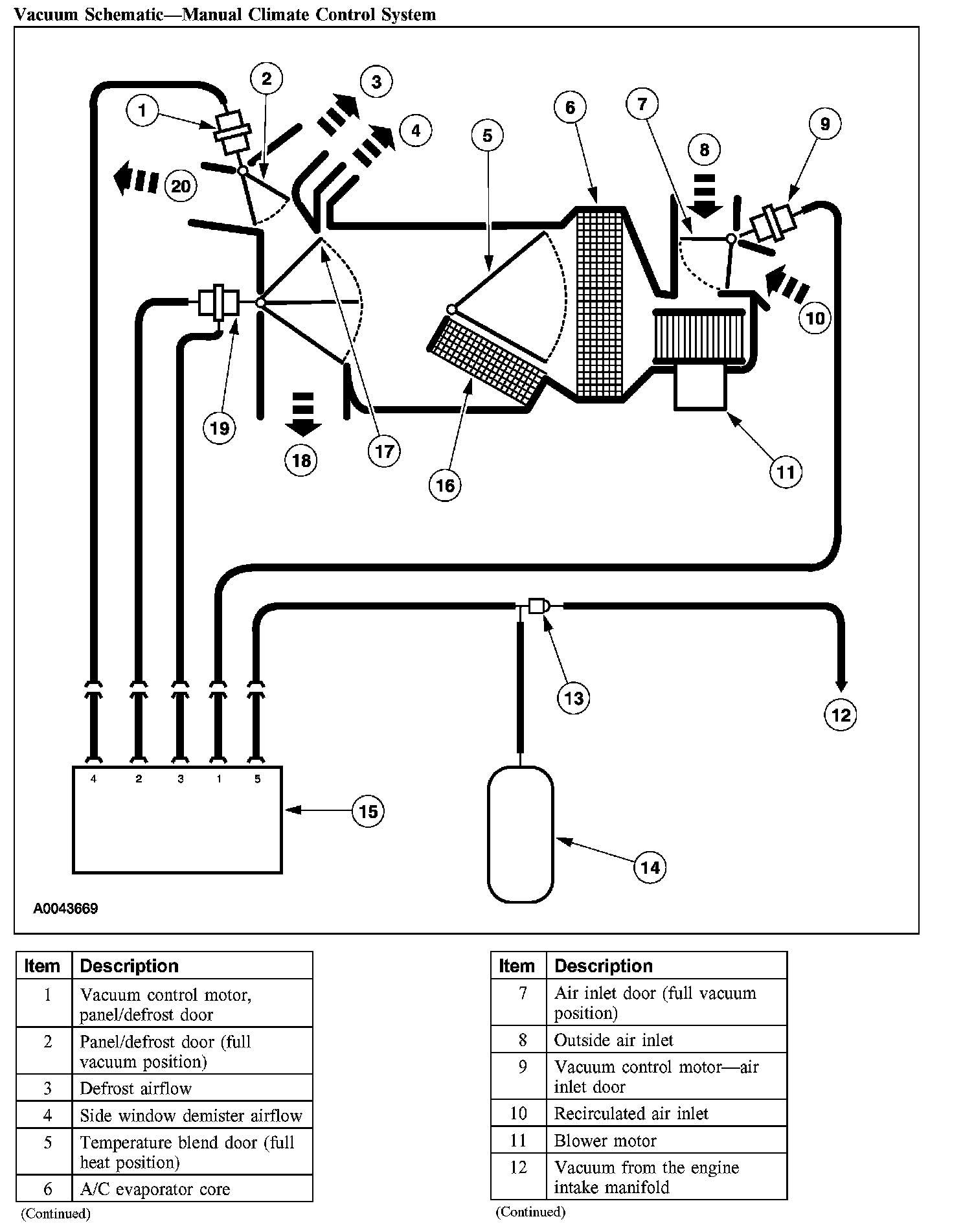

Vacuum Schematic - Manual Climate Control System, Part 1:

Vacuum Schematic - Manual Climate Control System, Part 2:

Function Selector Switch Vacuum Connector:

Function Selector Switch Vacuum Application Chart:
