Cylinder Heads

Cylinder Head





Special Tool(s)

Disassembly and Assembly

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.

1. Remove the spark plugs if necessary.

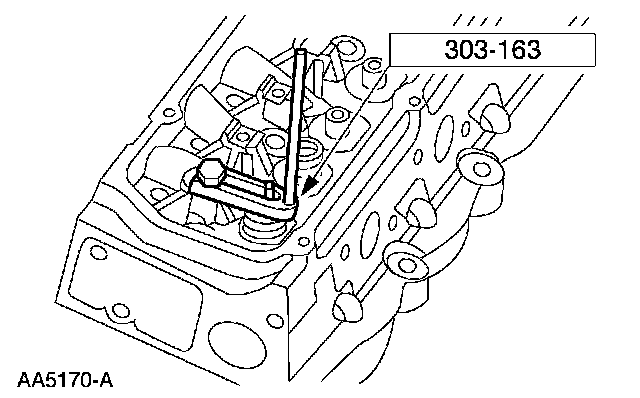

2. Using the special tool, compress the valve springs.





3. Remove the following:
1. The valve spring retainer key.
2. The valve spring retainers.
3. The valve springs.
4. The valve stem seals and seats.
4. Inspect the components.

5. CAUTION: Lubricate the parts with clean engine oil before installing.

To assemble, reverse the disassembly procedure.
