Conventional

INSTRUMENT CLUSTER

REMOVAL

All vehicles

1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.

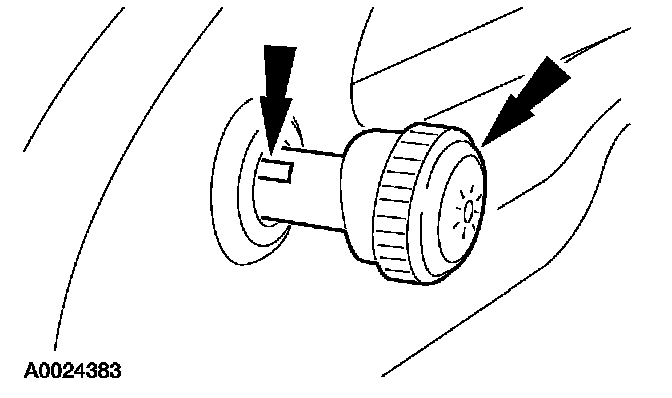

2. Remove the headlamp switch knob.
- Pull out the headlamp switch knob and insert a thin tool in the slot to release the knob from the shaft.







3. Remove the screws and remove the instrument cluster finish panel.

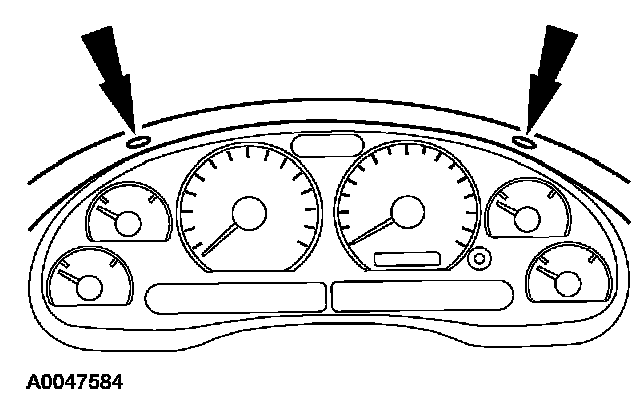

4. Remove the screws and pull the instrument cluster forward to expose the electrical connector.

Cobra only







5. Disconnect the electrical connectors and boost pressure line and remove the instrument cluster.

Except Cobra

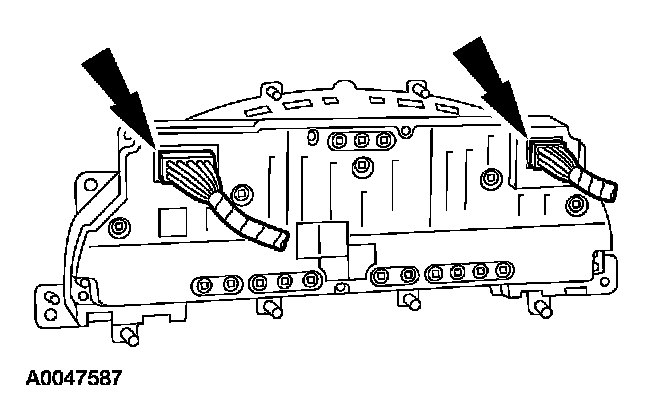

6. Disconnect the electrical connectors and remove the instrument cluster.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
