Fog Lamp Assembly - GT

LAMP ASSEMBLY - FOG LAMP (GT)

REMOVAL
1. Raise and support the vehicle.







2. Remove the screw.







3. Partially lower the vehicle and remove the fog lamp assembly.

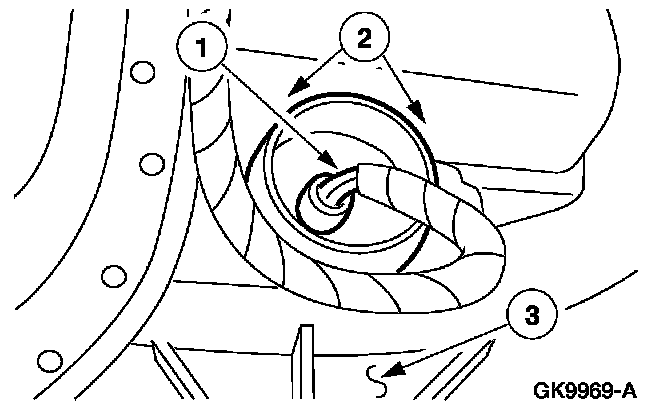

1 Disconnect the electrical connector.
2 Remove the two screws.
3 Remove the fog lamp assembly and replace the bulb if necessary.

INSTALLATION

1. NOTE: Be sure the fascia clip is correctly installed on the bottom side of the fog lamp assembly bracket.

To install, reverse the removal procedure.
