Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation

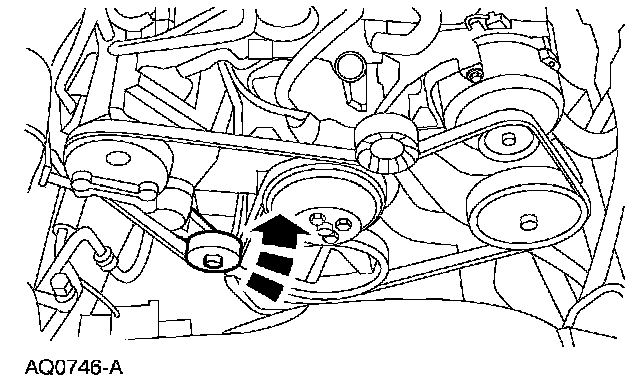

1. Rotate the drive belt tensioner counterclockwise and remove the drive belt.

2. NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
- Refer to Accessory Drive for drive belt routing.
