Symptom Related Diagnostic Procedures

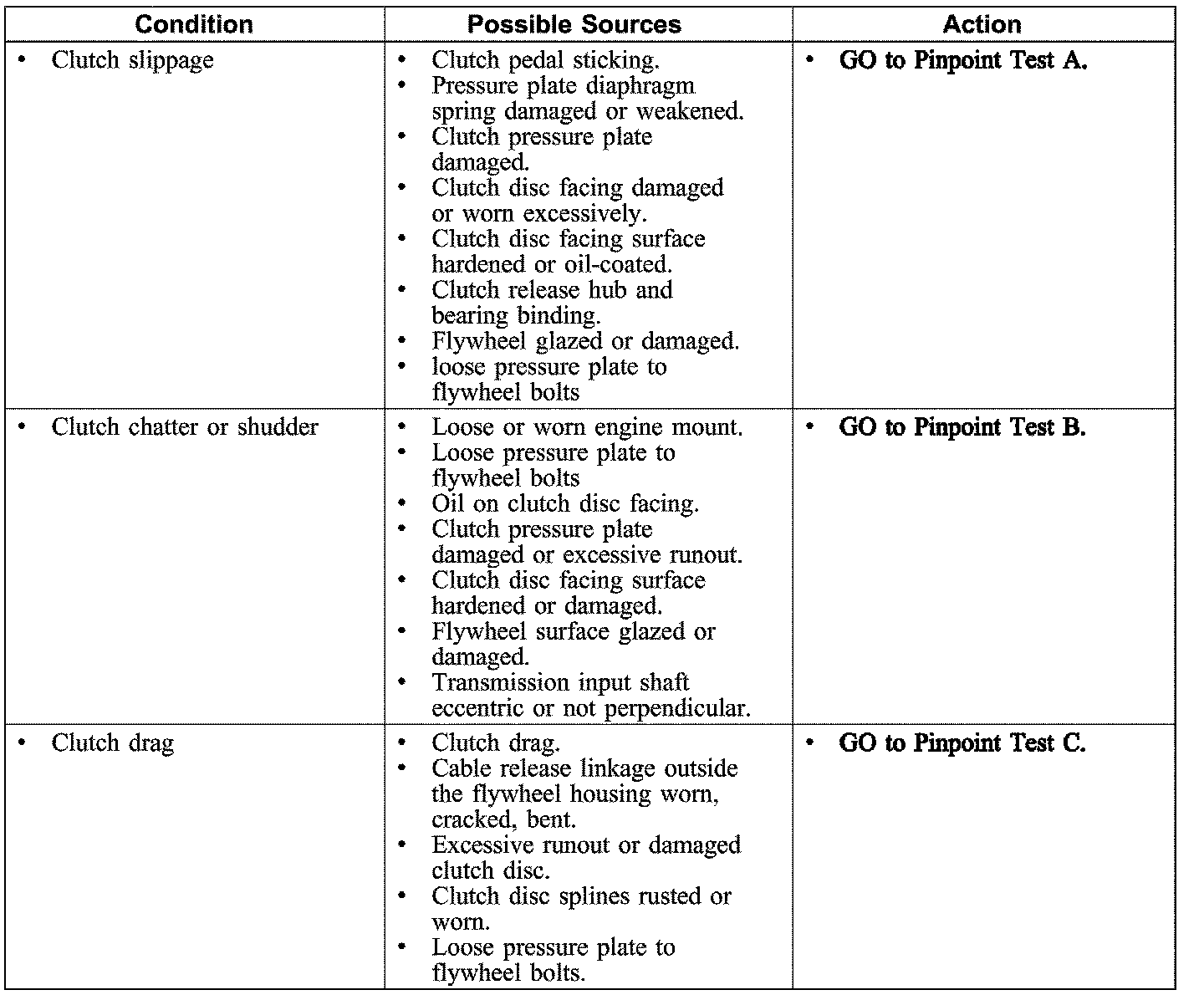

Symptom Chart Part 1 Of 6:



Symptom Chart Part 2 Of 6:



Symptom Chart Part 3 Of 6:



Symptom Chart Part 4 Of 6:



Symptom Chart Part 5 Of 6:



Part 6 Of 6:
