Cruise Control Servo Cable: Service and Repair

ACTUATOR CABLE - SPEED CONTROL

REMOVAL

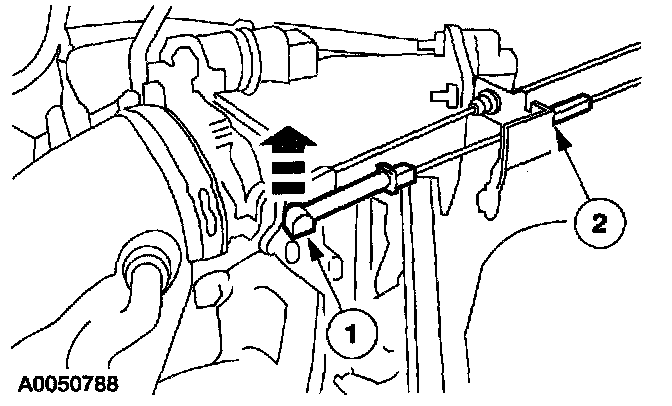

1. Remove the speed control actuator cable end from the throttle body.
1 Lift the speed control cable from the throttle nailhead.
2 Release the speed control cable from the throttle bracket.

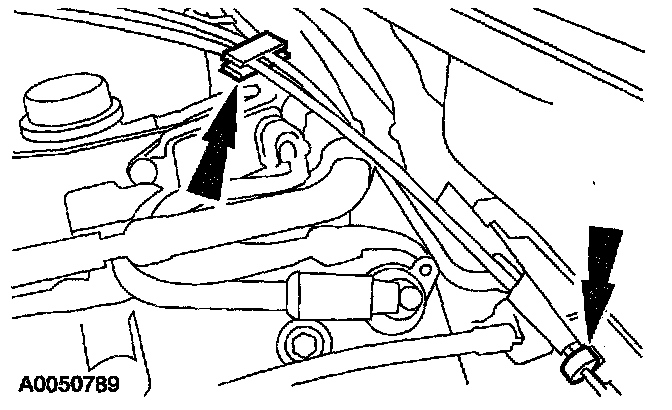

2. Remove the speed control cable from the retaining clips.
3. Remove the LH front wheel and tire assembly.

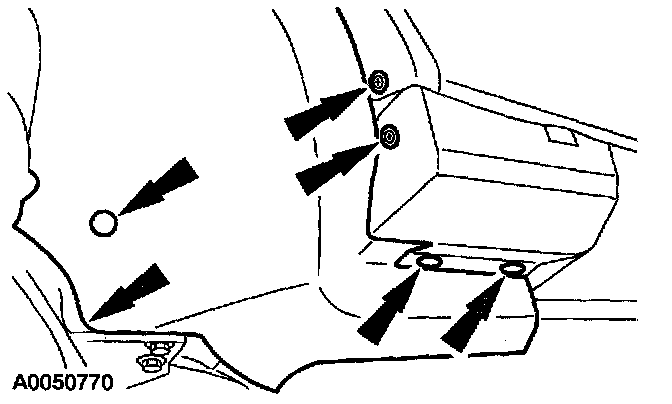

4. Position aside the LH front splash shield.
- Remove the pin-type retainers.
- Remove the screws.

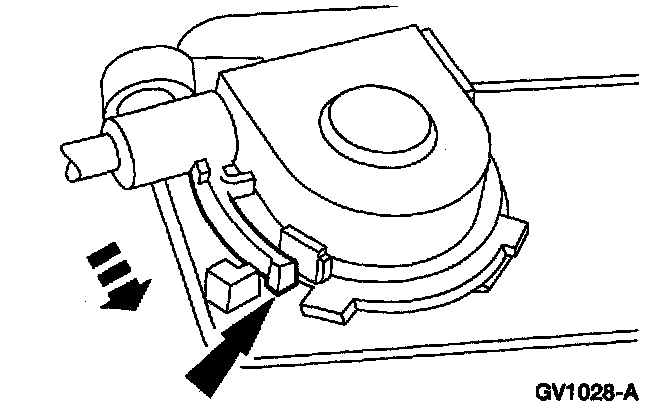

5. Depress the locking tab and rotate the speed control actuator cable cap to remove.

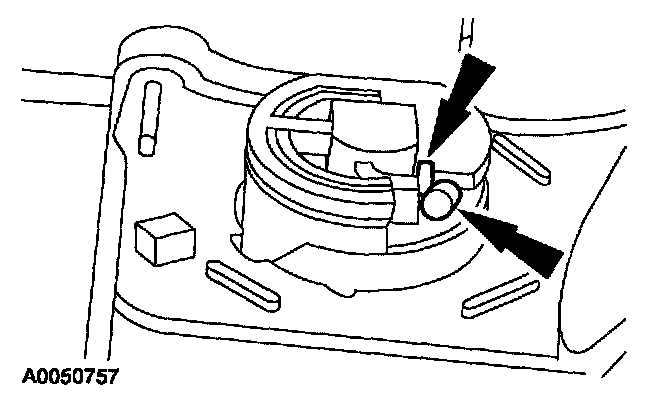

6. Gently push in the retaining spring while disconnecting the speed control actuator cable from the speed control actuator pulley.

INSTALLATION
1. To install, reverse the removal procedure.
