Cruise Control Switch: Service and Repair

SWITCH - SPEED CONTROL ACTUATOR

REMOVAL
1. Remove the steering wheel.

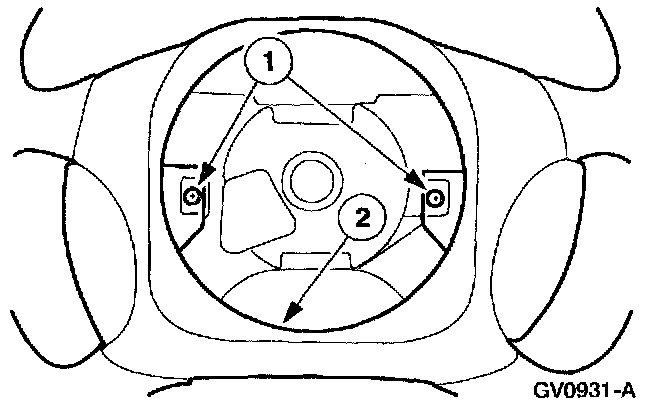

2. Remove the steering wheel rear cover.
1 Remove the screws.
2 Remove the steering wheel rear cover.

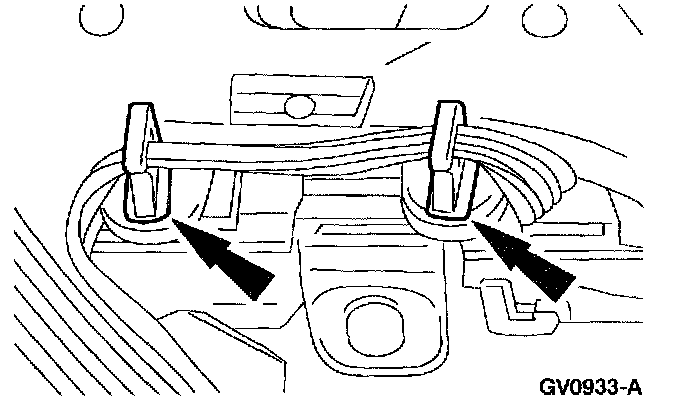

3. Remove the ribbon harness from the clips.

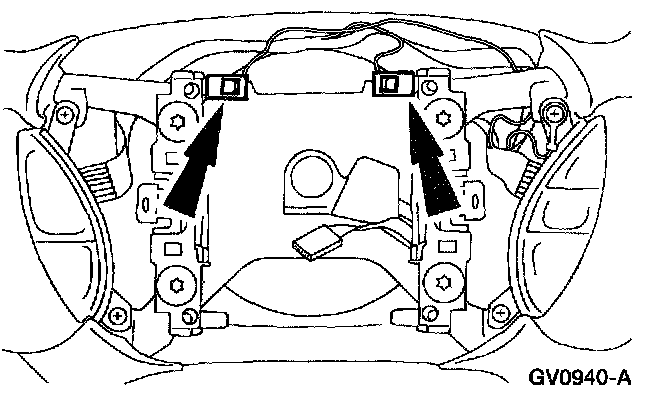

4. Remove the horn contact electrical connectors.







5. Remove the right side horn contact.
1 Remove the screws.
2 Remove the contact.

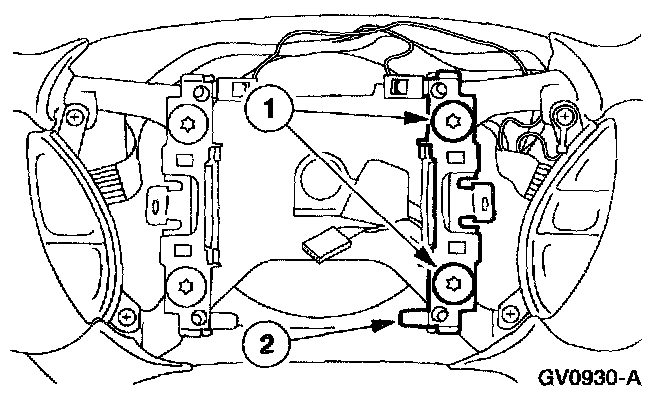

6. Remove the speed control actuator switch assembly.
1 Remove the screws.
2 Remove the speed control actuator switch assembly.

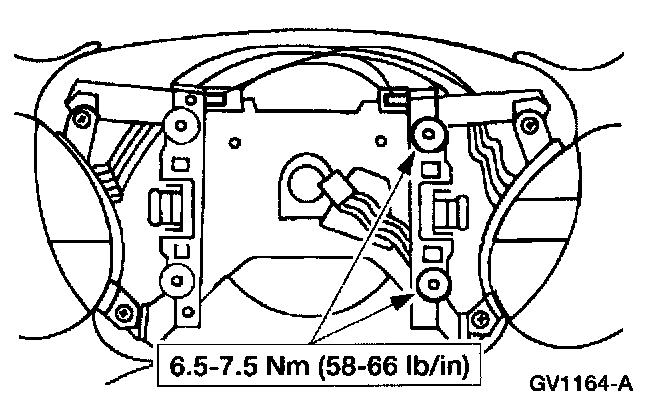

INSTALLATION












1. To install, reverse the removal procedure.
