Mustang V8-4.6L SC VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

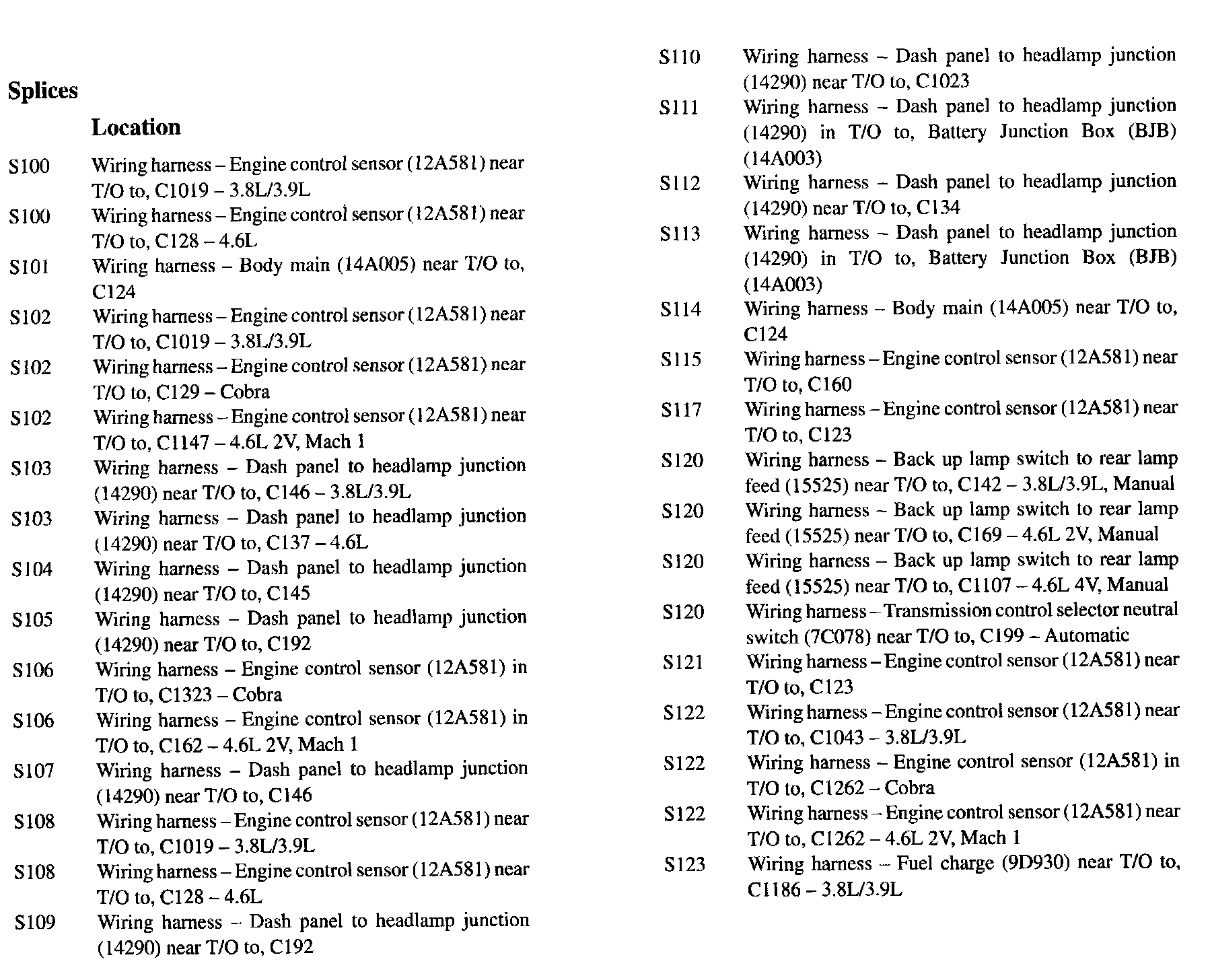

S100-S123:

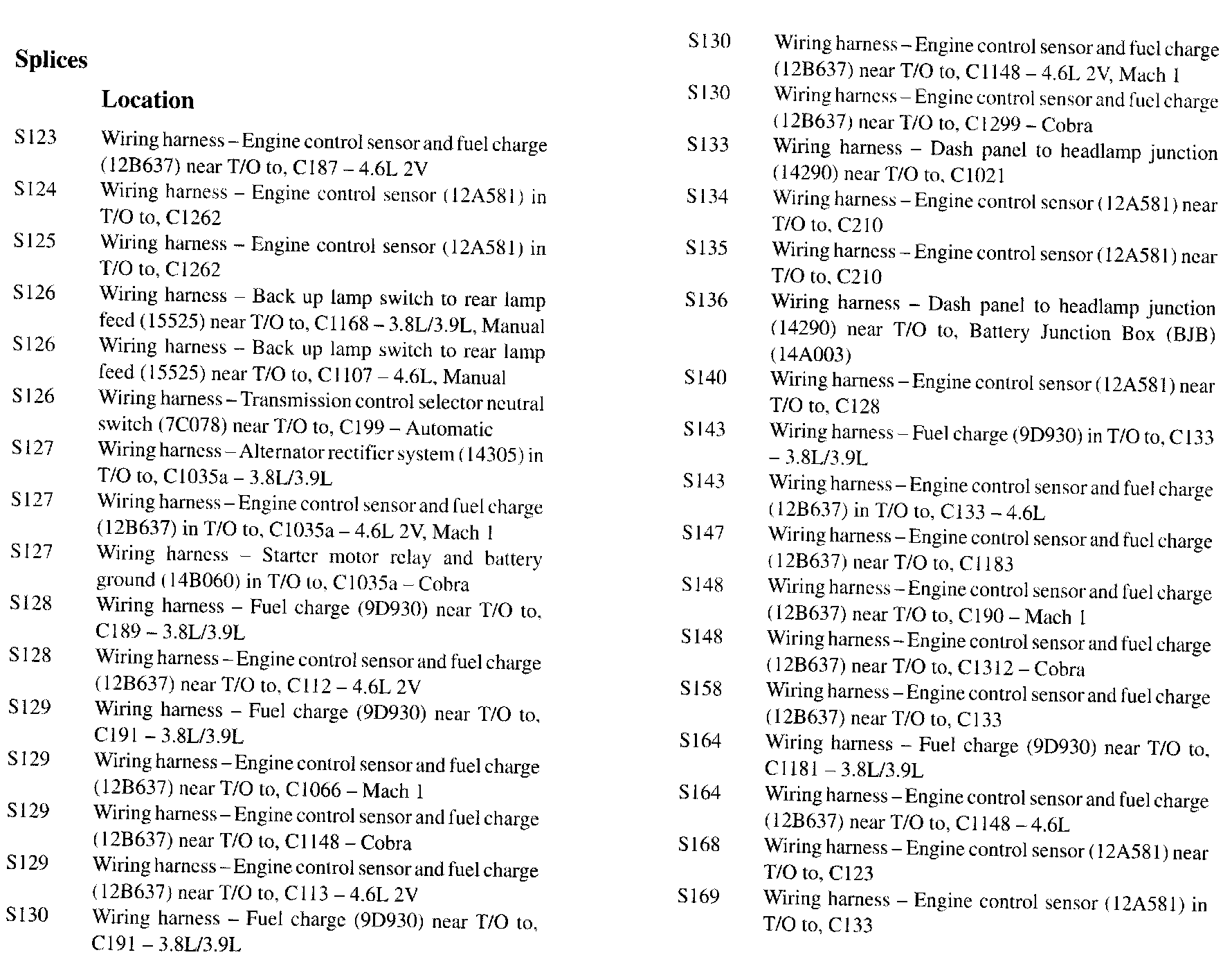

S123-S169:
S170-S269:

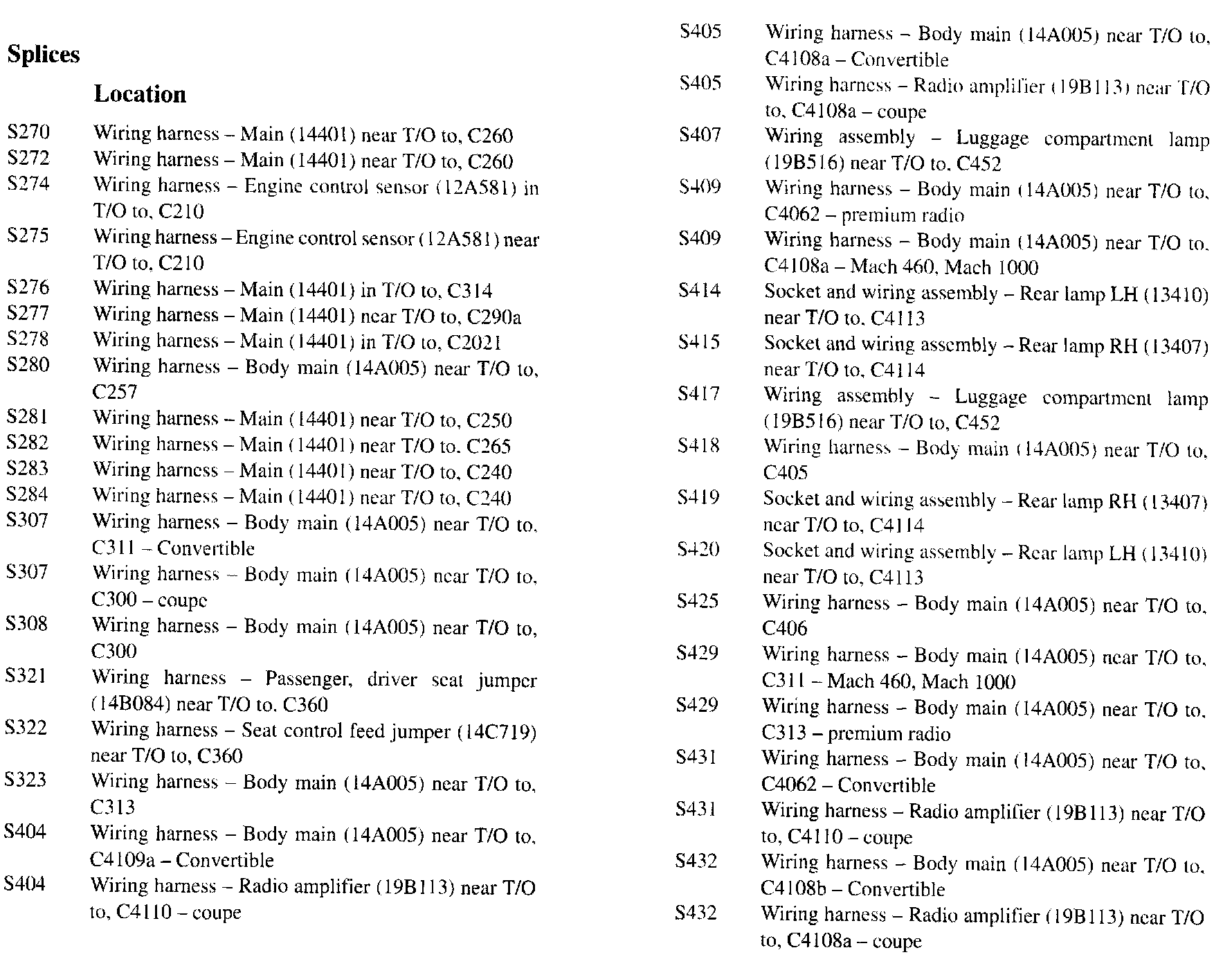

S270-S432:
S433-S901:

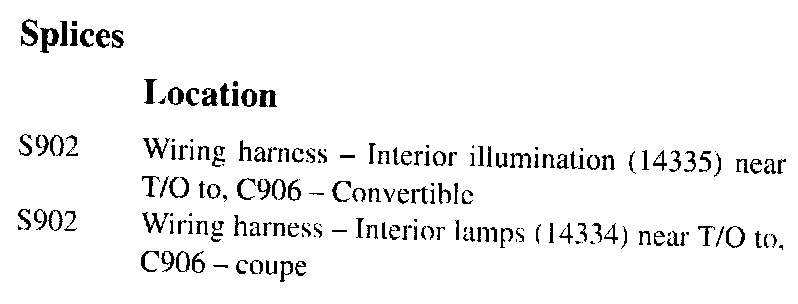

S902:
