Blower Motor Resistor: Service and Repair

RESISTOR

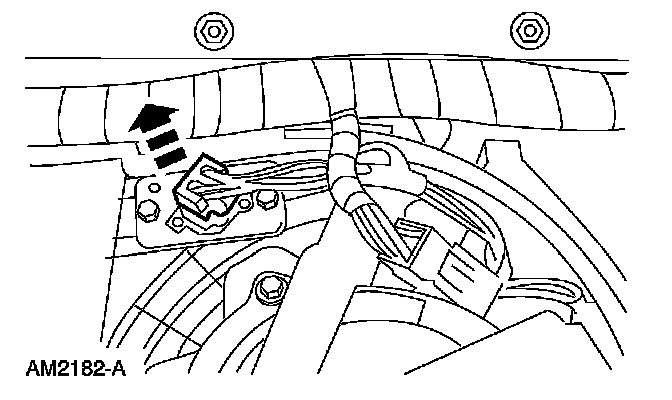

REMOVAL







1. Disconnect the connector.







2. Remove the screws.







3. Remove the resistor.

INSTALLATION
1. To install, reverse the removal procedure.
