Instrument Cluster

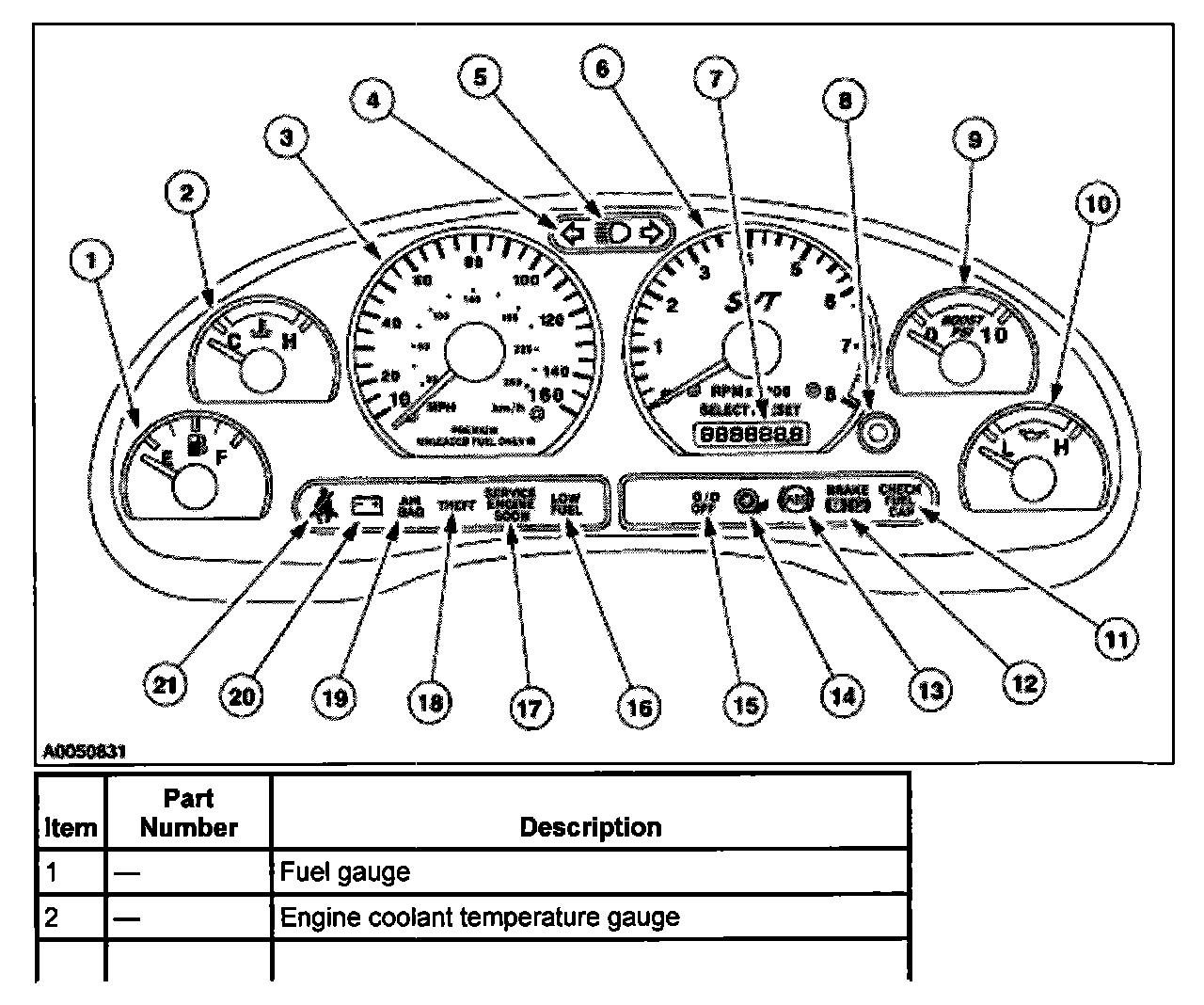

Instrument Cluster-Cobra:






Instrument Cluster-Cobra:

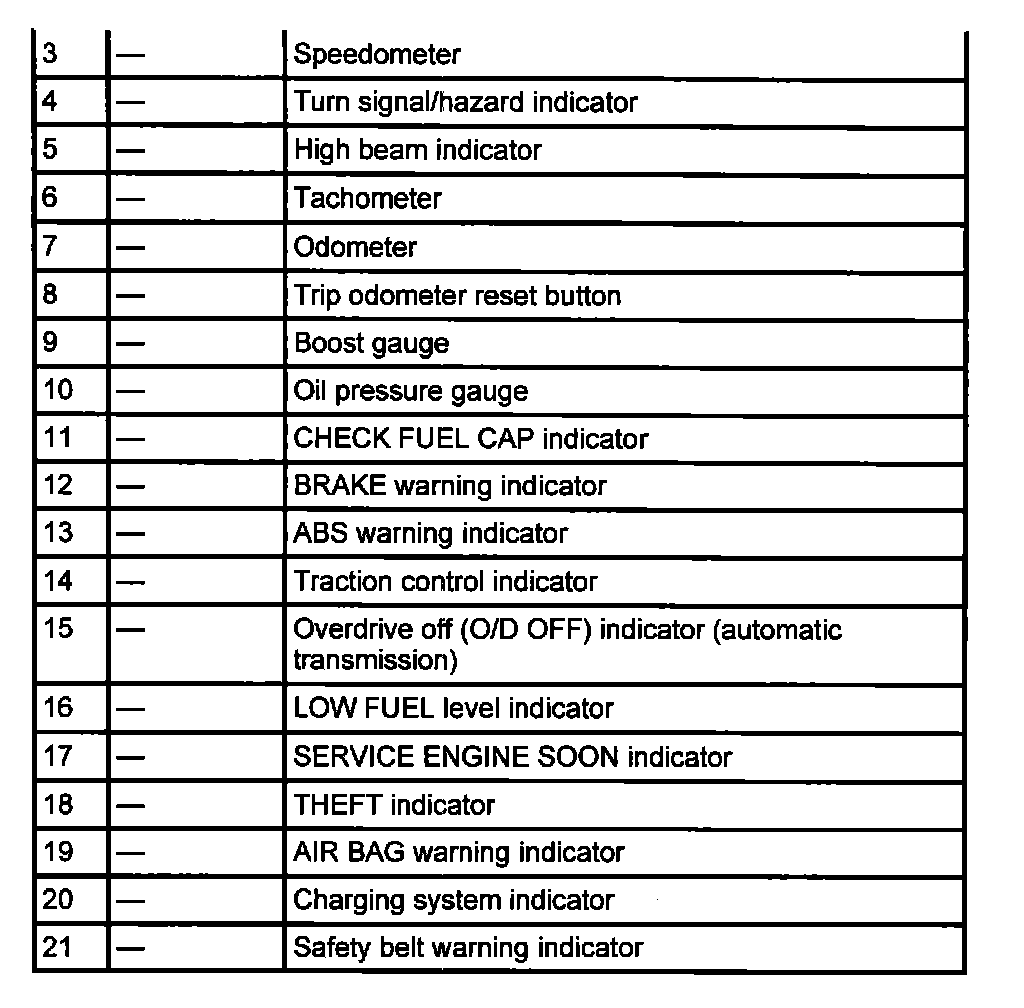

Instrument Cluster-Cobra
