Windshield Washer Reservoir: Service and Repair

RESERVOIR

REMOVAL
1. Remove the LF wheel and tire.
2. Position the front portion of the LF inner splash shield aside.







3. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before removal.

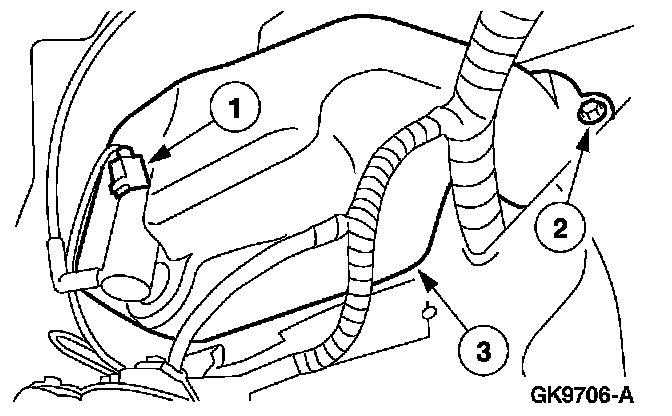

Position windshield washer reservoir aside.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Position windshield washer reservoir aside.







4. Remove the washer fluid reservoir.
- Disconnect the windshield washer pump hose.

INSTALLATION







1. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

CAUTION: Do not operate the windshield washer pump prior to filling the windshield reservoir.

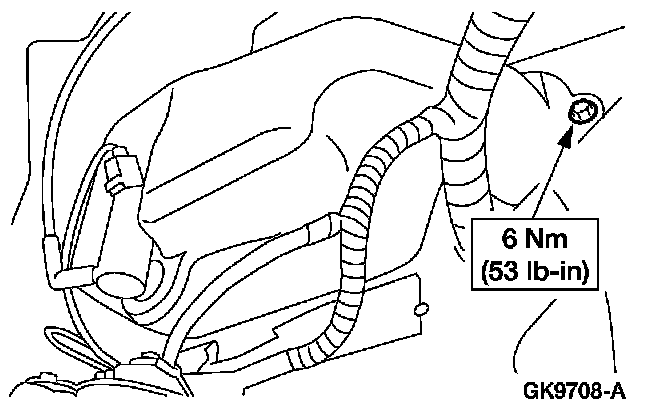

To install, reverse the removal procedure.
- Fill the windshield washer reservoir.
