Wiper Arm: Service and Repair

PIVOT ARM

REMOVAL







1. NOTE: New windshield wiper pivot arms need to be installed as an assembly.

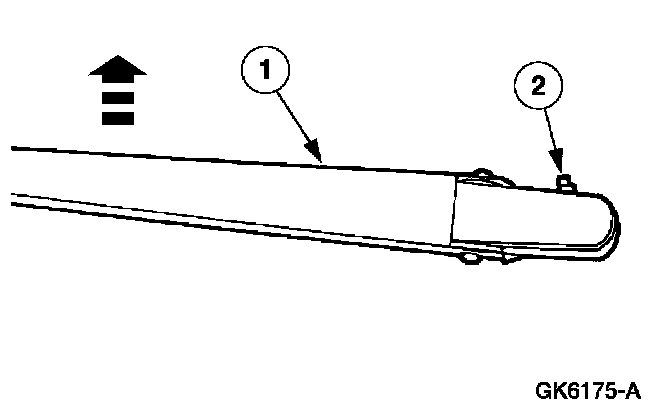

Remove the pivot arm.
1 Pull up on the pivot arm.
2 Pull out on the retainer tab and remove the pivot arm.

INSTALLATION
1. To install, reverse the removal procedure.
- If necessary, adjust the wiper pivot arms.
