Initial Inspection and Diagnostic Overview
INSPECTION AND VERIFICATION1. Verify the customer concern.

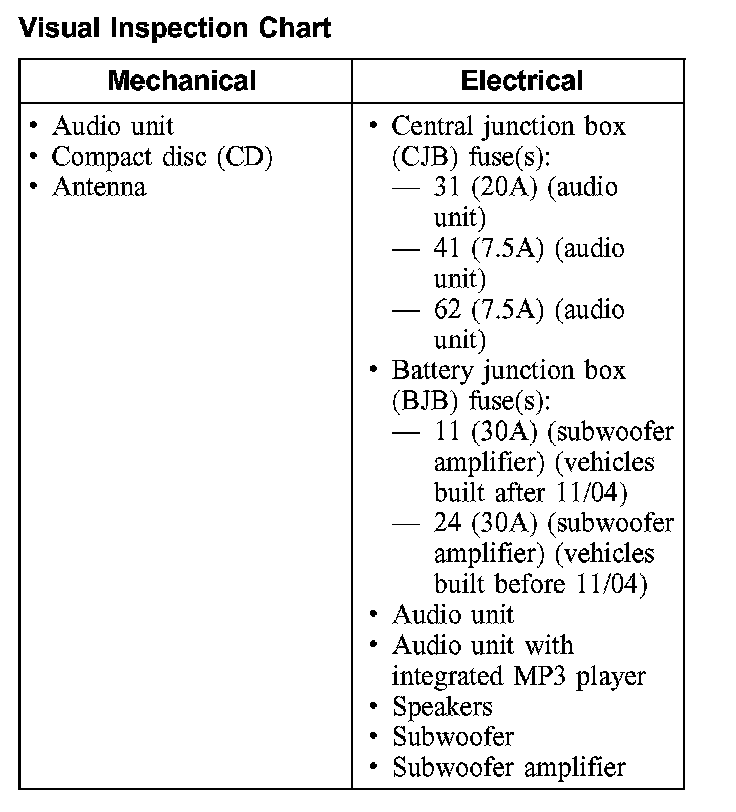

Visual Inspection Chart:
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
CD Error Codes - Vehicles With 6006 Or 9006 Audio Unit (Part 1):

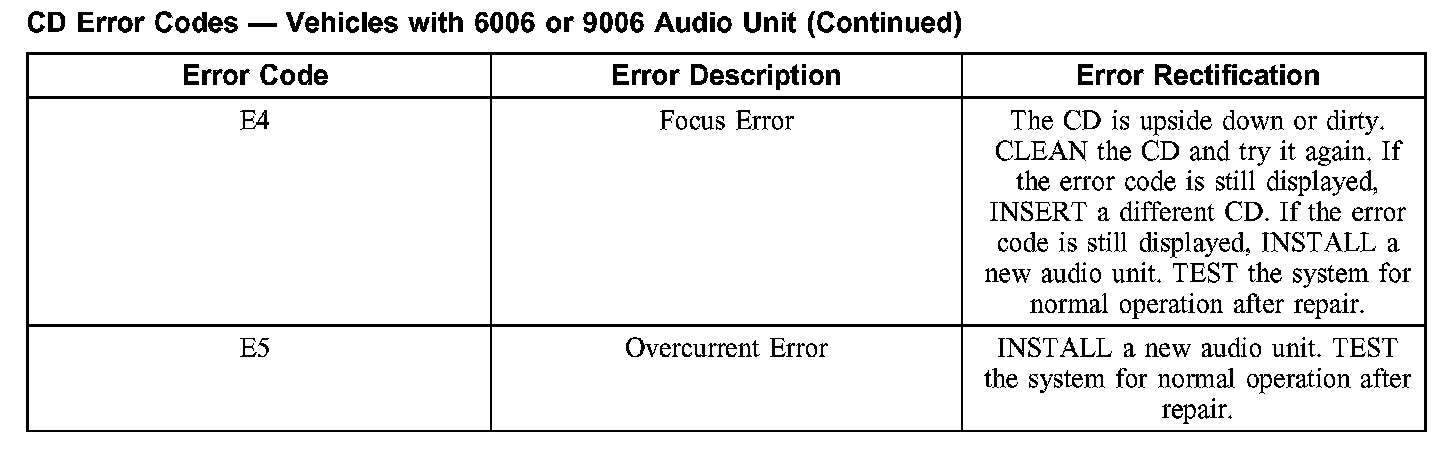

CD Error Codes - Vehicles With 6006 Or 9006 Audio Unit (Part 2):
4. If an obvious cause is not found, codes may be shown in the audio unit display (vehicles with 6006 or 9006 audio unit only). Check the audio unit display for error codes before proceeding to the Symptom Chart. Vehicles without 6006 or 9006 audio unit, GO to Symptom Chart. Symptom Related Diagnostic Procedures
