Vehicle Identification Number

IDENTIFICATION CODES

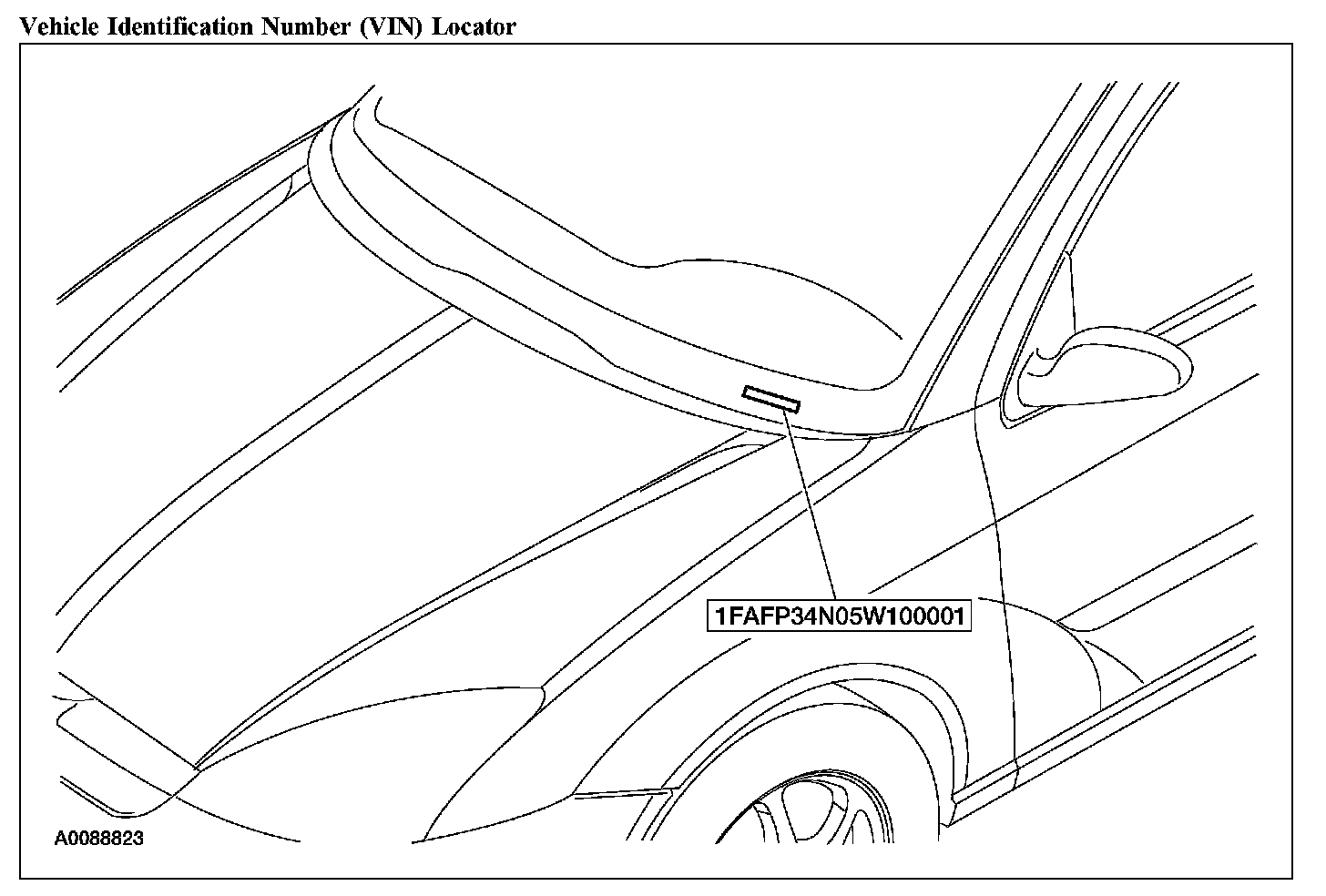

Vehicle Identification Number (VIN) Locator:

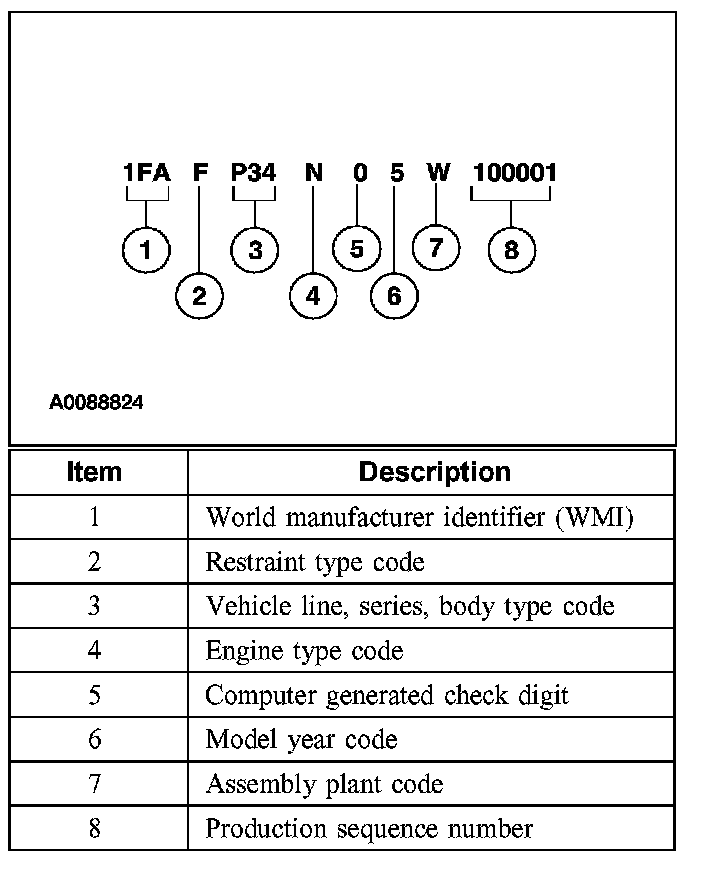

The vehicle identification number (VIN) is a seventeen-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label.

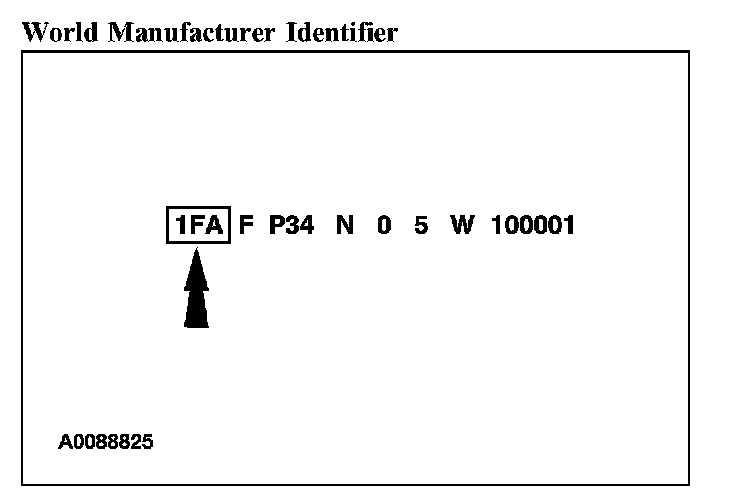

World Manufacturer Identifier:

The first three vehicle identification number (VIN) positions are the world manufacturer code.
- 1FA - Ford Motor Company, USA, passenger car
- 3FA - Ford Motor Company, Mexico, passenger car

Restraint Type:

The fourth VIN position is the vehicle restraint type code.
- F - Active safety belts - all positions, driver and front passenger air bags
- H - Active safety belts - all positions, driver and front passenger air bags with driver and front passenger side impact air bags

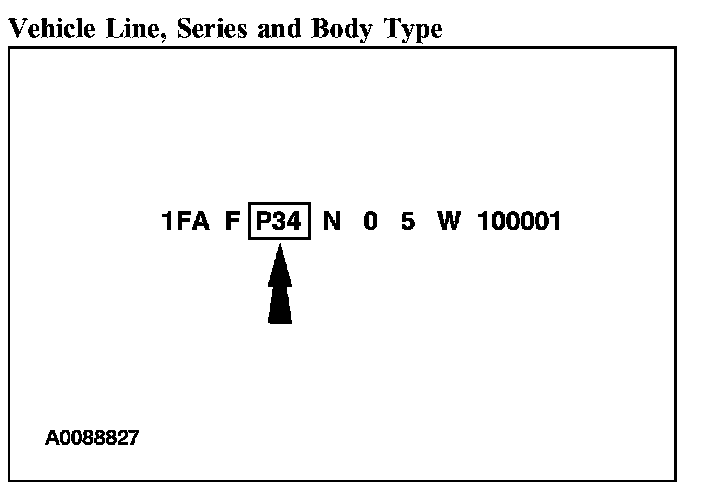

Vehicle Line, Series And Body Type:

Positions five through seven indicate vehicle line, series and body type.
- P31 - Three-door sedan - ZX3
- P34 - Four-door sedan - SE
- P36 - Four-door station wagon - SE or ZTW
- P37 - Five-door sedan - ZX5
- P38 - Four-door sedan - ZTS

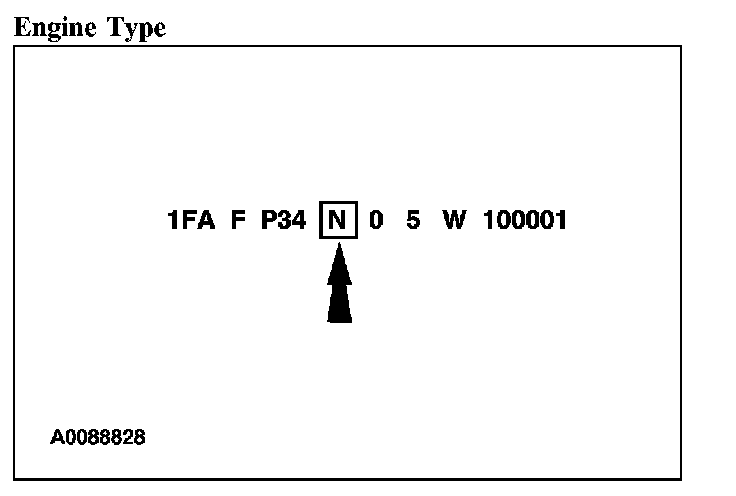

Engine Type:

The eighth VIN position identifies the engine displacement and number of cylinders.
- N - DURATEC - 2.0L, DOHC, four-cylinder
- Z - 2.3L (4V), DOHC, EFI, four-cylinder

Check Digit:

The ninth VIN position is a government-assigned, computer-generated check digit.

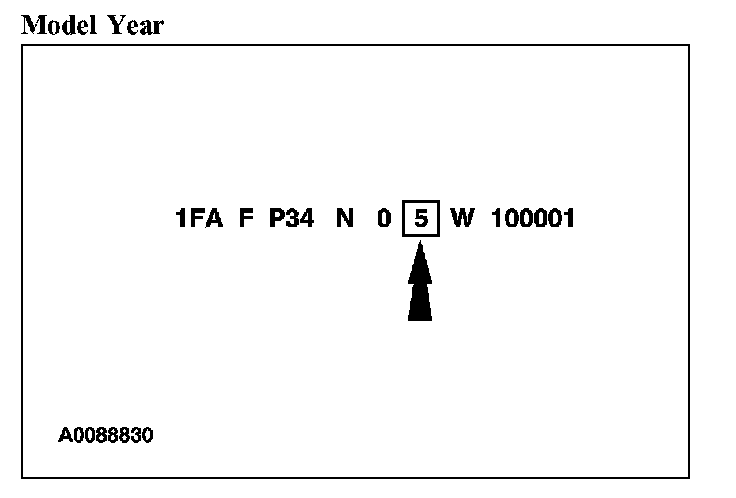

Model Year:

The tenth VIN position is the model year code.
- 5 - 2005

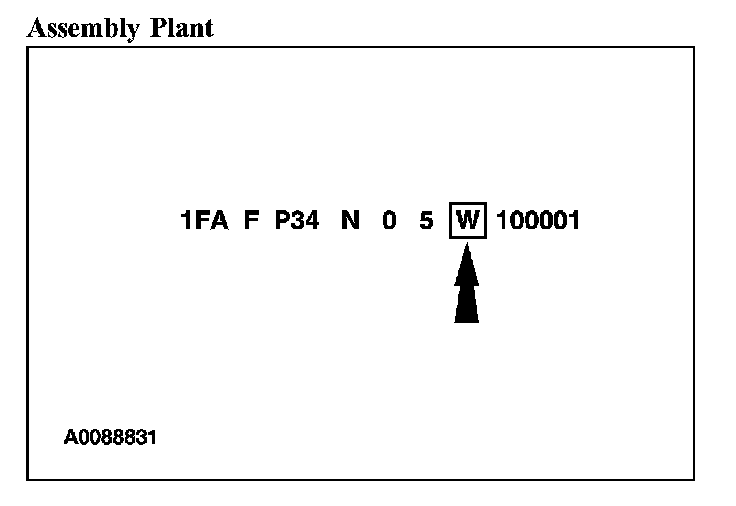

Assembly Plant:

The eleventh VIN position is the assembly plant code.
- R - Hermosillo - Hermosillo, Mexico
- W - Wayne - Wayne, Michigan

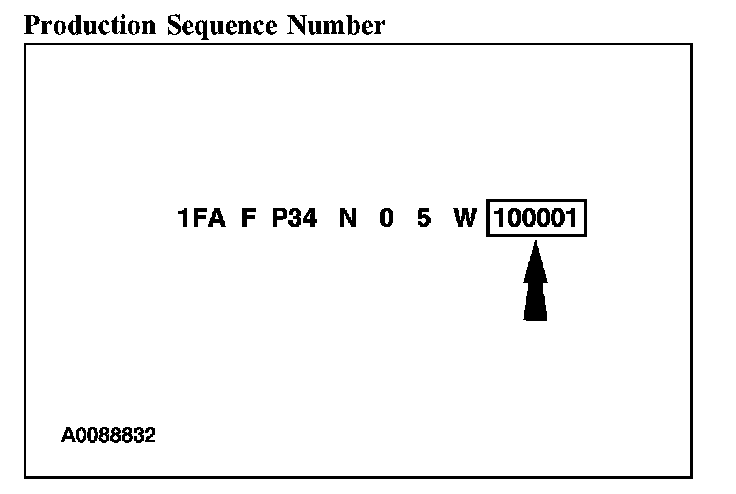

Production Sequence Number:

The last six VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number.
- 100001 - 599999 - Ford Motor Company vehicle
