Trunk / Liftgate: Adjustments

LIFTGATE ALIGNMENT

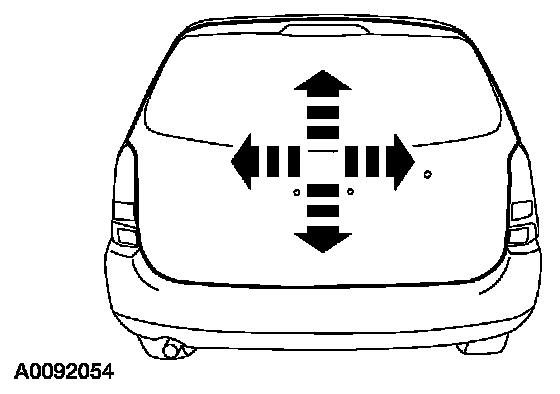

NOTE: The liftgate should be adjusted for even and parallel fit with the liftgate opening and the surrounding panels.







1. Loosen the hinge-to-liftgate bolts just enough to permit movement of the liftgate.







2. To adjust the liftgate alignment, shift or shim the hinge as necessary.

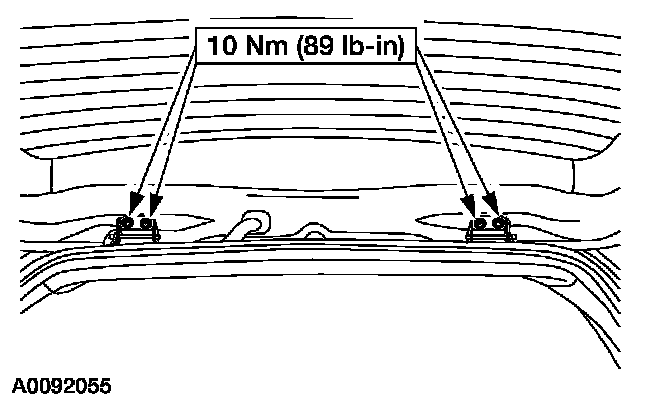

3. Tighten the hinge-to-liftgate bolts.
