Exterior Mirror

EXTERIOR MIRROR

Removal and Installation






1. Remove the trim panel.
1 Release the clip.
2 Release the locating tabs.

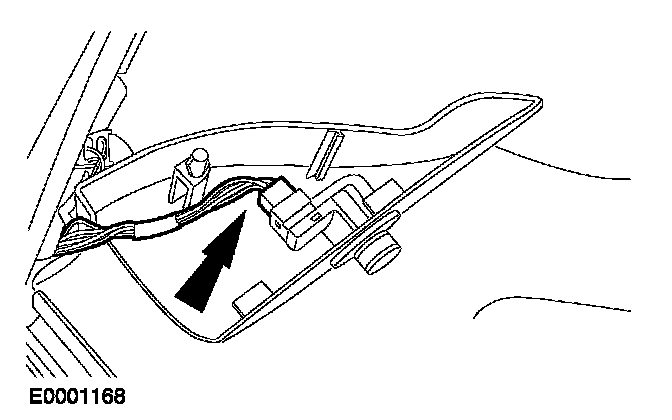

2. Remove the trim panel.
- Disconnect the exterior mirror control switch electrical connector.

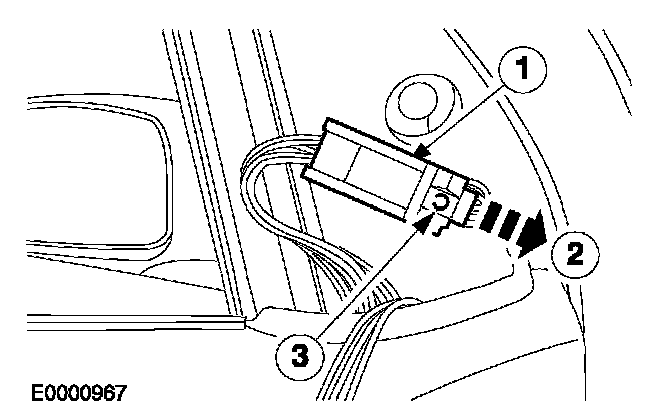

3. Disconnect the exterior mirror electrical connector.
1 Release the clip.
2 Release the electrical connector.
3 Disconnect the electrical connector.

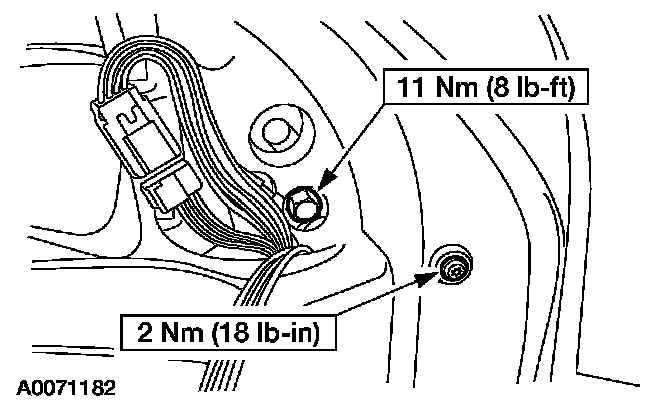

4. Remove the exterior mirror.
- Remove the bolt.
- If equipped, remove the screw.

5. To install, reverse the removal procedure.
